Royal Elm Designer Table U-7200C
Assembly Instructions

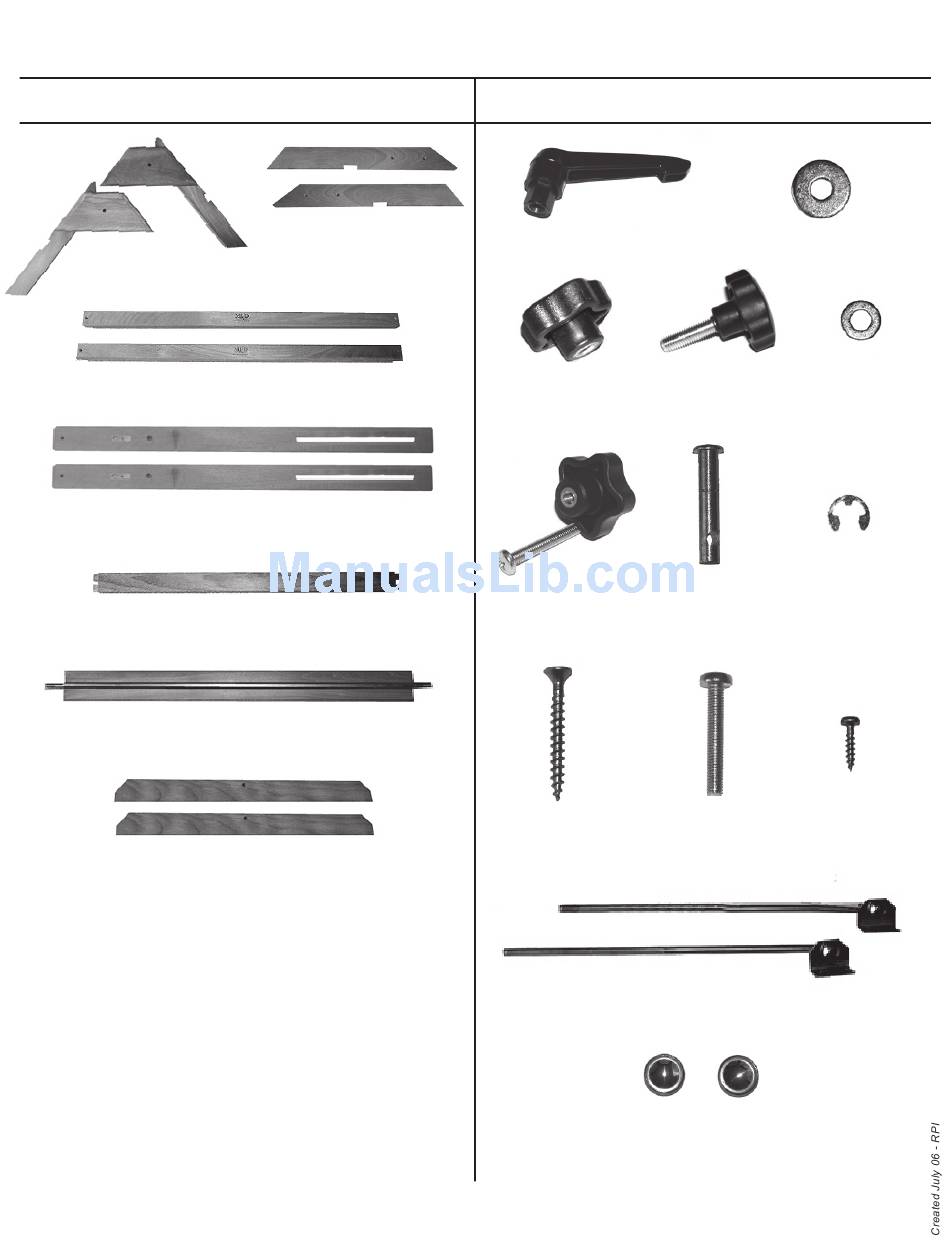

Contents of Carton:
Contents of Parts Bag:
[2] Left & Right Legs
[1] Threaded Lever [AA]
[1] Large Washer for Lever
for A-Base [B]
[BB]
[2] A-Base Ends [A]
[2] A-Base Cross Supports [C]
[1] Female Knob
[2] Male Knob [DD]
[1] Washer for
[CC]
Female Knob
[EE]
[2] Chanelled Side Supports [D]
[2] Female Knobs
[2] Large Pin with
[2] "C" Washers for
with bolt & washer
hole [EE]
Large Pins
[1] Upper Cross ESupport [E]
included [FF]
[FF]
[1] Chanelled Cross Member with Threaded Rod [F]
[12] Long Wood
[2] 1-3/4" Bolts
[4] Small Wood
Screws [GG]
[HH]
Screws [II]
[2] Drawing Top Braces [G]
[2] Metal Tilt Adjustment Rods [JJ]
[2] Metal Pin End Caps for Tilt Rods [KK]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-7200C and is the answer not in the manual?

Questions and answers

David PR Bailin
April 2, 2025

How do you adjust the orange clips in an Elmwood cabinet drawer? in order to adjust the soft close

Summary of Contents for Elmwood U-7200C

  • Page 1 Royal Elm Designer Table U-7200C Assembly Instructions Contents of Carton: Contents of Parts Bag: [2] Left & Right Legs [1] Threaded Lever [AA] [1] Large Washer for Lever for A-Base [B] [BB] [2] A-Base Ends [A] [2] A-Base Cross Supports [C]...
  • Page 2 Assembly Instructions: STEP 1] Assembling A-Base(s) STEP 3] Attaching Channelled Side Take the A-Base end [A] as shown below and the Left Leg Take A-Base end that has the two supports attached and [B] for the A-Base. place on flat surface. Position Channelled Side Support [D] Long Wood into middle section of A-Base.
  • Page 3 Assembly Instructions continued: STEP 5] Securing Lower Support & Rod STEP 7] Inserting Pin into Side Support Close-up photo of Lever and large Washer. STEP 6] Attaching Upper Cross Support Close-up photo of 1-3/4” Bolt attachment. After Steps 1 - 6. Base should look like photo to right.
  • Page 4 Assembly Instructions continued: STEP 10] Attaching Top Braces Before securing base of table to Drawing Board top, you must center the base to the top. When attaching the [2] Drawing Top Braces [G], position the Rear Edge of Top drawing board brace in the position shown here: Attach to the inside of the Side Support [D] using the [2] remaining knobs, washers and bolts [F].
