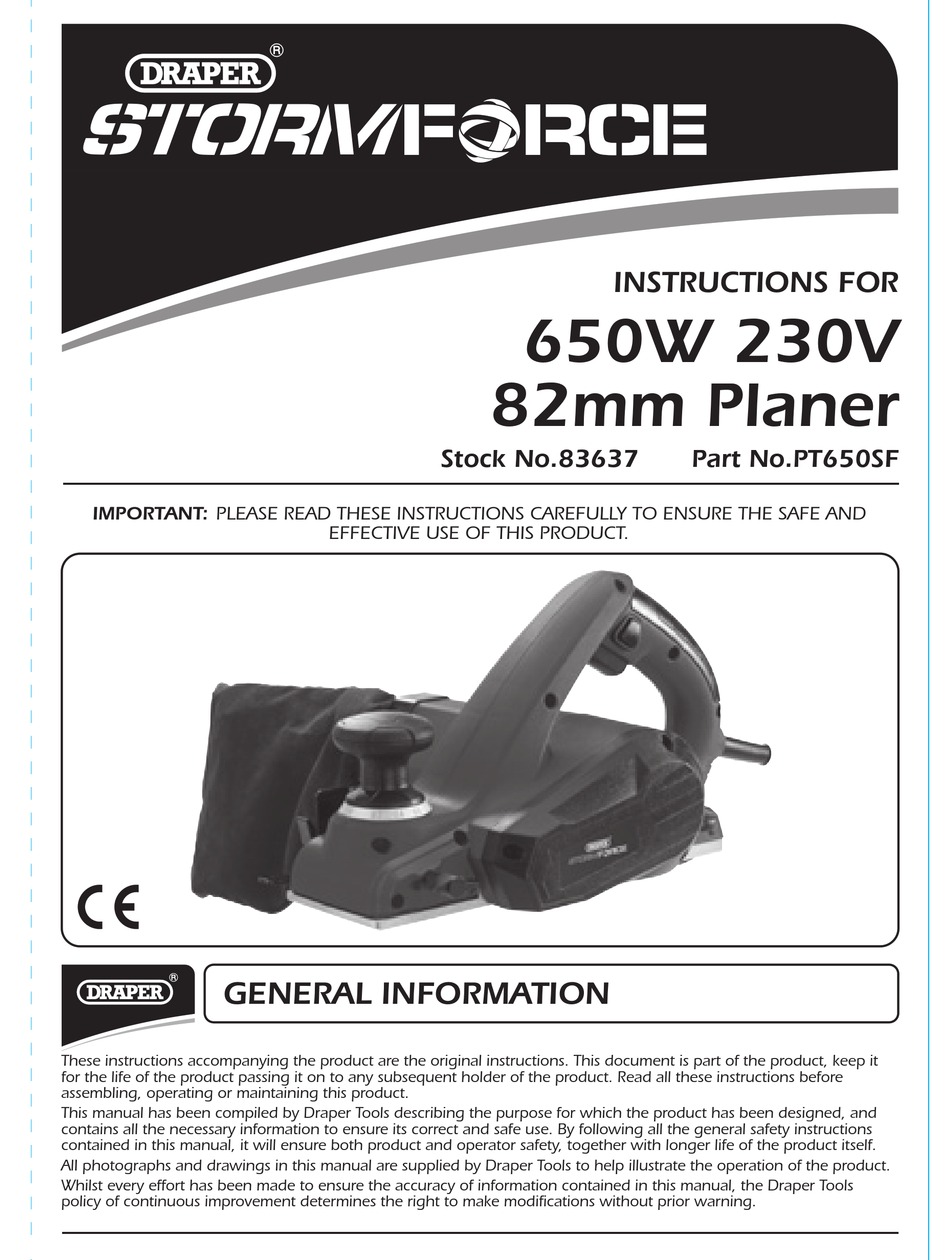

INSTRUCTIONS FOR
650W 230V
82mm Planer
Stock No.83637
Part No.PT650SF
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper Storm Force PT650SF
Summary of Contents for Draper Storm Force PT650SF
-
Page 1: General Information
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product. -
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ...............2 COPYRIGHT NOTICE....................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ..................5 HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS ................6 - 7 ADDITIONAL SAFETY FOR PLANERS ..............7 CONNECTION TO THE POWER SUPPLY..............8 TECHNICAL DESCRIPTION... -
Page 4: Guarantee 3.1 Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
INTRODUCTION 4.1 SCOPE This planer is suitable for planing doors, smoothing off rough edges and trimming/shaping timber. It is intended for domestic and light commercial use only. Any other application is considered misuse. 4.2 SPECIFICATION Stock no ........................... 83637 Part no .......................... PT650SF Motor: Rated voltage ...................... -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS General Power Tools Safety Warnings Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... -
Page 7: Additional Safety For Planers
HEALTH & SAFETY INFORMATION g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards. 4) Power Tool Use And Care a) Do not force the power tool. -
Page 8: Connection To The Power Supply
HEALTH & SAFETY INFORMATION CONNECTION TO THE POWER SUPPLY Make sure the power supply information on the machine’s rating plate are compatible with the power supply you intend to connect it to. This product comes supplied with a UK standard 3 pin plug fitted. It is designed for connection to a domestic power supply rated at 230V AC. -
Page 9: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Trigger switch. Dust outlet port. Trigger release button. Blade drum. Hand grip. Chamfer guide 'V' groove. Power cable. Rebating depth guide attachment knob. Rear sole plate. Blade spanner on-board storage. Drive belt cover. Parallel guide attachment knob. Front sole plate. -
Page 10: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the planer. -
Page 11: Setting Up The Planer
SETTING UP THE PLANER NOTE: Remove the plug from the socket before FIG.1 carrying out adjustment, servicing or maintenance. 8.1 SETTING THE PLANER – FIG. 1 Before initial startup and at regular intervals, check the blade assembly is secure and adjusted correctly. To adjust the depth of cut between 0 and 2.0mm rotate the depth regulation knob accordingly. -
Page 12: Operating The Planer
OPERATING THE PLANER 9.1 STARTING THE PLANER – FIG. 5 FIG.5 The on/off switch is fitted with a safety button so that it is not possible to start the planer by accident. To start the planer, press the safety button then depress the on/off switch IMPORTANT: Before using the machine on any work or... -
Page 13: Direction Of Advancement
The functions and use of this planer are those exclusively indicated in this manual. Wait for complete run-down before putting the tool aside. Replacement blades are available from your local Draper stockist. Important: The blades must always be reversed or replaced as a pair. -
Page 14: Maintenance
10. MAINTENANCE 10.1 BLADE REPLACEMENT/ADJUSTMENT – FIG.11 FIGS. 11 – 14 Note: only use sharp blades. Switch off the power supply and disconnect the mains lead before carrying out any maintenance operations. Warning! The blades are extremely sharp, so care must be taken at all times. -
Page 15: Drive Belt Replacement
10. MAINTENANCE 10.2 DRIVE BELT REPLACEMENT – FIG. 15 FIG.15 Switch off the power supply and disconnect the mains lead before carrying out any maintenance operations. To replace the drive belt, remove cover to access the belt and pulleys. Simply replace the belt and refit the cover. -
Page 16: Troubleshooting
1. Replace belt††. belt. Machine does not 1. Blade adjustment 1. Adjust blades. cut to the correct wrong. depth. † Replacement blades can be obtained from your local Draper stockist. †† Replacement drive belts can be obtained from your local Draper stockist. -
Page 17: Explanation Of Symbols
12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Warning! Wear dust mask. Warning! Read the instruction manual Warning! Warning! Wear suitable eye/face Wear ear defenders. protection. WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Class II construction (Double insulated). -
Page 18: Disposal
13. DISPOSAL 13.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 19 NOTES...
- Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Help Line for details of an agent in your local area. YOUR DRAPER STOCKIST RDCH0816...
