Summary of Contents for IgniteNet MetroLinqTM

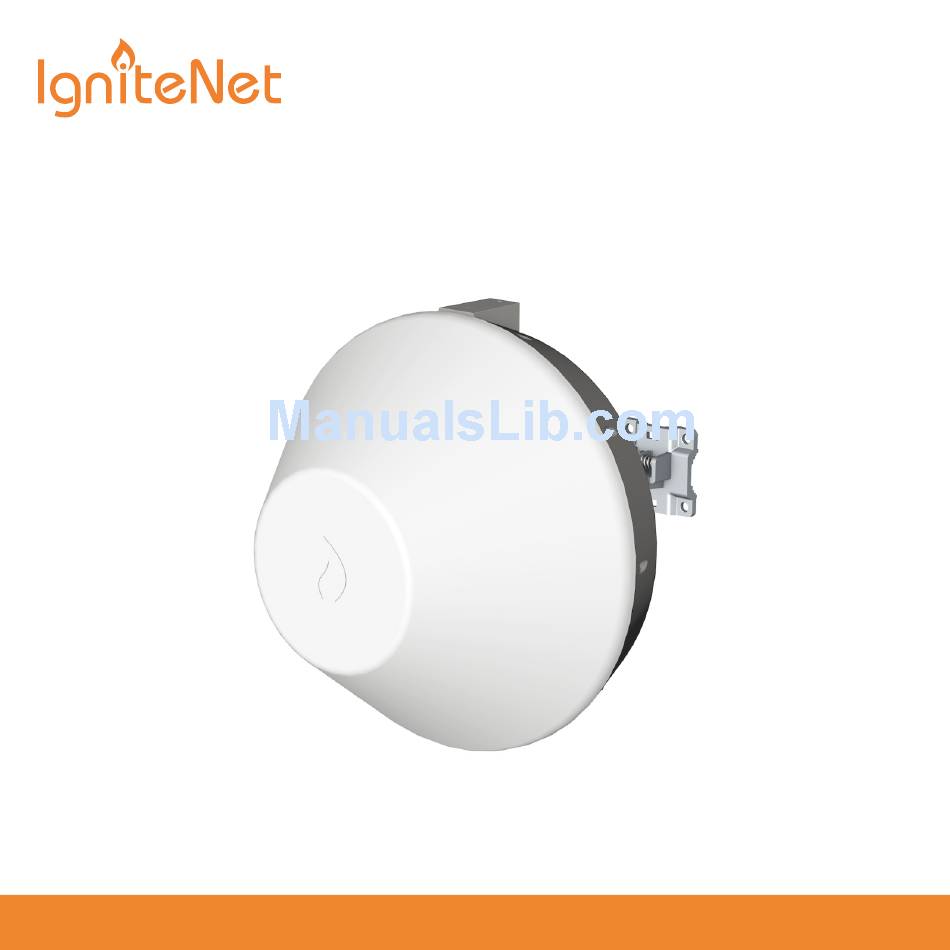

- Page 1 Welcome to MetroLinq Interference-Free Gigabit Wireless ignitenet.com...
- Page 2 MetroLinq • Bracket Kit • POE Power Supply • Power Cable Tools/Items Required • 13 mm Socket Wrench • Flat-Head Screwdriver • Ethernet Cables • (Optional) Alignment Scope ICC-SCOPE-9x50 For helpful training and user-case information, please go to ignitenet.com/support ignitenet.com...
- Page 3 (25mm - 75mm pole diameter). Choose what is best for your location and select hardware accordingly. 1. Ensure all four position-locking bolts are tight before installing. 2. Install the bracket onto MetroLinq™ using four M8 bolts, lock washers, and flat washers. ignitenet.com...
- Page 4 MetroLinq™ WAN port (right-side RJ-45) to the POE port on the power supply. 2. Connect Ethernet cable from the “LAN” port on the power supply to your LAN device. 3. Connect the power cord to a nearby AC power source. ignitenet.com...
- Page 5 Alignment IgniteNet strongly recommends using the ICC-SCOPE-9x50 Alignment Scope for alignment. To install, place the scope on top of the MetroLinq™ housing and secure it with its thumb screw. Note: Do not adjust bolts A and B without first loosening 1 and 4 respectively.
- Page 6 192.168.1.20 Once configured, direct your web browser to 192.168.1.20 and log in. username: root password: admin123 2. After you have logged in, follow the steps in the Setup Wizard to configure the device for your network. For more configuration details and training, please go to ignitenet.com/support 150200001244A R01 ignitenet.com...
