Summary of Contents for Nora Smart
- Page 1 Smart Nora User Manual The world’s first smart, contact-free snoring solution. WWW.SMARTNORA.COM...
- Page 2 1. Smart Nora is a not a medical device. It is not designed or intended to diagnose or treat any medical conditions, and you should not use it for these purposes. Consult your doctor for prevention, diagnosis, and treatment of sleep disorders or other medical issues.

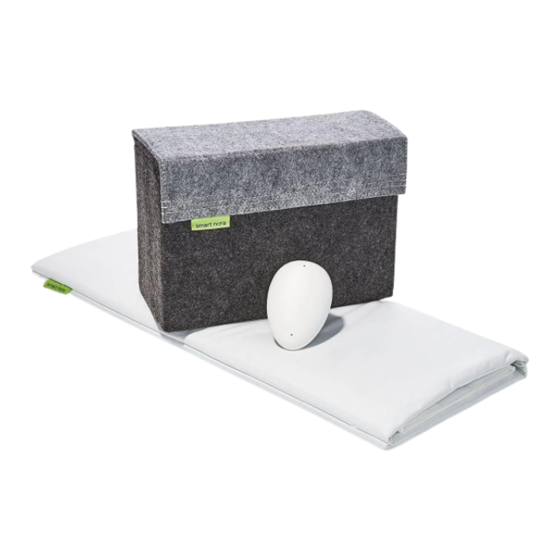

- Page 3 IN THE BOX PILLOW INSERT PEBBLE OVERHEAD MOUNT BASE PEBBLE BASE CHARGER CHARGER (USB) AIR TUBE...
- Page 4 PILLOW INSERT Inflates and deflates to gently move your head. PEBBLE Microphone listens for snoring. BASE Sits under your bed. 4 SMART NORA USER MANUAL...
- Page 5 HOW NORA WORKS Smart Nora is a contact-free snoring solution that’s designed to stop snoring without waking up the snorer or their partner. Nora’s Pebble, a microphone equipped with smart detection algorithms, listens for sounds of snoring. Upon detecting multiple snores,...
- Page 6 SET UP 1. CONNECT AIR TUBE 2. PLUG IN BASE Connect the air tube from Plug the Base into a power the Pillow Insert to the Base. source. Place the Portable Case under your bed. 6 SMART NORA USER MANUAL...
- Page 7 3. TURN BASE ON 4. CONNECT PEBBLE Press power button Connect the Pebble to the turn on the Base. Base with the USB cable. NOTE: The LED on the bottom of Pebble flashes green when charging, and stops flashing when battery is full. You can disconnect the Pebble when your set-up is complete.
- Page 8 Press on/off button pillow. to turn the Pebble on. A solid white light will appear on top of the Pebble. NOTE: If you see a blinking blue or red light, see page 19 for troubleshooting. 8 SMART NORA USER MANUAL...
- Page 9 7. PILLOW INSERT INFLATES 8. TEST BEFORE FIRST NIGHT As you speak or handle the Put your head on your pillow. Pebble, the pump might Press Bluetooth button activate. If not, press the You should feel a gentle rise Bluetooth button on the and fall (about 2 inches).
- Page 10 FIRST 2 WEEKS: WHAT TO EXPECT To experience best results, it is recommended to use Smart Nora for at least two weeks. The majority of users experience a reduction in their snoring after seven consecutive nights of using Nora. What Nora users say after a week: “Nora is practically...
- Page 11 Nights 1–3 You may feel Smart Nora’s slow As your partner becomes accustomed movement a few times during to using Smart Nora, you will notice a the night. reduction in intensity and frequency of their snoring. If you bedroom is ex-...
- Page 12 OPTIMAL EXPERIENCE USE A QUEEN-SIZE PILLOW Use a queen-size pillow (20x30inches - 50x70cm) to ensure the Pillow Insert is edge-to-edge under your pillow. 12 SMART NORA USER MANUAL...
- Page 13 • To start the delay, hold the on/off rises and falls. button for 1 second. White light on the Pebble will glow for 30 minutes. Nora will start working automatically after 30 minutes. • To end the delay, press the on/off button.
- Page 14 (4 inches) above your head on the wall • Make sure you have a clear, unob- or the headboard. This helps Nora hear structed view of the Pebble. the slightest snores, even when you face your partner.
- Page 15 WRONG +1 m • Do not place the Pebble higher than your head, or further than 1 meter. • Do not place the Pebble on a large table, glass surface or vibrating surface. • Do not place the Pebble close to a source of noise (i.e.
- Page 16 LOCK • Lock for travel purposes. • Unlock for regular use. BLUETOOTH BUTTON Press once to manually activate Nora. A white blinking light appears on Pebble and Base, and silent pump starts working.. 16 SMART NORA USER MANUAL...
- Page 17 You can personalize the sensitivity level of the Pebble according to the noise in your bedroom and your partner’s sensitivity to snoring. ULTIMATE SENSITIVITY Only use in a very quiet bedroom. Smart Nora will activate with a quiet snore. HIGH SENSITIVITY Use in a quiet bedroom. Smart Nora will activate with a snore.
- Page 18 Connect the air tube from the Insert to the Base. LED flashes green when battery is charging. Once the battery is fully charged, the flashing will stop. ON/OFF Click to turn the Base on or off. 18 SMART NORA USER MANUAL...
- Page 19 PEBBLE & BASE LIGHTS WHITE SOLID RED FLASHING Both Pebble and Base are on and ready. Pebble and/or Base are low on battery. Plug in the Base to power. Connect the Pebble to the Base using the USB cable. Charge both for at least 3 hours. WHITE GLOW Pebble is in delayed start mode and will start listening for snoring in 30 minutes.
- Page 20 . WHY NORA IS EFFECTIVE Nora detects early sounds of snoring and gently moves your head by activating a silent pump that inflates and deflates the padded insert sitting under your pillow.
- Page 21 The Pillow Insert and the felt bag cannot not use Smart Nora. Consult with your be washed or dry-cleaned. The Base doctor before using Smart Nora if you and the Pebble contain electronics;...
- Page 22 EU—DECLARATION OF CONFORMITY Hereby, Smart Nora Inc., declares that Abusive disposal of the product by the user involves Smart Nora snoring solution (Model: 001NORA) application of the administrative sanctions according to the meets the essential requirements and other relevant laws in force.
- Page 23 INDUSTRY CANADA This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interfer- ence that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
- Page 24 WWW.SMARTNORA.COM...
