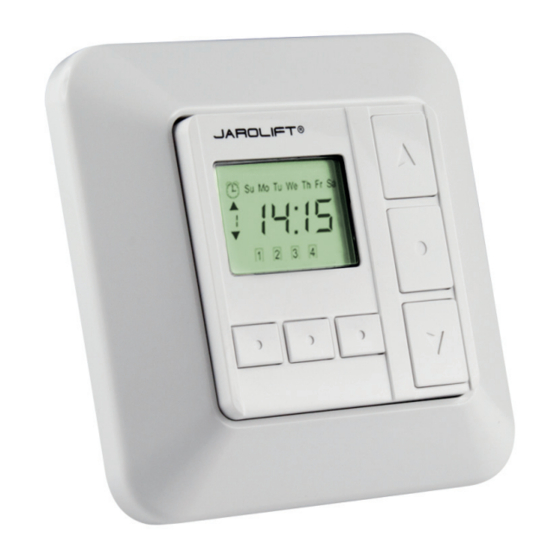

Sevenlogic comfort radio 1-channel radio receiver, timer
Hide thumbs Also See for TDRRT-01W:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Operating manual
Sevenlogic Comfort Radio
1-channel radio receiver, Timer
Type TDRRT- 01 W
General safety instructions ...........................................1
Electrical connection.......................................................2
Assembly .............................................................................3
Programming the radio transmitter ..........................4
Timer function programming ......................................6
Date & time .........................................................................7
Contact information ........................................................7
The radio receiver TDRRT 01W meets the requirements of the relevant European and national regulations.
2014/53/EU - Radio Equipment regulations
2014/30/EU - EMC regulations
2014/35/EU - Low voltage regulations
EN 301 489-1 V1.9.2:2011; EN 301 489-3 V1.6.1:2013;
EN 300 220-2 V2.4.1:2012; EN 60669-1:1999/A2:2008 ;
EN 60669-2-1:2004/A12:2010;
Schoenberger Germany Enterprises GmbH & Co. KG
Zechstraße 1-7
82069 Hohenschäftlarn - Germany
WEEE-Reg.-Nr. DE 41060608 for: JAROLIFT®
i s a regi s te re d b ran d o f S c h oe n b erg e r G er many Enter p r is es Gmb H & Co.KG, Zechst ra ße 1- 7, 82069 H ohensc häf tl a r n, G er many
An English manual can be downloaded at http://www.jarolift.de/en/manuals
GB
Vous trouverez des instructions en français sur http://www.jarolift.de/fr/instructions
F
Una guida in italiano è disponibile alla pagina http://www.jarolift.de/it/guida
I
Encontrará un manual en idioma español en http://www.jarolift.de/es/manual
E
Een handleiding in Nederlands kan u vinden op http://www.jarolift.de/ne/handleiding
NL
Instrukcja w jezyku polskim znajduje sie na stronie http://www.jarolift.de/pl/instrukcje
PL
Türkçe kılavuzu http://www.jarolift.de/tr/kilavuzu adresinde bulabilirsiniz
TR
TM
RoHS
compliant
2011/65/EU
Michael Mayer
Managing Director
Rev.: 05/2015_Jarolift TDRRT
01
W_ST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDRRT-01W and is the answer not in the manual?

Questions and answers

Related Manuals for JAROLIFT TDRRT-01W

Summary of Contents for JAROLIFT TDRRT-01W

  • Page 1 Electrical connection............2 Vous trouverez des instructions en français sur http://www.jarolift.de/fr/instructions Assembly ................3 Una guida in italiano è disponibile alla pagina http://www.jarolift.de/it/guida Encontrará un manual en idioma español en http://www.jarolift.de/es/manual Programming the radio transmitter ......4 Een handleiding in Nederlands kan u vinden op http://www.jarolift.de/ne/handleiding Direction of rotation and inching operation ..5...
  • Page 2 General safety instructions Any work on electrical equipment carries the risk of fatal injury Improper use may lead to an increased risk of injury. from electric shock. Please instruct all personnel on how to use the radio receiver safely. Only authorised electricians are permitted to work on the power connections of the wireless timer and all other elec- Observe the moving roller shutters and keep all personnel trical work.
  • Page 3 Technical data & included with delivery Technical data & included with delivery Technical data Power supply: 230 V, 50 Hz < 400 W System load: Standby consumption: 1 Watt Protection: IP 20 max. authorised ambient temperature: -0°C to + 60°C Radio coding: Rolling code Single-core connection cross section:...
  • Page 4 Function overview Using the radio receiver timer TDRRT-01W, you can convert a simple tubular motor into a convenient wireless motor in no time. The motor can then be controlled remotely using any of the Jarolift TDR radio transmitters available. In addition, the timer feature an integrated clock for the automatic control of the motor, as well as buttons for manual operation on-site.
  • Page 5 Programming the radio code Using the radio receiver timer TDRRT-01W, you can convert a simple tubular motor into a convenient wireless motor in no time. The motor can then be controlled remotely using any of the Jarolift TDR radio transmitters available. In addition, the timer feature an integrated clock for the automatic control of the motor, as well as buttons for manual operation on-site.
  • Page 6 Setting the direction of rotation and inching mode Changing the direction of rotation of the motor Press the UP and DOWN buttons on the programmed transmitter at the same time. Then press the STOP button four times. Now press the UP button briefly inside 5 seconds. The motor will confirm the direction has been changed by vibrating briefly. Press the UP / DOWN but- tons at the same time Press the UP button...
  • Page 7 Programming the timer function Activating and deactivating the timer function Timer active Timer inactive Ensure you are in the main view. To come out of any menu in the main view, press the STOP button briefl y. While in the main menu, keep the STOP button depressed and briefl y press the K2 button in order to activate or deactivate the cycle time function. If the timer is active, the symbol of an alarm clock is shown in the main view.
  • Page 8 Tel.: 08178 / 932 932 Schoenberger Germany Enterprises GmbH & Co.KG Fax.: 08178 / 932 970 20 Zechstraße 1-7 82069 Hohenschäftlarn - Germany info@jarolift.de www.jarolift.de We reserve the right to make technical changes, and accept no liability for printing errors and other errors.
