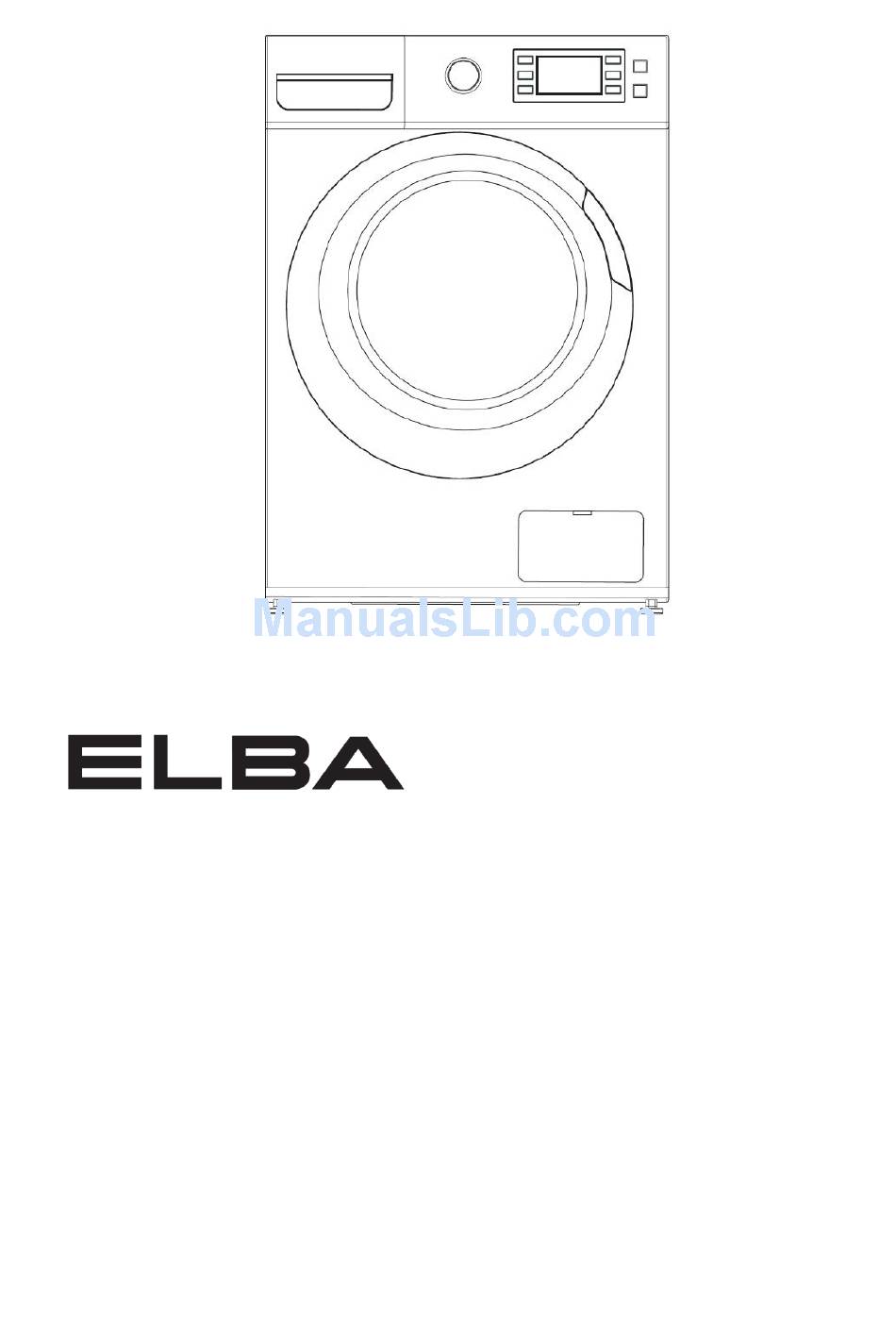

WASHING DRYER COMBO
MODEL: EWDC-F0806IN(WH)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer when
you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EWDC-F0806IN and is the answer not in the manual?

Questions and answers

Related Manuals for Elba EWDC-F0806IN

Summary of Contents for Elba EWDC-F0806IN

  • Page 1 WASHING DRYER COMBO MODEL: EWDC-F0806IN(WH) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

     In order to avoid electric shock, please make sure the appliance has been shut off before carrying out the maintenance.  Use only original accessories provided by ELBA or its authorized service center.  Do not use wet parts of the body to touch the appliance.

  • Page 3: Installation

    3. INSTALLATION 3.1 Before the installation  Please check the products and make sure there is no damage on the appliance.  The appliance door is level, and you can open and close the appliance door flexibly.  Specification on the marking plate is in compliance with the regulations. ...

  • Page 4: Product Description

    It can drain the water up and down, outlet hose shall not be installed at a height beyond 100cm and its end shall not be immersed in water. 4. PRODUCT DESCRIPTION 5. ACCESSORIES...
  • Page 5 6. HOW TO USE YOUR WASHING MACHINE Detergents  “Low suds” detergent or washing powder shall be selected according to fibre type, colors, washing temperatures, dirty degree and types.  Bleacher belongs to alkaline type can damage clothes.  Powder detergents can easily leave the residues in the clothes so as to generate the bad smell;...
  • Page 6 Quick Start Guide After the washing program completed: 1. The buzzer will beep to notify user the laundry had been completed. 2. Close the water tap. 3. Turn off the washing machine and disconnect the power plug.
  • Page 8 Washing Clothes for the First Time  Before washing clothes at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows: 1. Connect power source and water. 2. Put a little detergent into the box and close it. 3.
  • Page 9 1Hour W/D For small synthetic clothes or shirts, load limitation is 1 kg. Please select this program when you need a quick washing and drying program with limited loading laundry. Time duration is only 1 hour including wash and dry. Laundry such as towels or jeans is not suitable for this program, they will enlarge the time duration and affect the moisture content.
  • Page 10 Synthetic You can select this procedure to wash the delicate clothes. The procedure is shorter compared with cottons and the washing intension is quite gentle. It is recommended to wash articles, for example: shirts, coats, blending. As for curtains and laced textiles, the procedure “Synthetic” shall be selected.
  • Page 11 Reload This operation can be executed during the washing procedure. When the drum of the washing machine is still rolling and there is large amount of water with high temperature in the drum, it is unsafe and the door cannot be opened forcefully. To open, press Start/Pause button for 3 seconds to reload, and add the clothes into the washing machine.

  • Page 13: Cleaning And Maintenance

    8. CLEANING AND MAINTENANCE Before cleaning or performing maintenance on your appliance, disconnect the appliance from the power supply. To extend the lifespan of your appliance, it must be cleaned frequently. The enamel or stainless steel parts should be cleaned without using any abrasive powders or corrosive substances which could damage the surface.
  • Page 14 Drain Pump Filter  Drain pump filter can filter the yarns and small foreign matters from the washings. Clean the filter periodically to ensure the normal operation of washing machine.  First, drain the water with drain pump and then open the drain pump to clean away foreign matters from drain pump filter.

  • Page 15: Troubleshooting

    9. TROUBLESHOOTING Troubles Reason Solution Appliance cannot Door is not closed properly. Check if the door is closed tightly. start up No power supplied. Check if power plug is inserted well. No water supplied. Check if water supply tap is opened. Check if button “Start/Pause”...
  • Page 16 Error Code Care Label Electrical Warning  To avoid fire, electrical shock and other accidents, please take note on the following: i. Only the voltage indicated in power label can be used. ii. When you are using the heating function, the maximum current through the washing dryer combo machine will reach 10A.

  • Page 17: Technical Specification

    10. TECHNICAL SPECIFICATION Model EWDC-F0806IN(WH) Washing Capacity 8.0KG Drying Capacity 6.0KG Voltage 220–240V Frequency 50/60Hz Rated Power 1,900W Rated Current Water Pressure 0.05MPa ~ 1.0 MPa Product Dimension (mm) 595 (W) x 850 (H) x 470 (D) Carton Dimension (mm)
