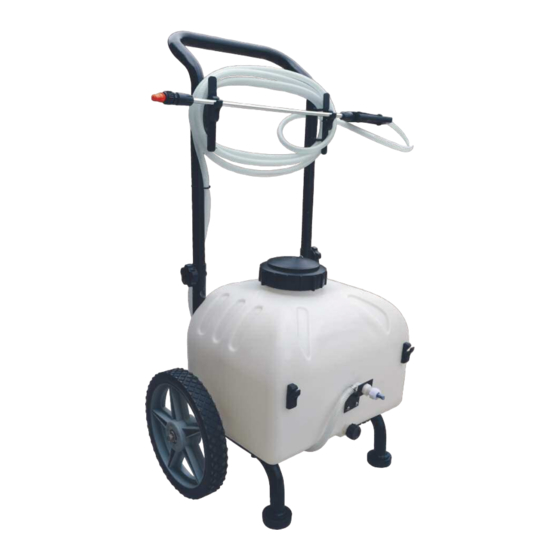

- Page 1 34 Litre Push Along Sprayer 131004 Operators Handbook Think Sprayer Think ENDURASPRAY Product helpline 01778 562810 www.enduraspray.co.uk...
- Page 2 Think Sprayer Think ENDURASPRAY INTRODUCTION The purpose of this manual is to assist you in the assembly, operation and maintenance of your 34L Push-along Sprayer. Please read through this manual completely to fully understand how to operate and maintain your equipment.This product has been manufactured to provide years of dependable service;...
- Page 3 34 Litre Push Along Sprayer 131004 Set up Charging the Battery 1. Obtain the battery charger (Item 27, figure B) and plug the charger into an AC wall outlet and the other end into the charging port located on the sprayer.
- Page 4 Parts List and Boom Assembly Operation, Cleaning and Storage 151050 Operation Ensure battery is fully charged to provide optimum efficiency from the 12 volt pump. Turn the valve located in the back panel to the off position. This will ensure the nozzle does not begin to spray when the pump is activated. The pump can be operated with the switch located on the back panel or from the remote harness if connected.
- Page 5 34 Litre Push Along Sprayer 131004 Figure A Item Description Quantity Frame, Handle (only available as entire frame) Handle Adjustment Knobs (pair with bolts) NEED Hitch Pin MORE HELP? Wheel and Tyre Axle Nut and Washer (pair) CALL US ON...
- Page 6 Tank Assembly Figure B 19 24 13 14 15 Item Part No. Description 135080 Tank Lid 135065 Basket Strainer 135081 Gasket 135005 Gun Hose Assembly 135029 Lance Nozzle 135035 Gun Clips (pair) 137088-PP Nozzle Body Item Part No. Description 1/2 NPT x 3/8 Hose 134097 Nozzle Bracket 137065-PP...
- Page 7 Connection Options General view of battery/pump area Connection if using from Connection if using the built Connection for remote external power source for in battery switch the pump e.g. ride on lawn mower If you have any questions regarding the operation or warranty of this product, please contact us direct: Telephone: 01778 562810 | Email: enduraspray@enduramaxx.co.uk | www.enduraspray.co.uk Enduramaxx Limited | Outgang Road I The Fen I Baston I PE6 9PT Enduraspray is a Registered Trading Name of Enduramaxx Limited.
