Sunhouse SPHN50 E7T Installation And Operating Instructions

SPHN E7T Electronic Panel Heaters

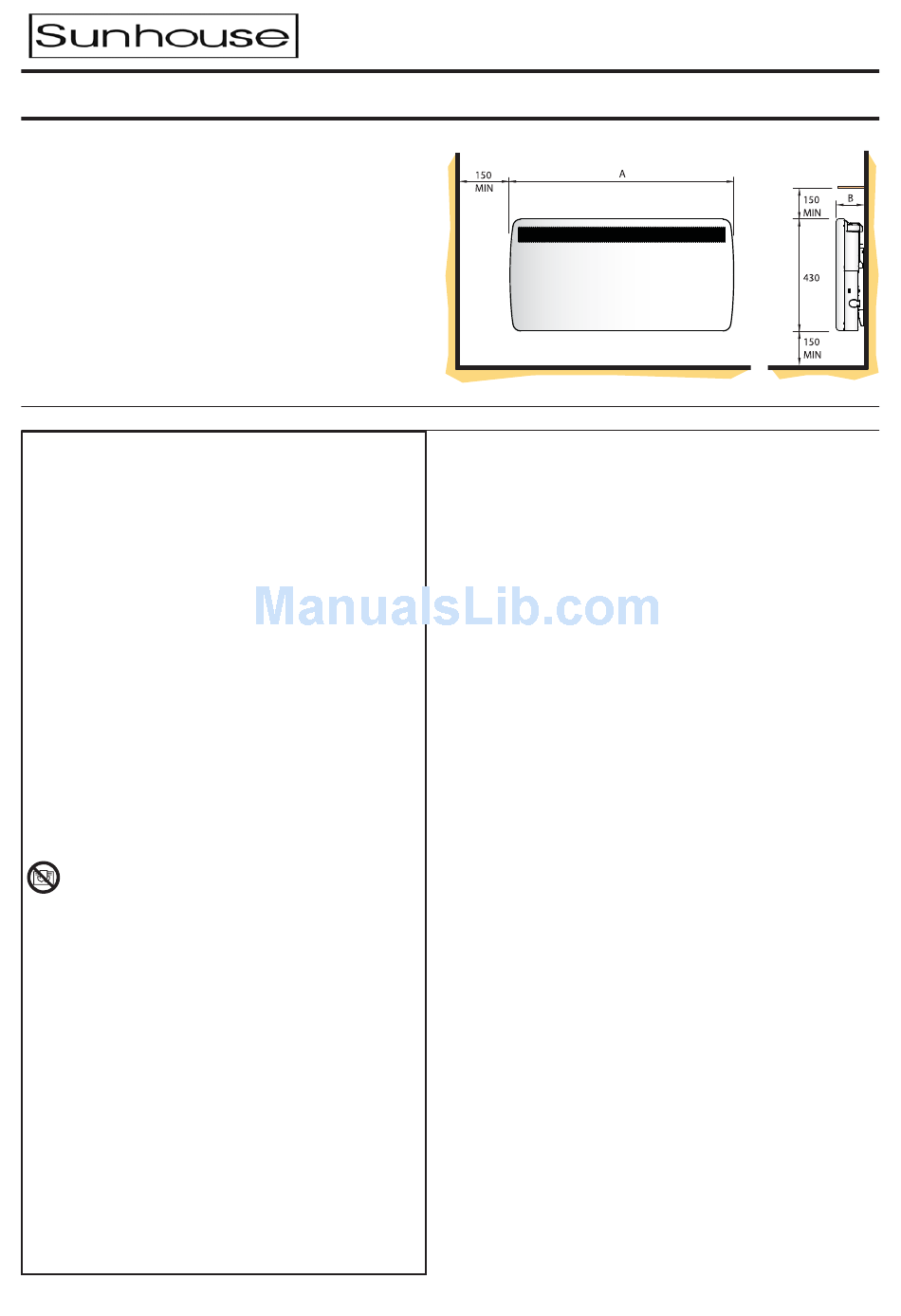

Dimensions
(millimetres)
Model(s) Watt
SPHN50 E7T 0.5kW
SPHN100 E7T 1.0kW
SPHN150 E7T 1.5kW
SPHN200 E7T 2.0kW
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

Important Safety Advice

When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electrical shock, and injury to persons, including the
following:
IIMPORTANT – The wall brackets supplied with the
appliance must be used.
WARNING - DO NOT USE THIS HEATER IN THE IMMEDIATE
SURROUNDINGS OF A BATH, A SHOWER OR A SWIMMING
POOL.
IMPORTANT – If the heater is installed in a room
containing a bath or shower, it must be so installed that
switches and other controls cannot be touched by a
person using a bath or shower.
Do not use outdoors.
Do not locate the heater immediately below a fixed socket
outlet or connection box.
Do not cover the heater. Do not place material or
garments on the heater, or obstruct the air circulation
around the heater, for instance by curtains or furniture,
as this could cause overheating and a fire risk.
NEVER cover or obstruct in any way the heat outlet
slots at the top of the heater or the air inlet slots in
the base of the heater.
WARNING – THE SURFACES OF THIS HEATER CAN BE HOT.
Momentary contact with any part of the heater should
not cause injury. However, aged or infirm persons or
young children should not be left unsupervised in the
vicinity of the heater unless a suitable guard is fitted.
This appliance is not intended for use by children or
other persons without assistance or supervision if their
physical, sensory or mental capabilities prevent them
from using it safely. Children should be supervised to
ensure that they do not play with the appliance.
Note that due care and consideration must be taken
when using this heater in series with a thermal control,
a program controller, a timer or any other device that
switches on the heat automatically, since a fire risk
exists when the heater is accidentally covered or
displaced.
If the supply cord is damaged it must be replaced by the
manufacturer or service agent or a similarly qualified
person in order to avoid a hazard.
A B
450 108
620 108
688 108
860 108
Installation and Operating Instructions

Electrical

WARNING – THIS APPLIANCE MUST BE EARTHED
The electrical installation must be carried out by a competent
electrician, and be in strict accordance with the current I.E.E.
regulations for Electrical Equipment in Buildings.
The wires in this mains lead are coloured in accordance
with the following code :
GREEN AND YELLOW :
BLUE :
BROWN :
BLACK : (NOT APPLICABLE ON THIS MODEL)
The heater is fitted with a length of flexible cable type H05VV-
F size 4 x 1.0mm 2 for connection to the fixed wiring of the
premises through a suitable connection box positioned
adjacent to the heater.
The supply circuit to the heater must incorporate a double
pole isolating switch having a contact separation of at least
3mm.
The BLACK wire should be isolated, as it may be energised
at 240V, to comply with IEE Wiring Regulations and
warranty.
IMPORTANT - DO NOT connect the BLACK wire to earth.
Supplementary Earth Bonding
Should Equipotential Earth Bonding be required the earthing
conductor in the supply cord is deemed to provide the
supplementary bonding connection (see Regulation 701, 17
Edition I.E.E. Wiring regulations).

General

The SPHNE E7T Electronic panel heater is designed for wall
mounting on the wall brackets supplied. It should only be
operated when in the upright position as shown.
All models are splashproof to IP24 standard.
Before connecting the heater check that the supply voltage is
the same as that stated on the heater.
INSHUKP5EL Issue 1
Fig. 1
EARTH
NEUTRAL
LIVE
th
