Shine Plus family
Shine Plus Maxi Digi User Manual
- version 0.0.9 –
by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shine Plus Maxi Digi and is the answer not in the manual?

Questions and answers

Summary of Contents for Tehnologistic Shine Plus Maxi Digi

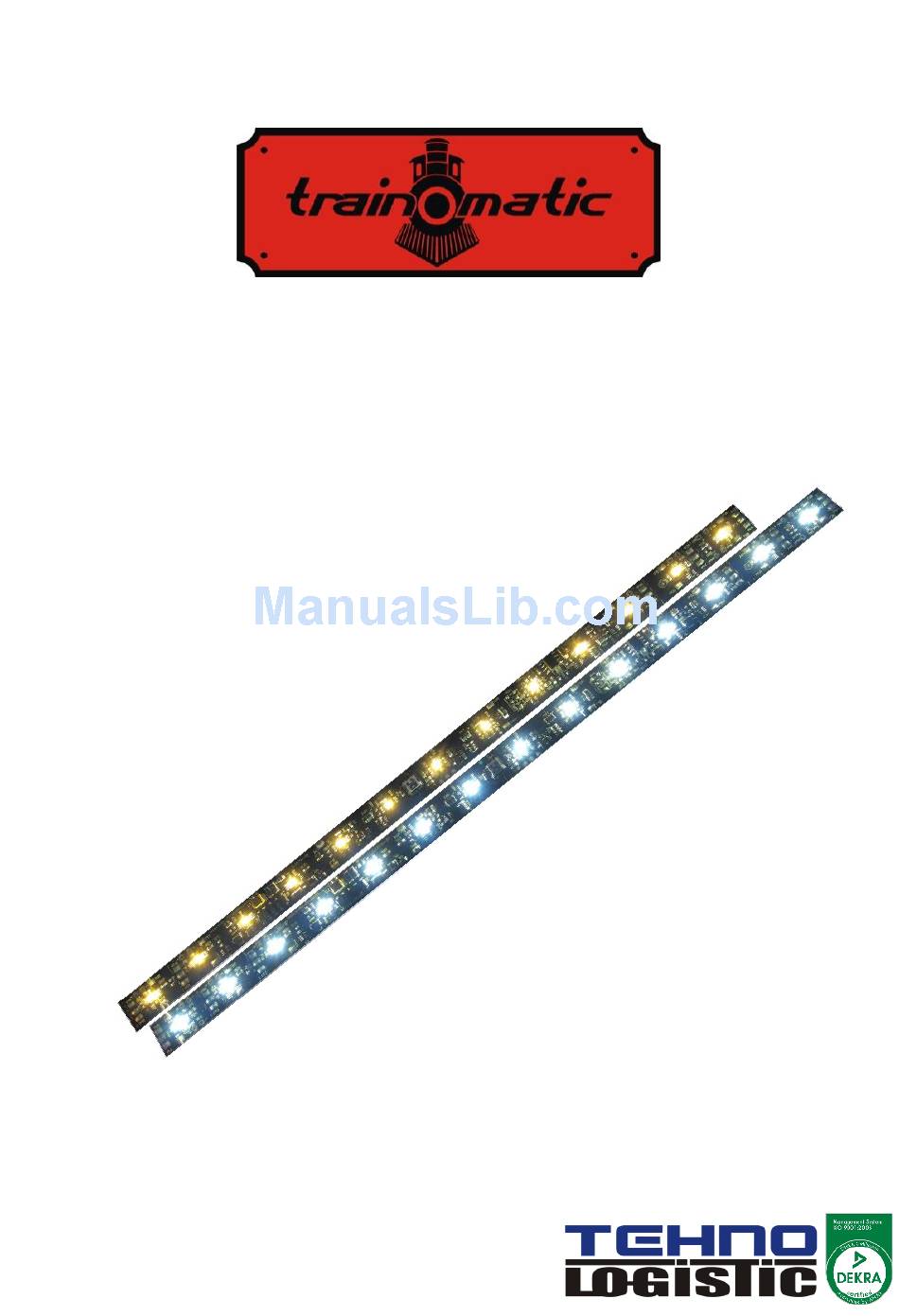

  • Page 1 Shine Plus family Shine Plus Maxi Digi User Manual - version 0.0.9 –...
  • Page 2 Version Shine Plus Maxi Digi 0.0.9 User Manual © Copyright 2014 Tehnologistic Ltd. All rights reserved No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, without the written permission of Tehnologistic Ltd.

  • Page 3: Table Of Contents

    Version Shine Plus Maxi Digi 0.0.9 User Manual Content Features ..................4 Package Content ................ 4 Technical parameters ..............4 Cutting to size ................5 Installation and connection ............5 The function decoder outputs ............ 8 Connecting the anti-flickering capacitor ......... 12 Advanced features ..............

  • Page 4: Features

    The Shine Plus Maxi Digi lighting modules are supplied in transparent plastic bags or blister packs. Check when unpacking the product if the following parts are present: 1 x Shine Plus Maxi Digi (Cool White or Warm White), 2x 220uF/25V capacitors.

  • Page 5: Cutting To Size

    Version Shine Plus Maxi Digi 0.0.9 User Manual 4. Cutting to size The operation can be performed at the points indicated in the below illustration. The cutting lengths are ~ 20 mm long, and marked with drilled holes in the substrate material. Care shall be taken to not damage the circuit.
  • Page 6 Version Shine Plus Maxi Digi 0.0.9 User Manual Component side connections The connections marked with 1 and 2 have to be connected to the DC/DCC track voltage. The connections are available also in center area of the module (the board is considered to be assembled faced down in the carriage).
  • Page 7 Version Shine Plus Maxi Digi 0.0.9 User Manual Solder side connections One pair of track connection must be used, please choose that one which is the most convenient for the carriage /application. In some cases it is more suitable to solder the wire connections to the solder side of the board.

  • Page 8: The Function Decoder Outputs

    Version Shine Plus Maxi Digi 0.0.9 User Manual 6. The function decoder outputs The first 14 outputs of the function decoder are connected to the 14 LEDs marked on the below illustration L1 thru L14. Shortening the lighting board will eliminate L1, L2, L13 and L14, please use the mapping of the functions taking this in consideration.
  • Page 9 Version Shine Plus Maxi Digi 0.0.9 User Manual Left side connections (component side) Right side connections (component side) Left side connections (solder side, board flipped horizontally) Page 9 of 64...
  • Page 10 Version Shine Plus Maxi Digi 0.0.9 User Manual Right side connections (solder side, board flipped horizontally) The outputs are available for connection of other lighting modules, for example Shine Micro for cockpit lighting, or Shine FDT as taillight. Cockpit connection example...
  • Page 11 Version Shine Plus Maxi Digi 0.0.9 User Manual If LEDs (Light Emitting Diodes) are used the presence of the current limiting resistor connected in series with the LED is mandatory. Connecting directly an LED to the output of the function...

  • Page 12: Connecting The Anti-Flickering Capacitor

    Version Shine Plus Maxi Digi 0.0.9 User Manual 7. Connecting the anti-flickering capacitor On both ends of the module, there are available several connections for the anti-flickering capacitors. Please solder the supplied capacitors in most convenient position. The capacitors are polarized electronic devices. Please respect...
  • Page 13 Version Shine Plus Maxi Digi 0.0.9 User Manual The positive terminal of the capacitor has to be connected to any of the connections marked with while the negative terminal to the connection points marked with The capacitor connection pads have metallized connections to the solder side of the boards.

  • Page 14: Advanced Features

    User Manual 8. Advanced features The PCB layout of the Shine Plus Maxi Digi module allows the repositioning of the LEDs which results in a better fit in the carriages. Each LED can be shifted left and right in two positions with a ~ 3 mm pitch by resoldering, as illustrated below.

  • Page 15: Address Programming

    User Manual 9. Address programming The on board function decoder of Shine Plus Maxi Digi can be used either with short addresses (1-127) or long addresses (1-9999). The factory default is short addressing (bit 5 of CV29 is 0), with the address 3 (CV1=3).

  • Page 16: Decoder Reset

    CV29 has to be deactivated. 10. Decoder reset The Shine Plus Maxi Digi is delivered in factory configuration, with the CV values specified in the column "Default value" in the CV table (see chapter 17). At any time, the decoder can be restored to the default values by performing a reset.

  • Page 17: Dimming, Fade And Effects

    Version Shine Plus Maxi Digi 0.0.9 User Manual programmed with the sum of the decimal values of each active output. For example, if you want to use function F2 to activate output 4, CV41 and CV42 will be used for mapping (which configures / maps F2).
  • Page 18 Version Shine Plus Maxi Digi 0.0.9 User Manual effect. In CV116 the flickering period is given for the flickering lamp effect. The Defective Neon effects repetition time can be set in CV117. The effects are configured for each of the outputs in CVs 136-152. In...

  • Page 19: Analog Operation

    Only functions F0, F1-F14 can be used in analog DC mode. 14. Consist operation The on board function decoder of the Shine Plus Maxi Digi lighting board can use the Advanced Consist functions. To activate this feature, the consist address has to be set in CV19. When the content...

  • Page 20: Secondary Address (Decoder Lock)

    Programming Track without removing it. The secondary addresses are programmed into CV16 before the decoders (in our case the Shine Plus Maxi Digi with the onboard decoder) is being assembled in their housing. The ranges of secondary addresses are 1-7 (value of 0 means that secondary addressing is not used).

  • Page 21: User Data

    Version Shine Plus Maxi Digi 0.0.9 User Manual CV15. For this reason the values used are limited to the range 1-7. If the secondary address of the decoder is forgotten within 7 iterations it can be found. This way of accessing / programming of the decoder CVs is useful in...

  • Page 22: Cv Table

    Version Shine Plus Maxi Digi 0.0.9 User Manual 18. CV table Default Value Description value Range 0-127 Decoder Address Short, 7 bits Software Version (only readable) Manufactured ID/RESET (readable 78 = train-O-matic, any written value will reset the decoder to the factory default values...
  • Page 23 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(32): F6 active in Analog mode Bit 6 = 0(0): F7 not active in Analog mode = 1(64) F7 active in Analog mode Bit 7 = 0(0): F8 not active in Analog mode...
  • Page 24 Version Shine Plus Maxi Digi 0.0.9 User Manual LockValue: Enter the value to match Lock ID in CV16 to unlock CV programming. No action and ACK will be performed by the decoder when LockValue is different from LockID. In this situation only CV15 write is allowed.
  • Page 25 Version Shine Plus Maxi Digi 0.0.9 User Manual …. by consist address = 1(4): Bit 3 = 0(0): F4 controlled by individual address …. by consist address = 1(8): Bit 4 = 0(0): F5 controlled by individual address …. by consist address...
  • Page 26 Version Shine Plus Maxi Digi 0.0.9 User Manual …. by consist address = 1(16): Bit 5 = 0(0): F12 controlled by individual address …. by consist address = 1(32): 0-63 Configuration Data Bit 0 = 0(0): Locomotive Direction normal = 1(1): Locomotive Direction reversed...
  • Page 27 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(1): Out1 active on F0 forward Bit 1 = 0(0): Out2 not active on F0 forward = 1(2): Out2 active on F0 forward Bit 2 = 0(0): Out3 not active on F0 forward...
  • Page 28 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 3 = 0(0): Out12 not active on F0 forward = 1(8): Out12 active on F0 forward Bit 4 = 0(0): Out13 not active on F0 forward = 1(16): Out13 active on F0 forward...
  • Page 29 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(32): Out6 active on F0 backward Bit 6 = 0(0): Out7 not active on F0 backward = 1(64): Out7 active on F0 backward Bit 7 = 0(0): Out8 not active on F0 backward...
  • Page 30 Version Shine Plus Maxi Digi 0.0.9 User Manual 0-255 F1, Forward move mapping, low byte Bit 0 = 0(0): Out1 not active on F1 forward = 1(1): Out1 active on F1 forward Bit 1 = 0(0): Out2 not active on F1 forward...
  • Page 31 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 2 = 0(0): Out11 not active on F1 forward = 1(4): Out11 active on F1 forward Bit 3 = 0(0): Out12 not active on F1 forward = 1(8): Out12 active on F1 forward...
  • Page 32 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(16): Out5 active on F1 backward Bit 5 = 0(0): Out6 not active on F1 backward = 1(32): Out6 active on F1 backward Bit 6 = 0(0): Out7 not active on F1 backward...
  • Page 33 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 7 = 0(0): Out16 not active on F1 backward = 1(128): Out16 active on F1 backward 0-255 F2 mapping, low byte Bit 0 = 0(0): Out1 not active on F2 = 1(1): Out1 active on F2...
  • Page 34 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 1 = 0(0): Out10 not active on F2 = 1(2): Out10 active on F2 Bit 2 = 0(0): Out11 not active on F2 = 1(4): Out11 active on F2 Bit 3 = 0(0): Out12 not active on F2...
  • Page 35 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(8): Out4 active on F3 Bit 4 = 0(0): Out5 not active on F3 = 1(16): Out5 active on F3 Bit 5 = 0(0): Out6 not active on F3 = 1(32): Out6 active on F3...
  • Page 36 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 6 = 0(0): Out15 not active on F3 = 1(64): Out15 active on F3 Bit 7 = 0(0): Out16 not active on F3 = 1(128): Out16 active on F3 0-255 F4 mapping, low byte...
  • Page 37 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 0 = 0(0): Out9 not active on F4 = 1(1): Out9 active on F4 Bit 1 = 0(0): Out10 not active on F4 = 1(2): Out10 active on F4 Bit 2 = 0(0): Out11 not active on F4...
  • Page 38 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(4): Out3 active on F5 Bit 3 = 0(0): Out4 not active on F5 = 1(8): Out4 active on F5 Bit 4 = 0(0): Out5 not active on F5 = 1(16): Out5 active on F5...
  • Page 39 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 5 = 0(0): Out14 not active on F5 = 1(32): Out14 active on F5 Bit 6 = 0(0): Out15 not active on F5 = 1(64): Out15 active on F5 Bit 7 = 0(0): Out16 not active on F5...
  • Page 40 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(128): Out8 active on F6 0-255 F6 mapping, high byte Bit 0 = 0(0): Out9 not active on F6 = 1(1): Out9 active on F6 Bit 1 = 0(0): Out10 not active on F6...
  • Page 41 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(2): Out2 active on F7 Bit 2 = 0(0): Out3 not active on F7 = 1(4): Out3 active on F7 Bit 3 = 0(0): Out4 not active on F7 = 1(8): Out4 active on F7...
  • Page 42 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 4 = 0(0): Out13 not active on F7 = 1(16): Out13 active on F7 Bit 5 = 0(0): Out14 not active on F7 = 1(32): Out14 active on F7 Bit 6 = 0(0): Out15 not active on F7...
  • Page 43 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(64): Out7 active on F8 Bit 7 = 0(0): Out8 not active on F8 = 1(128): Out8 active on F8 0-255 F8 mapping, high byte Bit 0 = 0(0): Out9 not active on F8...
  • Page 44 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(1): Out1 active on F9 Bit 1 = 0(0): Out2 not active on F9 = 1(2): Out2 active on F9 Bit 2 = 0(0): Out3 not active on F9 = 1(4): Out3 active on F9...
  • Page 45 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 3 = 0(0): Out12 not active on F9 = 1(8): Out12 active on F9 Bit 4 = 0(0): Out13 not active on F9 = 1(16): Out13 active on F9 Bit 5 = 0(0): Out14 not active on F9...
  • Page 46 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(32): Out6 active on F10 Bit 6 = 0(0): Out7 not active on F10 = 1(64): Out7 active on F10 Bit 7 = 0(0): Out8 not active on F10 = 1(128): Out8 active on F10...
  • Page 47 Version Shine Plus Maxi Digi 0.0.9 User Manual 0-255 F11 mapping, low byte Bit 0 = 0(0): Out1 not active on F11 = 1(1): Out1 active on F11 Bit 1 = 0(0): Out2 not active on F11 = 1(2): Out2 active on F11...
  • Page 48 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 2 = 0(0): Out11 not active on F11 = 1(4): Out11 active on F1 Bit 3 = 0(0): Out12 not active on F11 = 1(8): Out12 active on F11 Bit 4 = 0(0): Out13 not active on F11...
  • Page 49 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(16): Out5 active on F12 Bit 5 = 0(0): Out6 not active on F12 = 1(32): Out6 active on F12 Bit 6 = 0(0): Out7 not active on F12 = 1(64): Out7 active on F12...
  • Page 50 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 7 = 0(0): Out16 not active on F12 = 1(128): Out16 active on F12 105 0 0-255 USER data 106 0 0-255 USER data 112 15 1-127 FadeIN AUX Light Effect Fade ON, ex.:1=8ms, 15=120ms 125=1000ms...
  • Page 51 Version Shine Plus Maxi Digi 0.0.9 User Manual 129 127 0-255 Out 10 Light intensity, [1-255] 130 127 0-255 Out 11 Light intensity, [1-255] 131 127 0-255 Out 12 Light intensity, [1-255] 132 127 0-255 Out 13 Light intensity, [1-255]...
  • Page 52 Version Shine Plus Maxi Digi 0.0.9 User Manual 3-Flickering Lamp, 4- Defective Neon effect 138 0 0-255 Out 3, Effect: Bit7= 128 Random operation / 0 normal operation + Bit0,1,3 = 0-Continuous, 1-Fade Lamp, 2-Fluorescent Tube, 3-Flickering Lamp, 4- Defective Neon effect...
  • Page 53 Version Shine Plus Maxi Digi 0.0.9 User Manual 1-Fade Lamp, 2-Fluorescent Tube, 3-Flickering Lamp, 4- Defective Neon effect 141 0 0-255 Out 6, Effect: Bit7= 128 Random operation / 0 normal operation + Bit0,1,3 = 0-Continuous, 1-Fade Lamp, 2-Fluorescent Tube,...
  • Page 54 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit0,1,3 = 0-Continuous, 1-Fade Lamp, 2-Fluorescent Tube, 3-Flickering Lamp, 4- Defective Neon effect 144 0 0-255 Out 9, Effect: Bit7= 128 Random operation / 0 normal operation + Bit0,1,3 = 0-Continuous, 1-Fade Lamp,...
  • Page 55 Version Shine Plus Maxi Digi 0.0.9 User Manual 146 0 0-255 Out 11, Effect: Bit7= 128 Random operation / 0 normal operation + Bit0,1,3 = 0-Continuous, 1-Fade Lamp, 2-Fluorescent Tube, 3-Flickering Lamp, 4- Defective Neon effect 147 0 0-255 Out 12, Effect:...
  • Page 56 Version Shine Plus Maxi Digi 0.0.9 User Manual 3-Flickering Lamp, 4- Defective Neon effect 149 0 0-255 Out 14, Effect: Bit7= 128 Random operation / 0 normal operation + Bit0,1,3 = 0-Continuous, 1-Fade Lamp, 2-Fluorescent Tube, 3-Flickering Lamp, 4- Defective Neon effect...
  • Page 57 Version Shine Plus Maxi Digi 0.0.9 User Manual 1-Fade Lamp, 2-Fluorescent Tube, 3-Flickering Lamp, 4- Defective Neon effect 152 0 Save Last State 1-Save 0-Don’t Save 160 0 0-255 F13 mapping, low byte Bit 0 = 0(0): Out1 not active on F13...
  • Page 58 Version Shine Plus Maxi Digi 0.0.9 User Manual 161 16= 0-255 F13 mapping, high byte Bit 0 = 0(0): Out9 not active on F13 = 1(1): Out9 active on F13 Bit 1 = 0(0): Out10 not active on F13 = 1(2): Out10 active on F13...
  • Page 59 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 2 = 0(0): Out3 not active on F14 = 1(4): Out3 active on F14 Bit 3 = 0(0): Out4 not active on F14 = 1(8): Out4 active on F14 Bit 4 = 0(0): Out5 not active on F14...
  • Page 60 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(16): Out13 active on F14 Bit 5 = 0(0): Out14 not active on F14 = 1(32): Out14 active on F14 Bit 6 = 0(0): Out15 not active on F14 = 1(64): Out15 active on F14...
  • Page 61 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 7 = 0(0): Out8 not active on F15 = 1(128): Out8 active on F15 165 64= 0-255 F15 mapping, high byte Bit 0 = 0(0): Out9 not active on F15 = 1(1): Out9 active on F15...
  • Page 62 Version Shine Plus Maxi Digi 0.0.9 User Manual Bit 1 = 0(0): Out2 not active on F16 = 1(2): Out2 active on F16 Bit 2 = 0(0): Out3 not active on F16 = 1(4): Out3 active on F16 Bit 3 = 0(0): Out4 not active on F16...
  • Page 63 Version Shine Plus Maxi Digi 0.0.9 User Manual = 1(8): Out12 active on F16 Bit 4 = 0(0): Out13 not active on F16 = 1(16): Out13 active on F16 Bit 5 = 0(0): Out14 not active on F16 = 1(32): Out14 active on F16...
  • Page 64 Version Shine Plus Maxi Digi 0.0.9 User Manual Copyright © 2014 Tehnologistic Ltd. All rights reserved The information in this document is subject to change without notice “train-o-matic” and the logo are registered trademarks of Tehnologistic Ltd. www.train-o-matic.com www.tehnologistic.ro Tehnologistic Ltd.
