Summary of Contents for Bush NE-6451

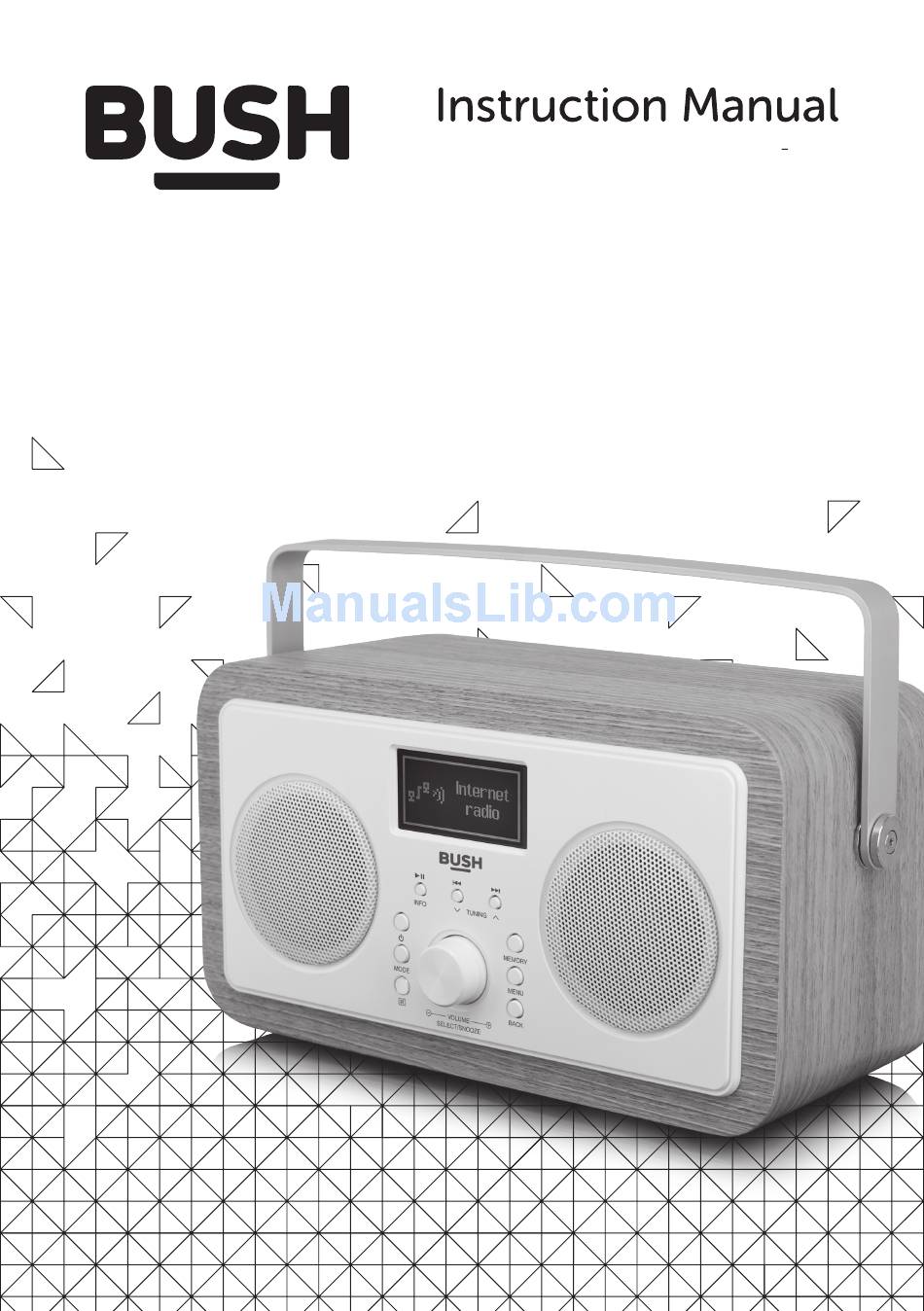

- Page 1 NE-6451...
- Page 2 You’ll soon be enjoying your new DAB/ FM/ Internet Radio. It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. Help and Guidance We’re here to help you get the most from your DAB/ FM/ Internet Radio.
-
Page 3: Table Of Contents
Contents Safety information Safety information Getting to know your DAB/ FM/ Internet Radio Ready? Let’s begin Product Overview Connecting to the Mains Supply Battery Replacement for the Remote Control Remote Control Operation Range Network Connection Using your DAB/ FM/ Internet Radio GETTING STARTED System Settings Internet Radio... - Page 5 Safety information...
-
Page 6: Safety Information
Safety information Important - Please read these instructions fully before installing or operating Safety Warnings - Read all the instructions carefully before using the unit and keep them for future reference. Check that the voltage marked on the rating label matches your mains voltage. - The unit must be placed on a flat stable surface and should not be subjected to vibrations. - Page 7 Safety information Important - Please read these instructions fully before installing or operating Mains Adapter Make sure the unit is not resting on top of the mains cable, as the weight of the unit may damage the cable and create a safety hazard. If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
-
Page 9: Getting To Know Your Dab/ Fm/ Internet Radio
Getting to know your DAB/ FM/ Internet Radio... -
Page 10: Ready? Let's Begin
Getting to know your DAB/ FM/ Internet Radio You’ll be up and running in no time Ready? Let’s begin... Please read these instructions carefully. They contain important information which will help you get the best from your product and ensure safe and correct installation and operation. If you require any further assistance, our technical experts are happy to help. -
Page 11: Remote Control
Getting to know your DAB/ FM/ Internet Radio You’ll be up and running in no time rear view 12. Antenna 13. NETWORK port 14. Headphone Jack 15. AUDIO IN Socket 16. USB 5V 1A Charging Port 17. DC Input Jack 18. HANDLE remote control STANDBY Button... -
Page 12: Connecting To The Mains Supply
Getting to know your DAB/ FM/ Internet Radio You’ll be up and running in no time Connecting to the Mains Supply Before using, connect the supplied power cable to the mains cable socket at the rear of the unit and to the mains socket. Remarks: If the adapter voltage is more than 6v, it can cause damage to the unit. -
Page 13: Remote Control Operation Range
Getting to know your DAB/ FM/ Internet Radio You’ll be up and running in no time remote control operation range ∞ The remote control sensor on the front unit is sensitive to the remote control’s commands up to a maximum of 4 metres away and within a maximum of 60°... -
Page 15: Using Your Dab/ Fm/ Internet Radio
Using your DAB/ FM/ Internet Radio... -
Page 16: Getting Started
Using your DAB/ FM/ Internet Radio Let’s get started GETTING STARTED Powering ON/OFF When you first connect the unit to the mains socket, the unit will be in STANDBY mode after showing “Welcome to Internet Radio STARTING….” (F.1)(F.2) Press the Standby button on the unit or remote control to switch the unit on. -
Page 17: System Settings
Using your DAB/ FM/ Internet Radio Let’s get started System Settings Press the MENU button to display the menu, press the buttons to select Main menu and then press the SELECT button to confirm. Press the buttons to select System settings and then press the SELECT button to confirm. -
Page 18: Factory Reset
Using your DAB/ FM/ Internet Radio Let’s get started The Time/Date can be automatically set once it has been connected to the Internet, DAB+ or FM radio station with time/date information. You may also adjust the Time/Date manually - During System settings mode, press the buttons to select Time/Date and press the SELECT button to confirm. -
Page 19: Software Upgrade
Using your DAB/ FM/ Internet Radio Let’s get started you have moved house. If you experience reception problems you may want to reset and try again. If you move to another part of the country and pick up the local and national DAB+ stations in that area, your previously tuned channels may no longer be available. -
Page 20: Internet Radio
Using your DAB/ FM/ Internet Radio Let’s get started Info During System settings mode, press the buttons to select Info and then press the SELECT button to confirm. The software version and Radio ID will show on the display. Backlight During System settings mode, press the buttons to select Backlight and then press the SELECT button to confirm. - Page 21 Using your DAB/ FM/ Internet Radio Let’s get started My Favourites ∞ Favourites are stored in the Internet radio portal and are available to all Internet radios that are registered with the same account. You must register the radio in the Internet radio portal before making use of the favourites.
-
Page 22: Music Player Operation
Using your DAB/ FM/ Internet Radio Let’s get started Preset Stations The preset Internet radio stations are stored in the radio and cannot be accessed from other radios. To store an Internet radio preset, press and hold the MEMORY button until the display shows the "Save to Preset". -
Page 23: Usb Operation
Using your DAB/ FM/ Internet Radio Let’s get started Button Function Press to pause playback or resume normal playback. Press to skip to the previous track. Press and hold to fast rewind the current track. Press to skip to the next track. Press and hold to fast forward the current track. -
Page 24: Dab Operation
Using your DAB/ FM/ Internet Radio Let’s get started The unit can only play MP3 and WMA file formats in USB operation. This unit supports USB version 1.1 and 2.0. The unit can support USB devices with up to 32GB of memory. The unit may not be compatible with all USB devices;... -
Page 25: Auto Scan
Using your DAB/ FM/ Internet Radio Let’s get started Auto Scan - Press the MENU button, and then press the buttons to select Scan. Press the SELECT button to confirm. The display will show “Scanning…” and a progress slide bar. All the stations that have been found will be stored automatically. -
Page 26: Fm Operation
Using your DAB/ FM/ Internet Radio Let’s get started FM Operation Switching from DAB to FM Mode (F.8) To switch the unit to FM mode, press the MODE button repeatedly to switch to FM mode.(F.8) The display will show the frequency. radio Auto Scan - Press and hold the TUNING... -
Page 27: Bluetooth ® Operation
Using your DAB/ FM/ Internet Radio Let’s get started ® Bluetooth Operation The unit has a Bluetooth function that can receive a signal within 8 metres. Pairing the unit with a Bluetooth device to listen to music: Press MODE and select he option BT. is flashing on the display. -
Page 28: Sleep Setting
Using your DAB/ FM/ Internet Radio Let’s get started Sleep Setting This function allows you to program the unit to turn to standby mode by itself after a set period of time. To activate the sleep function, press the SLEEP button repeatedly. The time will change in the below sequence on every press: Sleep OFF 15MINS... -
Page 29: Headphone Jack
Using your DAB/ FM/ Internet Radio Let’s get started Finally, select “Save” and press the SELECT button to save the alarm setting. When the alarm is set, the alarm icon will appear on the display during standby mode. To turn off the alarm when it sounds, press the STANDBY or ALARM button. -
Page 31: Other Information
Other information... -
Page 32: Specifications
Other information Helpful technical information Specifications Power Supply AC 100-240V~ 50/60Hz 0.5A Adaptor output DC 6V 2.0A Power consumption Audio output 2 X 2W RMS USB Power 1000mA Frequency Range DAB 174 – 240 MHz FM 87.5 – 108 MHz Unit Dimension approx. -
Page 34: Product Support
Product support... -
Page 35: Troubleshooting
Product support Help is always at hand Troubleshooting General Problem Solution ∞ Ensure the mains plug is connected. No power. ∞ Make sure that you select the ON mode. ∞ Use the remote control near the unit. The remote control is ∞... - Page 36 Product support Help is always at hand ® Bluetooth Problem Solution ® ® ∞ Ensure the Bluetooth function is activated on your Bluetooth I cannot find device. “BT SpeakerN” on my ® ∞ Ensure you have paired your unit with the Bluetooth ∞...
-
Page 37: Help And Assistance
Product support Help is always at hand Help and assistance If you require any technical guidance or find that your DAB/ FM/ Internet Radio is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 604 0105. -
Page 38: Disposal
Product support Help is always at hand Disposal This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. -
Page 39: Guarantee
Call us now and activate your 12 month guarantee Thank you for choosing Bush. Your new product is guaranteed against faults and breakdowns for 12 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates. - Page 40 Contact: www.argos-support.co.uk Helpline: 0345 604 0105...
