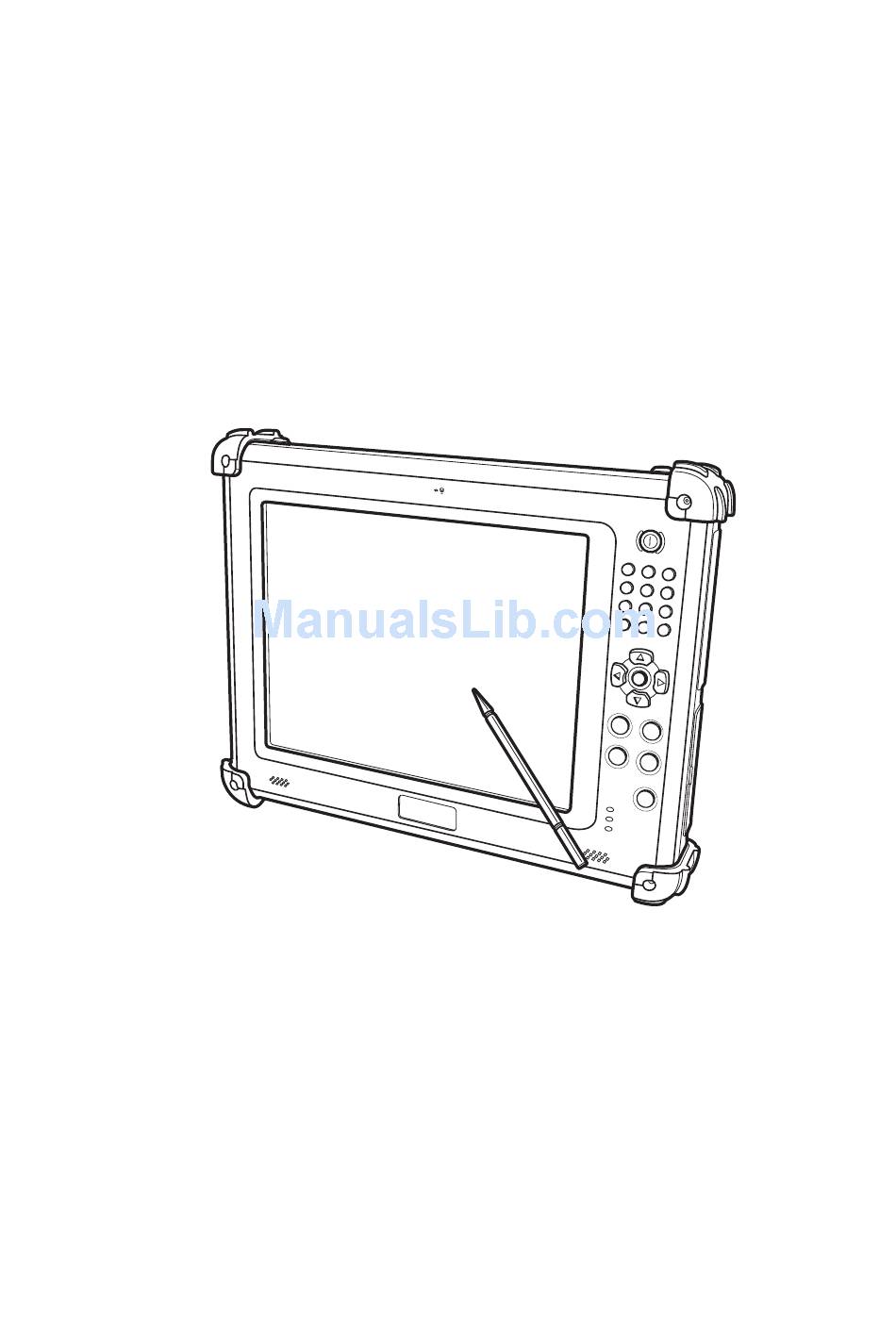

    Rugged Tablet PC-XT1100 User Manual Ver 1.0...

  • Page 3: Table Of Contents

    XT1100 User Manual Table of Contents Preface ..............i CE Conformity Statement ..........i FCC Compliance Statement ........... ii Copyright Statement ...........iii Safety Instructions ..........v Rugged and Ready to Go ...........1 Symbols Used in this Manual ...........1 Product Features............1 Exploring the XT1100............2 Front View.............2 Left View ..............3 Right View .............3...
  • Page 4 XT1100 User Manual Adjusting Screen Brightness ........14 Adjusting the Volume..........14 Wireless Connections..........15 RaLink Wireless Utility ..........15 Link Status Screen..........16 Site Survey Screen ..........16 Statistics Screen ............ 16 Advanced Screen ........... 17 QoS Screen ............18 About Screen ............
  • Page 5 XT1100 User Manual Calibration Screen ..........29 Status Screen ............30 About Screen ............30 Specifications ............31...
  • Page 6 XT1100 User Manual...

  • Page 7: Preface

    XT1100 User Manual Preface CE Conformity Statement This product is compliant with the Electromagnetic Compatibility Directive 89/336/EEC and the Low Voltage Direc- tive 73/23/EEC of the European Union. This product meets the following technical standards: • EN 55022 — "Information Technology Equipment — Radio Disturbance Characteristics —...

  • Page 8: Fcc Compliance Statement

    XT1100 User Manual FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 9: Copyright Statement

    XT1100 User Manual Copyright Statement © Copyright 2007 aca-digital ADVANCED CONVERGENCE ALLIANCE, All Rights Reserved. All rights reserved. This manual is protected by copyright and distributed under licenses restricting its use, copying and distri- bution. No part of this manual may be reproduced in any form, electronic or otherwise, without the express permission of Advanced Convergence Alliance.
  • Page 10 XT1100 User Manual...

  • Page 11: Safety Instructions

    XT1100 User Manual Safety Instructions Pay careful attention to the following safety instructions when setting up and using the XT1100.
  • Page 12 XT1100 User Manual...

  • Page 13: Rugged And Ready To Go

    XT1100 User Manual Rugged and Ready to Go Congratulations on your purchase of the ACA Tablet PC-XT1100. This product combines rugged design with reliable performance and powerful functionality to best suit all your needs, in a wide range of working conditions.

  • Page 14: Exploring The Xt1100

    XT1100 User Manual Exploring the XT1100 Front View Component Microphone Display Power button Number / Tab / Esc buttons Arrow / Enter buttons Favorite buttons Brightness / volume button Keyboard button Status LEDs: • WLAN connection status LED • HDD activity LED •...

  • Page 15: Left View

    XT1100 User Manual Left View 3 4 5 6 Component PC card slot Compact Flash card slot Headphone jack Microphone jack Telephone line jack RJ45 jack (for network cables) Power jack Right View Component Serial ports VGA port USB ports...

  • Page 16: Rear View

    XT1100 User Manual Rear View Component Pen holder Battery compartment cover...

  • Page 17: Getting Started

    XT1100 User Manual Getting Started Inserting the Battery Insert the battery as shown, and secure the battery compartment door with the seven screws provided. Connecting the Power Before you can use your XT1100, you must fully charge the battery. Connect the power adapter as shown and leave to charge for a minimum of 4 hours before use.

  • Page 18: Inserting A Memory Card

    XT1100 User Manual Inserting a Memory Card You can insert a Compact Flash memory card to store data, which needs to be later transferred to another machine, or to simply expand the storage capacity of the XT1100. You can use Compact Flash cards up to 2GB in size.

  • Page 19: Inserting A Pc Card

    XT1100 User Manual Inserting a PC Card You can also insert a PC card to store and transfer data between computers with compatible PC card capabilities. 1. Open the memory card compartment cover. 2. Insert the PC card, until it clicks into place.

  • Page 20: Making Connections

    XT1100 User Manual Making Connections Connecting to a Monitor You can connect the XT1100 to an external monitor for enhanced viewing. Connect one end of a VGA cable to the VGA port on the right side of the XT1100. Connect the other end to the VGA port on the monitor.

  • Page 21: Connection To A Network

    XT1100 User Manual Connection to a Network You can connect to either a home or work network using the RJ- 45 port. Connect one end of the network cable to the RJ-45 port on the left side of the XT1100 and the other to your network hub or wall socket.

  • Page 22: Connecting A Microphone

    XT1100 User Manual Connecting a Microphone The XT1100 features and in-built microphone, but you can connect an external microphone if needed. Connect the microphone to the microphone jack on the left side of the XT1100 as shown. Turning On Press and hold the power button to turn on the XT1100.

  • Page 23: Controlling The Xt1100

    XT1100 User Manual Controlling the XT1100 Using the Touch Screen The XT1100 is equipped with touch screen technology, for ease of use when you are on the go. Simply use the pen to select icons and run applications. Remove the pen from its holder at the rear of the XT1100 and you are ready to go.

  • Page 24: Using The Control Panel Buttons

    XT1100 User Manual Configuring the Tap Function When you tap on the screen with the pen, it emulates either a right or left button click on a regular mouse. To configure this setting, tap on the Event Selector icon in the system tray. Tap again to toggle between right and left click functions.

  • Page 25: Using The On-Screen Keyboard

    XT1100 User Manual Button Name Function Enter Press to emulate the Enter key Press to emulate the Tab key Escape Press to emulate the ESC key Function Press to access your favorite programs Hold and press the up or down Brightness/ buttons to adjust brightness.

  • Page 26: Configuring The Function Buttons

    XT1100 User Manual Configuring the Function Buttons The three function buttons can be configured as shortcuts to access your favorite or frequently used programs. 1. Press the function button to which you want to assign a program shortcut to. The function button screen appears.

  • Page 27: Wireless Connections

    XT1100 User Manual Wireless Connections RaLink Wireless Utility Note Should you experience any problems while attempting to configure a wireless connection, consult your systems administrator. The XT1100 comes pre-loaded with the RaLink Wireless Utility software. This software should automatically detect any local WLAN (Wireless Local Area Network) and configure the connection automatically.

  • Page 28: Link Status Screen

    XT1100 User Manual Link Status Screen This screen displays all status information for your current wireless connections. Site Survey Screen This screen displays all available wireless networks and a summary of information for each connection. Tap Rescan to scan the area again for available networks.

  • Page 29: Advanced Screen

    XT1100 User Manual Advanced Screen This screen displays detailed information on your current connection and is where you can adjust advanced settings. • Wireless mode: You can configure the type of wireless mode here. Select either a single (802.11 A only / 802.11 B only) or mixed (802.11 B/G mix / 802.11 A/B/G mix) mode.

  • Page 30: Qos Screen

    XT1100 User Manual QoS Screen You can configure various QoS (Quality of Service) settings to best suit your needs from this screen. • WMM Enable: Select this option to enable WMM. Tap Apply. • WMM - Power Save Enable: Select this option to enable the power save function for the WMM function.

  • Page 31: Windows Basics

    XT1100 User Manual Windows Basics General Use The Start Menu Tap the Start button for easy access to your notebook's programs and settings: • Tap All Programs to view a list of all installed programs. • Tap Control Panel to view and adjust your system settings.

  • Page 32: Logging Off

    XT1100 User Manual • Limited: The user can only change their own personal settings. Limited users cannot install any programs, hardware, or access the Internet. 5. Tap Create Account to create the new user. Logging Off You can switch users easily without turning off the computer. 1.

  • Page 33: Installing Software

    XT1100 User Manual Installing Software You can install software located from external storage devices (such as a USB flash disk or external hard drive) to your XT1100 provided they are correctly inserted to one of the XT1100’s input ports. Note Before installing any new software, ensure that its technical requirements match those of your XT1100.

  • Page 34: File Management

    XT1100 User Manual File Management Searching for Files You can use the Search functions to locate files. 1. Tap Start > Search. 2. Enter either all or part of the file name, or a word or phrase in the file. 3.

  • Page 35: Deleting Files

    XT1100 User Manual Deleting Files Use either Windows exploring or the procedure described above to locate the file you wish to delete. 1. Tap to select the file. 2. Tap File > Delete. 3. Tap OK when the confirmation dialog appears...
  • Page 36 XT1100 User Manual...

  • Page 37: Advanced Settings

    XT1100 User Manual Advanced Settings Configuring Pointer Device Settings Tap the pointer device icon in the system tray and select Adjust settings, or tap Start > All Programs > UPDD > Settings to access pointer device settings. Tab the tabs at the top of the screen to access the settings screens.

  • Page 38: Hardware Screen

    XT1100 User Manual Hardware Screen This screen displays any specific hardware settings for the installed pointer devices. Select the device from the Settings For: drop down list. Settings Screen You can configure various settings for your pointer devices from this screen. 1.

  • Page 39: Advanced Screen

    XT1100 User Manual Advanced Screen You can configure advanced pointer device settings from this screen. 1. Select the device from the Settings For: drop down list. 2. Tap and drag the sliders to adjust the setting you require: • Sample rate: Adjusts the amount of information sent from the pointer device to the computer.

  • Page 40: General Screen

    XT1100 User Manual General Screen You can configure general pointer device settings from this screen. You can activate the following functions: • Show icons in system tray: Check to display the pointer device system tray icon (recommended). • Check calibration: Check to display a Check Calibration dialog at the end of calibration (see “Calibrating the Touch Screen”...

  • Page 41: Calibration Screen

    XT1100 User Manual 2. You can test your new settings by clicking on the images under Mouse Click Test. 3. Click Apply to save all settings. Calibration Screen You can configure calibration settings from this screen. This is how the calibration screen will appear when you calibrate pointer devices.

  • Page 42: Status Screen

    XT1100 User Manual Status Screen This screen displays status information for all installed pointer devices. • Tap Reset to reset the list. • Tap Refresh to refresh the list. • Tap Reinitialise to reinitialise a dormant pointer device. About Screen This screen displays software version information.

  • Page 43: Specifications

    XT1100 User Manual Specifications Feature Description Windows Xp Embedded/ Operating System Windows XP Pro / Windows CE 5.0 VIA Eden 1GHz (Ultra Low Voltage Mobile, up to Processor 1.5 GHz) Chipset VIA CX700M (with video acceleration) DDRII400 256MB on board (Use BIOS setup to Memory adjust parameter for expansion memory) 1 x SO-DIMM up to 1GB (factory option)
  • Page 44 XT1100 User Manual Feature Description Power LED: Off: Power off Solid green: battery is charging, system is Blinking green: battery is charging, system is on Solid yellow: Power on, battery low LED Status Blinking yellow: Power on, battery Indicators critically low HDD LED: Green when HDD is being accessed WLAN LED:...
  • Page 45 XT1100 User Manual Feature Description Compliance CE, FCC, cUL/UL 1 x AC adapter & power cord 1 x Cradle Accessories 1x Stylus Others...
