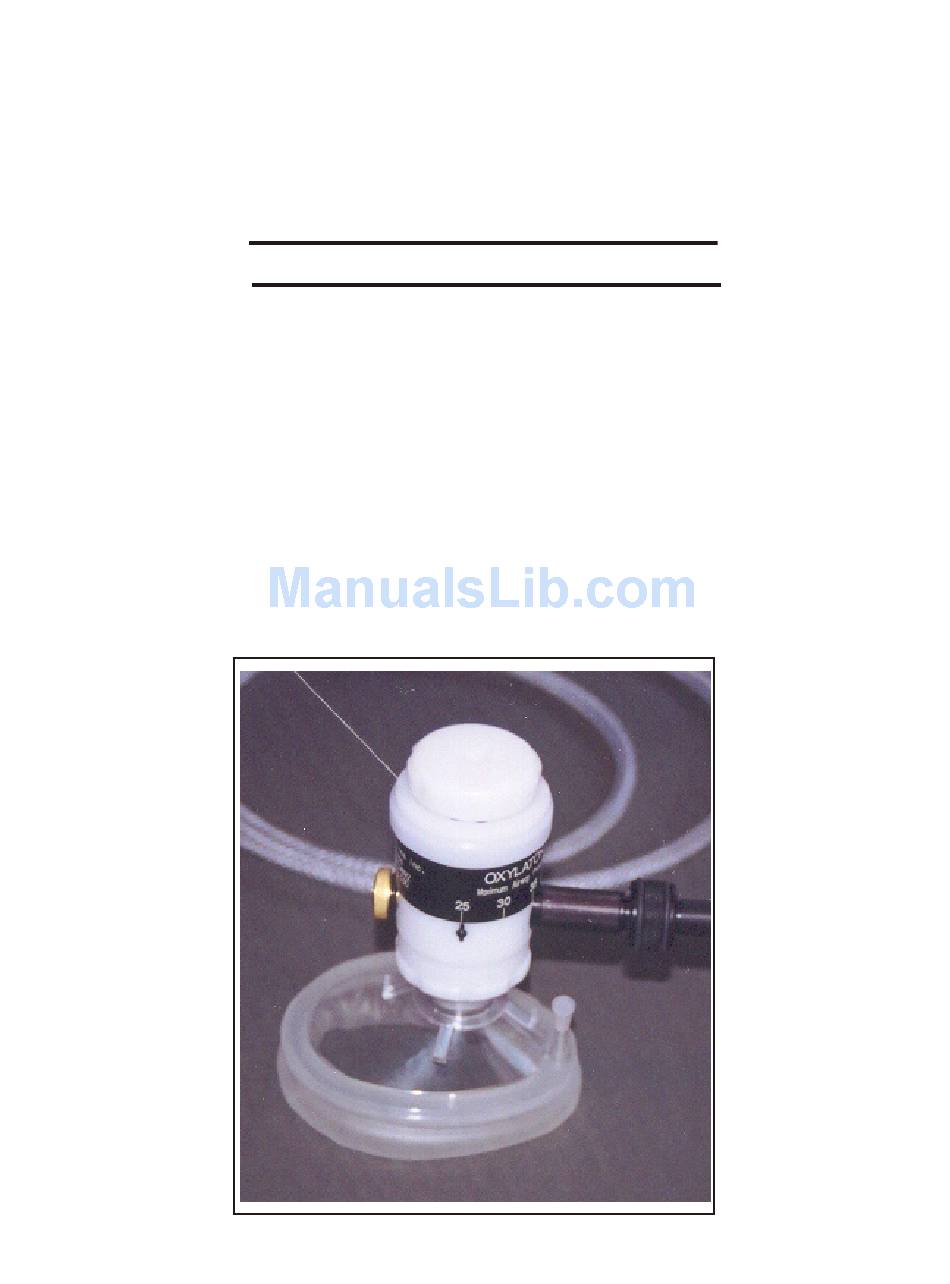

CPR MEDICAL DEVICES INC.
OPERATING MANUAL
FOR
®
OXYLATOR EM-100
RESUSCITATION
AND
INHALATION SYSTEM

Advertisement

loading
Need help?

Need help?

Do you have a question about the EM-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Oxylator EM-100

  • Page 1 CPR MEDICAL DEVICES INC. OPERATING MANUAL ® OXYLATOR EM-100 RESUSCITATION INHALATION SYSTEM...
  • Page 2 ® Symbols used in the Operating Manual for the OXYLATOR EM-100 ® and/or on the OXYLATOR EM-100 unit: WARNING ! Do not use grease or oil! Do not use near open flames or while smoking! Do not use a wrench!

  • Page 3: Table Of Contents

    4, 5 Section 2 --- Technical Description and Features --------------- 6, 7 ® OXYLATOR EM-100 Components (Diagram) ---------------- 8, 9 Section 3 --- Modes of Operation ---------------------------------- Section 4 --- Operating Instructions ------------------------------- Section 5 --- Cleaning and Disinfecting --------------------------...

  • Page 4: Section 1

    Hand-tighten all parts including the hose while connecting or disconnecting it to the unit. Do not dismantle or attempt to remove any components other than those ® required for routine cleaning. Any tampering with the OXYLATOR EM-100 may cause the unit to malfunction, and will automatically void the warranty.
  • Page 5 2 seconds in adults and greater than 1 second in a child), the ® OXYLATOR EM-100 should only be used in manual mode and the inspi- ratory phase restricted to approximately 2 seconds for an adult and 1 second for a child. See page 10, 1.

  • Page 6: Section 2

    ® of the OXYGEN RELEASE BUTTON. A sensing chamber in the OXYLATOR EM-100 allows airway pressure to increase to the maximum limit set, at which point the system shuts off the inspiratory flow, allowing passive exhalation to take place. Upon sensing the completion of the exhalation phase, the valve automatically resets and allows the inspiratory flow to start a new cycle.
  • Page 7 Features: Meets ASTM F920-85 Minimum Performance and Safety Requirements for Resuscitators Intended for Use with Humans Meets ISO 8382, Resuscitators Intended for Use with Humans Meets American Heart Association recommendations for "Adjuncts for Oxygenation, Ventilation, and Airway Control" (Part III, Adult Advanced Cardiac Life Support of Guidelines for Cardiopulmonary Resuscitation and Emergency Cardiac Care, 1992) Extremely light-weight, impact resistant and durable...

  • Page 8: Oxylator Em-100 Components (Diagram)

    ® OXYLATOR EM-100 COMPONENTS Top Cap Exhaust Ports Oxygen Release Button Oxygen Hose Connection - DISS Patient Connector Gauge Port Connection Indicator Inhalator Knob...
  • Page 9 ® OXYLATOR EM-100 COMPONENTS Pressure Release Selector Indicator Valve Tip Valve Stem Venting Ports Spring Main Valve Primary Sensing Chamber Ports Filter Secondary Chamber Cartridge...

  • Page 10: Section 3

    (PEEP) if the inhalator knob (13) is opened counter-clockwise and the ® OXYLATOR EM-100 is operated as in mode 1. This will provide a baseline pressure (PEEP) of 2 to 4 cm H O. INHALATION OF OXYGEN ENRICHED AMBIENT AIR FOR BREATH-...
  • Page 11 OPERATING INSTRUCTIONS ----------------------------------------- ® The following instructions are for the proper use of the OXYLATOR They are to be followed to provide adequate ventilation when attempting Cardio- pulmonary Resuscitation. The user of this device must have knowledge of cpr techniques. The instructions deal strictly in the proper use of the device.
  • Page 12 EM-100 are made from acetal, aluminum and stainless steel. This enables the unit to be cleaned and disinfected routinely after each ® use. The OXYLATOR EM-100 must be cleaned, disinfected and the filter replaced after each use.. ® CLEANING THE OXYLATOR EM-100.
  • Page 13 CAUSE THEM TO MALFUNCTION IN FREEZING TEMPERATURES. DO NOT AT ANY TIME USE GREASE OR OIL FOR ANY PURPOSE ON THE ® OXYLATOR EM-100. DO NOT USE THE UNIT IN OXYGEN DEFICIENT ATMOSPHERES OR NEAR OPEN FLAMES. DO NOT SMOKE WHILE USING ® THE OXYLATOR EM-100 OR ANY OTHER OXYGEN EQUIPMENT.

  • Page 14: Section 4

    CPR MEDICAL DEVICES INC. or its distributors, ® the OXYLATOR EM-100 will be either replaced or repaired to conform to the required standards. Any evidence of tampering or disassembly of the valve for any purpose other than routine cleaning and maintenance shall void this warranty.
  • Page 15 SECTION 8... SPECIFICATIONS ------------------------- ® Model - OXYLATOR EM-100 Weight - 0.25 kg; 0.55 lbs Dimension dia * length - 2.25 in. * 4.25 in., 57mm * 108mm Material of housing - Acetal Required source pressure - between 45 psig to 80 psig, or between 3.0 bar and 5.5 bar...
