Summary of Contents for Microh NEO WASH ZM60TS

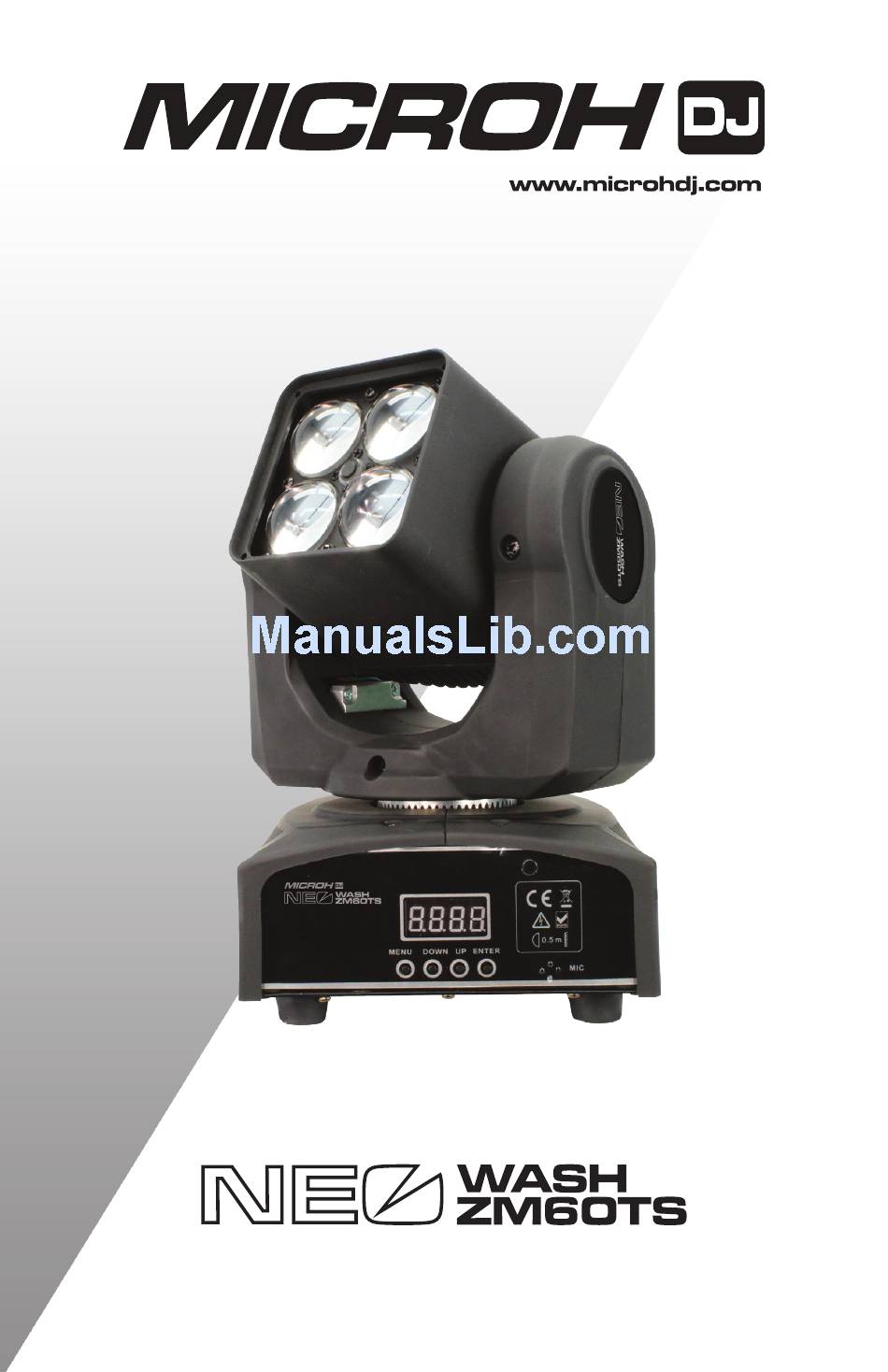

- Page 1 USER MANUAL Please read this user manual before using this product...
- Page 2 Introduction Thank you for purchasing the MICROH DJ NEO WASH ZM60TS. For your own safety and knowledge, please read this manual before installing or operating this device. This manual covers the important information on installation and applications. Please install and operate the fixture according to instructions.
-
Page 3: Safety Warning
Safety Warning • Every person involved with the installation, operation and maintenance of this device must be qualified. • User/installer must follow the instructions of this manual. • Unqualified persons must not open the housing cover and operate the device, or the dealer will not accept liability for any resulting defects or problems. -
Page 4: Operation
Operation Press the function key Menu cycled out of eight different functional effects, digital tube in which the first two digits represent the current function (see menu). The last two digits represent the kinds of functions which the address code, or speed parameters. -
Page 5: Specifications
Operation (cont.) Level 01 Menu Level 02 Menu Tilt Zoom Menu (Menu Test) Green Blue White Dimmer Strobe Test (Automatic Test) Test Rest Reset Features • Built-in Microphone • Pan/Tilt Inversion • 10° - 60° Wash Zoom Specifications Lamp/LED Zoom 4 x 15W 4 in QUAD (RGBW) LED WASH LED Life: 50,000 hrs Voltage:... -
Page 6: Mounting And Installing
As an added safety measure, be sure to attach at least one properly rated safety cable to the fixture. Regardless of the rigging option you choose for your MICROH DJ NEO WASH ZM60TS fixture, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable hanging bracket. -
Page 7: Dmx -512 Control Connections
DMX -512 Control Connections This fixture complies with international USITT DMX standards and can be used with a 3 pin DMX connector. Plug in the 3 pin XLR cable to the female 3 pin XLR output of your controller and the other side to the male 3 pin XLR input of the fixture. - Page 8 DMX Modes CH Mode 10CH 12CH 15CH Value Function 000-255 Pan (0-100%) 000-255 Tilt (0-100%) 000-255 Zoom (0-100%) 000-255 Pan/Tilt (fast to slow) 000-255 Red Dimmer (0-100%) 000-255 Green Dimmer (0-100%) 000-255 Blue Dimmer (0-100%) 000-255 White Dimmer (0-100%) 000-255 Master Dimmer (0-100%) 000-007 Close...
- Page 9 061-063 Colour 15 064-067 Colour 16 068-071 Colour 17 072-075 Colour 18 076-078 Colour 19 079-082 Colour 20 083-086 Colour 21 087-089 Colour 22 090-093 Colour 23 094-097 Colour 24 098-101 Colour 25 102-104 Colour 26 105-108 Colour 27 109-112 Colour 28 113-115 Colour 29...
- Page 10 204-207 Colour Fade Macro 04 208-211 Colour Fade Macro 05 212-215 Colour Fade Macro 06 216-219 Colour Fade Macro 07 220-223 Colour Fade Macro 08 224-227 Colour Fade Macro 09 228-231 Colour Fade Macro 10 (cont) (cont) 232-235 Colour Fade Macro 11 236-239 Colour Fade Macro 12 240-243...
-
Page 11: Maintenance And Cleaning
Never use alcohol solvents. There are no serviceable parts inside the device. Please refer to the instructions under “Installation Instructions.” Should you need any spare parts, please order genuine MICROH DJ parts from your local dealer. CAUTION! Take care using this equipment! High voltage risk of electric shock! - Page 12 For more information please contact: www.microhdj.com info@microhdj.com 905.428.9062...
