Summary of Contents for CLF LED WASH RGBW XL

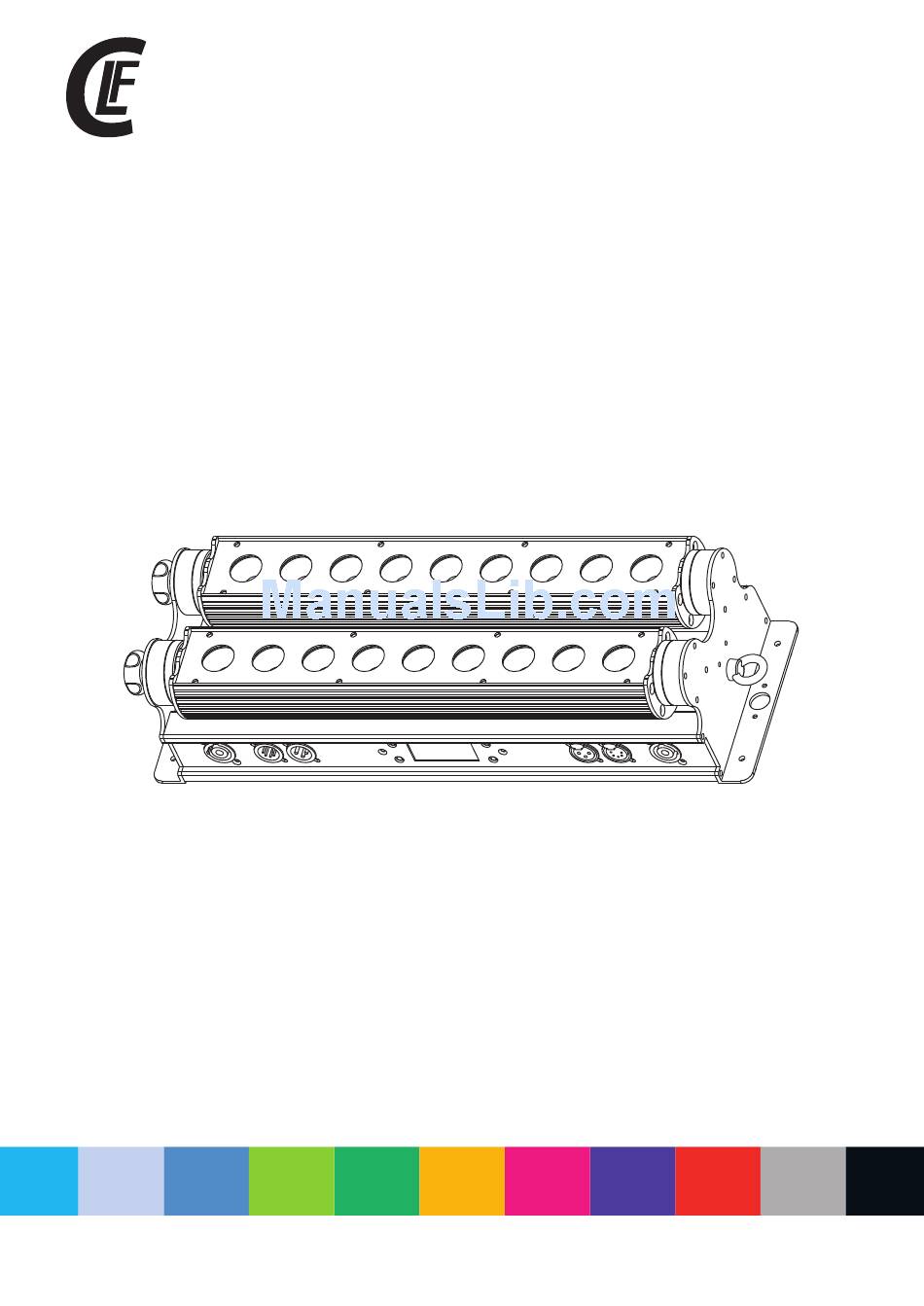

- Page 1 LED WASH RGBW XL manual WWW.CLF-LIGHTING.COM V1.0 JANUARY 2017...
-
Page 2: Table Of Contents
Fastening the fixture to a flat surface Setup Control panel and menu navigation DMX address setting Control Mode Static Color options Auto Show Master / Slave ID Address Instructions Setting Custom program Lock DMX protocols Onboard control menus Blow-out Diagram Specifications WWW.CLF-LIGHTING.COM... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters WWW.CLF-LIGHTING.COM... -
Page 4: Safety Information
Isolate the fixture from power immediately if the power plug or any seal, cover, cable, or other component is damaged, defective, deformed, wet or showing signs of overheating. Do not reapply power until repairs have been completed. WWW.CLF-LIGHTING.COM... - Page 5 Check that all external covers and rigging hardware are securely fastened. Block access below the work area and work from a stable platform whenever installing, servicing or moving the fixture. Do not operate the fixture with missing or damaged covers, shields or any optical component. WWW.CLF-LIGHTING.COM...
-
Page 6: Fixture Overview
MAINS IN MAINS OUT Display 5PIN DMX IN 5PIN DMX OUT 3PIN DMX IN 3PIN DMX OUT G Clamp with Quicklock # 875760 (Optional) WWW.CLF-LIGHTING.COM... -
Page 7: Introduction
Warning! Check that the voltage range specified on the fixtures serial number label matches the local AC mains power voltage before applying power to the fixture. The fixtures accepts AC mains power at 100-240 V nominal, 50/60 Hz. Do not apply AC mains power to the fixture at any other voltage than specified. WWW.CLF-LIGHTING.COM... -
Page 8: Relaying Power To Other Devices
1. Connect the DMX data output from the controller to 3 or 5-pin XLR connector of the nearest fixture. 2. Connect the DMX output of the fixture closest to the controller to the DMX input of the next fixture and continue connecting fixtures output to input. WWW.CLF-LIGHTING.COM... -
Page 9: Physical Installation
(see “Fixture overview” on page 4). Do not use any other part of the fixture as a safety cable attachment point. WWW.CLF-LIGHTING.COM... -
Page 10: Setup
DMX control mode is selected in the CONTROL MODE menu. The fixture has 8 DMX control modes: 10ch 12ch 16ch Dimmer RGBW Strobe Dimmer ( BAR1/2 ) RGBW( BAR1/2 ) Strobe ( BAR1/2 ) Macro color White presets Effect Dimmer /Effect speed WWW.CLF-LIGHTING.COM... -
Page 11: Static Color Options
Then press ENTER button, Input password UP, UP, DOWN, DOWN, press ENTER.All the lights display yellow color when uploading.After upload finish,it will turns to green which means upload successful. If has mistake, it will turns to red color. Press <MODE> on the source unit to exit the upload mode. WWW.CLF-LIGHTING.COM... -
Page 12: Id Address Instructions
ID35 ID58 130~139 ID13 ID36 ID59 140~149 ID14 ID37 ID60 150~159 ID15 ID38 ID61 160~169 ID16 ID39 ID62 170~179 ID17 ID40 ID63 180~189 ID18 ID41 ID64 190~199 ID19 ID42 ID65 200~209 ID20 ID43 ID66 ID21 ID44 ID22 ID45 WWW.CLF-LIGHTING.COM 10.0... - Page 13 020-029 and ID Address=02, the controller can control the second light individually. When using channel 16 select the channel number is 000-010 and ID Address=00, all the lights are in common use at the same DMX address. WWW.CLF-LIGHTING.COM 11.0...
-
Page 14: Setting
Notice: Please operate the program in turn, from the 01st step to the 30th step. When the operating program less than 30 steps, please set the final step value be 0 Repeat step 3 till complete programming. Exit program mode by pressing MODE buttons three times. WWW.CLF-LIGHTING.COM 12.0... -
Page 15: Dmx Protocols
Strobe 8: random burst pulse (fast → slow) 190 - 204 205 - 209 Shutter open Strobe 9:sine wave (fast → slow) 210 - 224 225 - 229 Shutter open Strobe 10: burst (fast → slow) 230 - 244 245 - 255 Shutter open WWW.CLF-LIGHTING.COM 13.0... - Page 16 Auto 10 (AUTO 1-10 cycle) AUTO 110 - 119 Custom program 1 120 - 129 Custom program 2 ..200 - 255 Custom program 10 Dimming /Auto speed Speed 000 225 ID address selection ( page ID address 000 225 WWW.CLF-LIGHTING.COM 14.0...
- Page 17 Strobe 8: random burst pulse (fast → slow) 205 - 209 Shutter open 210 - 224 Strobe 9:sine wave (fast → slow) 225 - 229 Shutter open 230 - 244 Strobe 10: burst (fast → slow) 245 - 255 Shutter open WWW.CLF-LIGHTING.COM 15.0...
- Page 18 Custom program 5 160 - 169 Custom program 6 170 - 179 Custom program 7 180 - 189 Custom program 8 190 - 199 Custom program 9 200 - 255 Custom program 10 Speed 000 225 Dimming /Auto speed WWW.CLF-LIGHTING.COM 16.0...
- Page 19 Note: In HSV mode, Hue stands for the visible light, such as red, yellow, and cyan, etc. Saturation refers to the dominance of hue in the color; when saturation is at 100%, then the color is at its purest. Value is the color's brightness; when value is at 100%, then the color is at its brightest. WWW.CLF-LIGHTING.COM 17.0...
-
Page 20: Onboard Control Menus
Transition Time Of Last Step To Current Step ON / OFF MODE+UP+MODE+DOWN+MODE+UP+MODE+DOWN Default : ON IDSW ON/OFF Password UP+UP+DOWN+DOWN UPLD DIM 1 DIM 2 Default : OFF DIM 3 DIM 4 Password UP+UP+DOWN+DOWN REST Shows software version VX.XX WWW.CLF-LIGHTING.COM 18.0... -
Page 21: Blow-Out Diagram
3PIN & 5PIN XLR input 005374 50° lens Led board 012057 Display cover 011434 Right flange 011516 Display board 005264 Right bearing 011509 3PIN & 5PIN XLR output 005375 Fan net cover 008196 Power out 005357 Wind shield 011503 WWW.CLF-LIGHTING.COM 19.0... -
Page 22: Specifications
* PF = power factor. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. Cooling Forced air Maximum ambient temperature (Ta max.) 40° C Minimum ambient temperature (Ta min.) 5° C Total heat dissipation (calculated, +/- 10%) 820 BTU/hr. WWW.CLF-LIGHTING.COM 20.0... - Page 23 WWW.CLF-LIGHTING.COM...
- Page 24 LED WASH RGBW XL CLFLIGHTING WWW.CLF-LIGHTING.COM...
