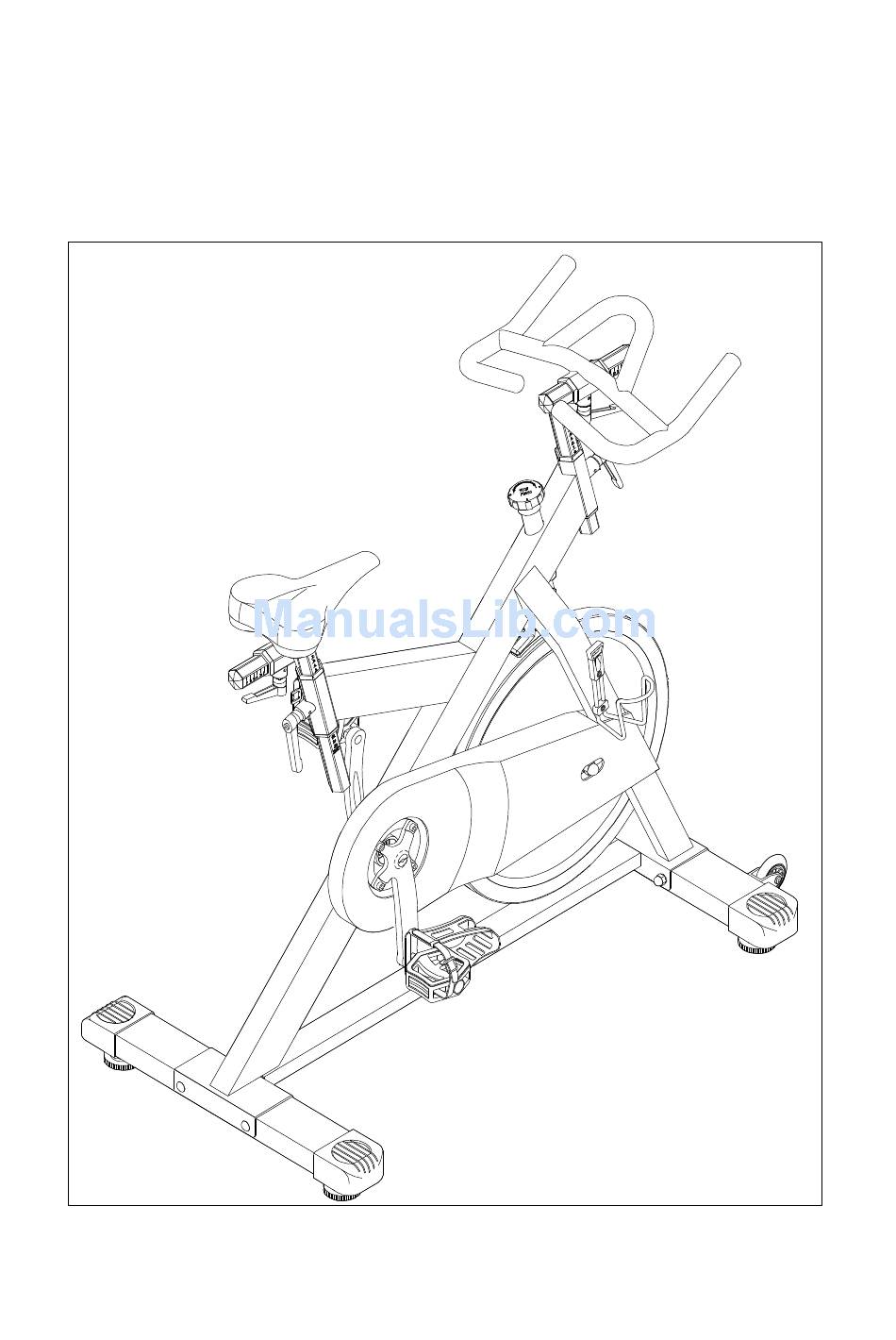

  • Page 1 BIKE V-V1200 MANUAL...
  • Page 2 It has a fixed wheel driven flywheel and should be used under professional supervision. or asking your supplier before using. 2) Installation – it is important that the V-V1200 is correctly assembled and we recommend that installation and assembly be carried out by suitably qualified personnel.
  • Page 3 V-V1200 Assembly Diagrams...
  • Page 4 V-V1200 ASSEMBLY Step 1 (foot) Attach the front foot (6) to the frame using the bolt (3), washer (4) and nut (5). Step 2 (foot) Attach the rear foot (2) to the frame using the bolt (3), washer (4) and nut (5).
  • Page 5 Step 4. (handlebar & stem) Attach handlebar (11) onto handle bar stem (19), silde handlebar (11) until reach your required position. Using lock lever (17) for tightening. And then put the handlebar-stem set onto front tube, adjust to your ideal position., and then using lock lever to tighten.
  • Page 6 Step 6. 7. (bottle cage) Attach screws (10) into bottle cage (9) on front fork in required position using a 4mm allen key.
  • Page 7 V-V1200 Diagrams...
  • Page 8 V-V1200 Part List part no. description q'ty part no. description q'ty 1 Main Frame 41 Brake pad 2 Rear Ground Tube 42 Screw M6*P 1.0*20L 3 Groung Tube Fixed Bolt 43 Washer 13*6*1.5T 4 Washer 44 Nut M6*P1.0 5 Nut...
