Summary of Contents for Apia CIMI line 8

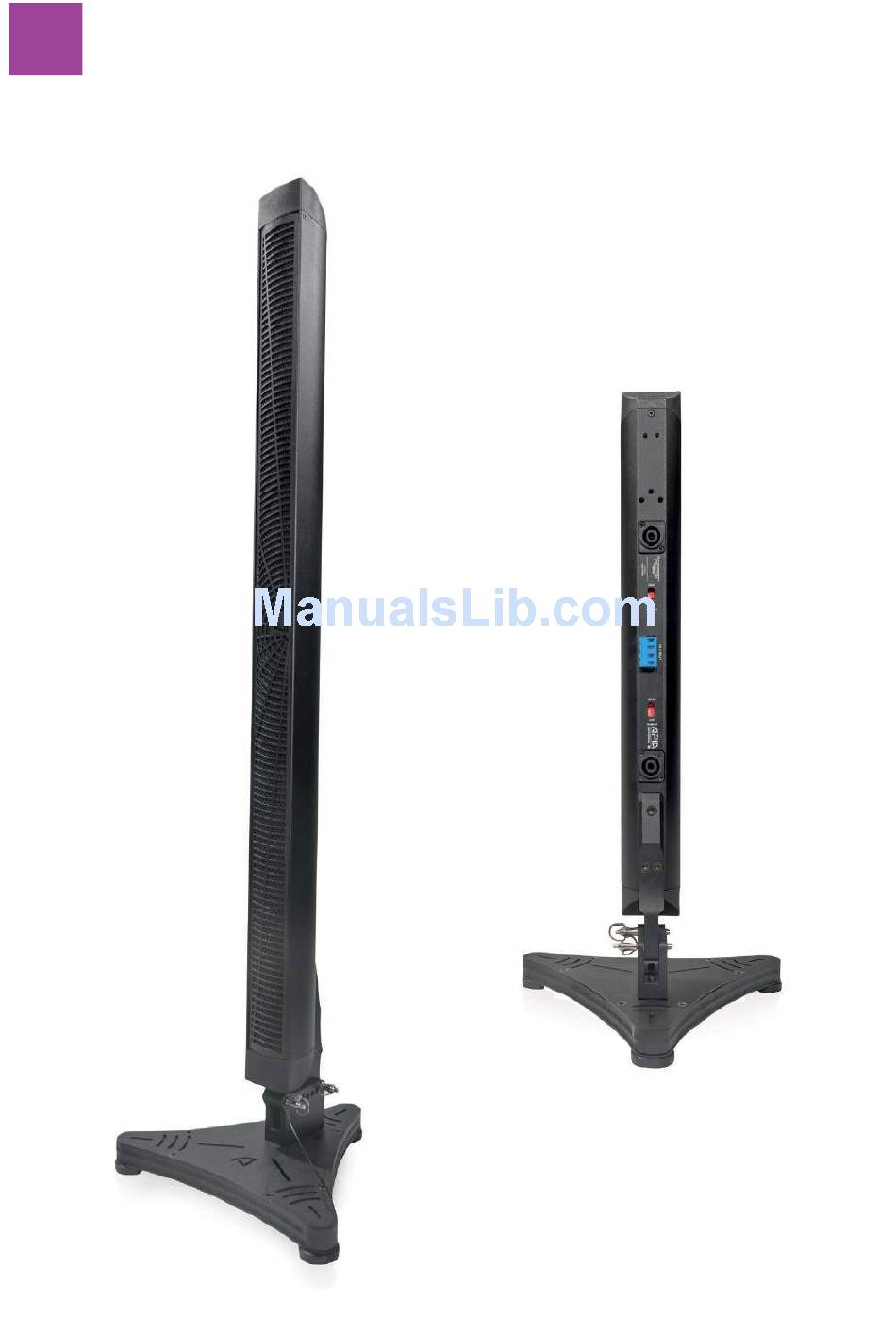

- Page 1 CIMI line 8/16 USER MANUAL...
- Page 2 Read this manual Heed all SAFETY INSTRUCTIONS as well as DANGER and OBLIGATION warnings N ever incorporate equipment or accessories not approved by APIA PRO AUDIO Read all the related PRODUCT INFORMATION documents before exploiting the system The product information document is included in the shipping carton of the related system component.
-
Page 3: Table Of Contents
CIMI line 8/16 USER MANUAL CONTENTS 1. INTRODUCTION 2. KEY FEATURES 3. APPLICATIONS 4. PHYSICAL 4.1 CIMILINE 8 LAYOUT CIMILINE 16 LAYOUT 5. WIRING 5. 1 IMPEDANCE SW ITCH 5.2 COVERAGE SW ITCH 6.CONFIGURATIONS AND ACCESSORIES 6.1 SUSPENDING F ROM THE F LY- BAR 6.2 HANGING ON THE WALL... -
Page 4: Cimi Line 8/16
CIMI line 8/16 USER MANUAL 1. INTRODUCTION The Apia Pro Audio Cimiline Series are weatherproof passive speaker systems, comprised of 2” neodymium magnet transducers h oused in an elegant aluminum casing painted with the robust electrostatic powder painting system which are available in custom RAL colors. -
Page 5: Physical
CIMI line 8/16 USER MANUAL 4. PHYSICAL 4.1 CIMILINE 8 LAYOUT 70 mm 61 mm Weight 4.5 kg (9.9 lbs) cimiline 8 WEİGHT: SCALE:... -
Page 6: Cimiline 16 Layout
CIMI line 8/16 USER MANUAL 4.2 CIMILINE 16 LAYOUT 70 mm 61 mm Weight 8 kg (17.6 lbs) cimiline 16 SCALE: WEİGHT:... -
Page 7: Wiring
CIMI line 8/16 USER MANUAL 5. WIRING OPTION Cimiline 8 and Ciwiline 16 internal wiring is designed to pick up audio power signal from pins 1+ / 1- of a Speakon NL4 connector. Pins 1+ and 1-, such as pins 2+ and 2-, are directly wired from one socket to the other, so the two sockets are equivalent and can be used to connect the speaker to the ampli er or to connect the speaker to another one driven in parallel by the same ampli er channel. -
Page 8: Coverage Sw Itch
CIMI line 8/16 USER MANUAL 5.2 COVERAGE SW ITC H Cimiline 8 and Cimiline 16 features a switch which allows users to select the vertical coverage of the speaker. Flood coverage sets a wide vertical di usion. Flood coverage is suggested for single speakers in di used short throw applications to obtain maximum di usion with a minimum footprint. -
Page 9: Configurations And Accessories
USER MANUAL 6.CONFIGURATIONS AND ACCESSORIES Apia Pro Audio o ers a variety of dedicated accessories to mount and interconnect the speakers for a wide range of applications. In this section we introduce you to the main accessories available for this product. -
Page 10: Hanging On The Wall
CIMI line 8/16 USER MANUAL 6.2 HANGING ON THE WALL CM WALL H-V accessories are used to mount a speaker on a wall. WALL-H WALL-V CM WALL-H-V 6.3 STANDING ON THE BASE The CM-BASE accessory assists in standing up to 2 meters of Cimiline 8/Cimiline 16. For proper installation and operation, connect the units to the base with CM-FOOT and CM-JOINT accessories. -
Page 11: Standing On A C-Sub Subwoofer
CIMI line 8/16 USER MANUAL 6.4 STANDING ON A C-SUB SUBWOOFER Up to two meters of Cimiline 8/Cimiline 16 can be mounted on a C-SUB subwoofer by using the CM-FOOT and CM-JOINT accessories. Acoustically speaking, two Cimiline 16 perfectly match with a C-SUB subwoofer. -
Page 12: Standing On A C-Infra Subwoofer
CIMI line 8/16 USER MANUAL 6.5 STANDING ON A C-INFRA SUBWOOFER Up to two meters of Cimiline 8/Cimiline 16 can be mounted on a C-INFRA subwoofer by using the CM-FOOT and CM-JOINT accessories. Acoustically speaking, two Cimiline16 perfectly match with a C-INFRA subwoofer. -
Page 13: Cimiline 8 Specifications
CIMI line 8/16 USER MANUAL 7. CIMILINE 8 SPECI FICATI ONS S YS T EM D ATA USABLE BANDWIDTH Frequency response (-5 d B standard) 150 Hz - 19 k Hz Max. sound pressure (1m, free field) 124 d B SPL... -
Page 14: Cimiline 16 Specifications
CIMI line 8/16 USER MANUAL 8. CIMILINE 16 SPECI FICATI ONS S YS TEM D A TA USABLE BANDWIDTH Frequency response (-5 d B standard) 150 Hz - 19 k Hz Max. sound pressure (1m, free field) 130 d B SPL...
