Smittybilt 2600i User Manual

Digital inverter/ generator
Hide thumbs

Advertisement

Table of Contents

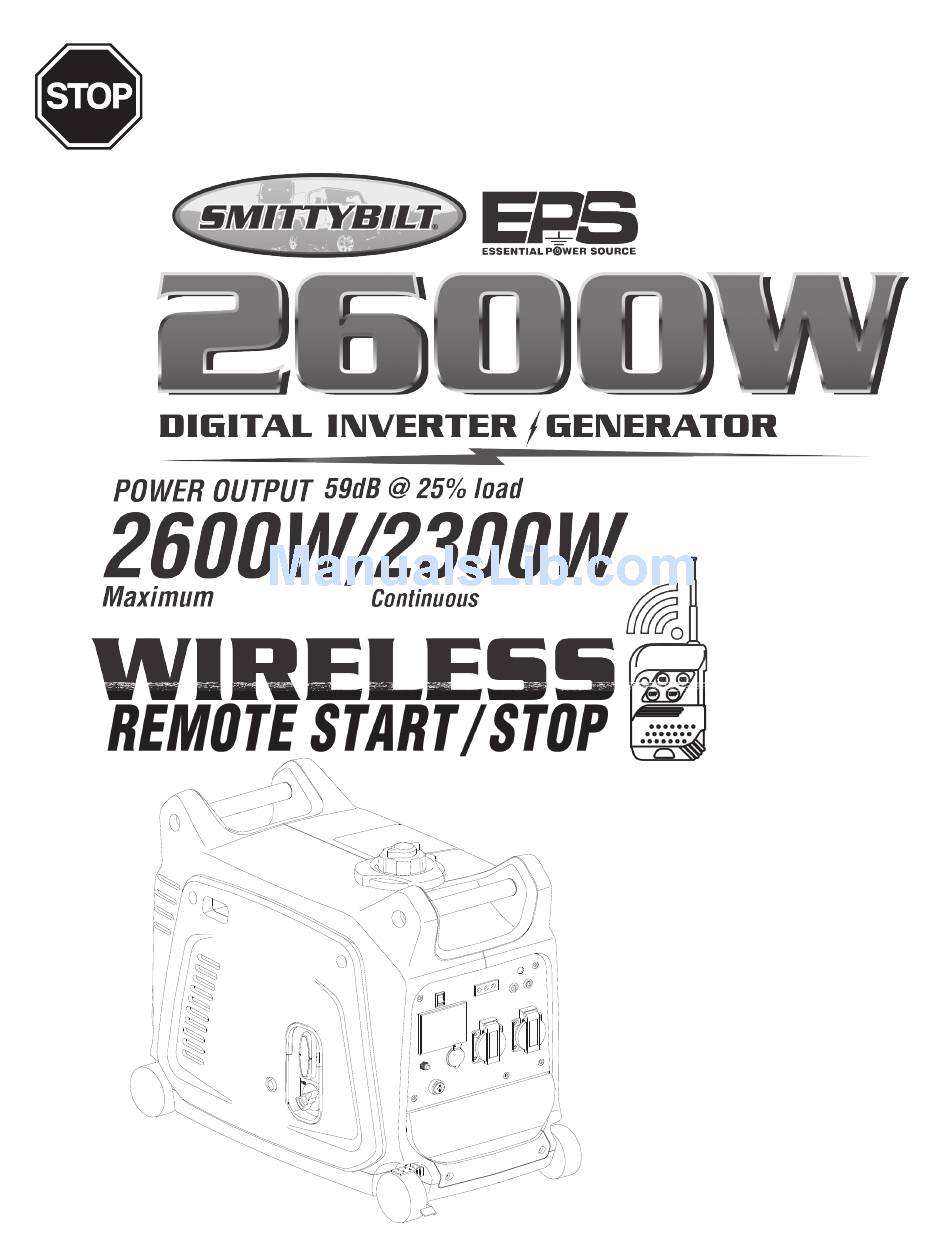

IMPORTANT Please make certain that persons who are to use this equipment
thoroughly read and understand this user's manual prior to operation
USER'S
MANUAL
SMITTYBILT DIGITAL INVERTER GENERATOR | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2600i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Smittybilt 2600i

  • Page 1 IMPORTANT Please make certain that persons who are to use this equipment thoroughly read and understand this user’s manual prior to operation USER’S MANUAL SMITTYBILT DIGITAL INVERTER GENERATOR | 1...

  • Page 2: Table Of Contents

    6.TROUBLE SHOOTING ..................15 7.STORAGE ......................16 8.SPECIFICATIONS ....................17 9.SPECIFIATION ...................... 18 10. WIRING DIAGRAM .................... 19 10.REPLACEMENT PARTS ..................20 10.GENERATOR WEARING PARTS LIST ..............21 10.WEARING PARTS REPLACEMENT INSTRUCTIONS ........... 22 2 | SMITTYBILT DIGITAL INVERTER GENERATOR...

  • Page 3: Safety Information

    • When operating or transporting the machine, be sure it is kept upright. If it tilts, fuel may leak from the carburetor or fuel tank. SMITTYBILT DIGITAL INVERTER GENERATOR | 3...

  • Page 4: Control Function

    (7) Choke lever (17) Overload indicator light (27) Parallel connection socket (8) Recoil starter (18) AC pilot light (28)Parallel connection control (9) Fuel cock (19) Smart throttle socket (10) Brake lever (20) Info panel SMITTYBILT DIGITAL INVERTER GENERATOR | 5...
  • Page 5 Reduce the load to within specified generator rated output if the DC circuit protector turns off. 5. FUEL cocK The fuel cock is used to supply fuel from the tank to the carburetor. 6 | SMITTYBILT DIGITAL INVERTER GENERATOR...

  • Page 6: Pre-Operation Check

    • Do not fill above the top of the fuel filter or it may overflow when the fuel heats up later and expands. • Wipe off spilt fuel thoroughly before starting engine. • Keep away from open flames. SMITTYBILT DIGITAL INVERTER GENERATOR | 7...
  • Page 7 (-) terminal of the battery. Do not reverse these positions. • Be sure the battery is installed on the battery mount tray securely. • Install the cover and tighten the screw. cAUtioN: Recommended battery: 12V6AH 8 | SMITTYBILT DIGITAL INVERTER GENERATOR...

  • Page 8: Operation

    2. Turn the engine switch to the “StARt” position. 3. Turn on “cHoKE”. 4. Turn the engine switch to the “RUN” position 5. Warm up the engine without a load for a few minutes. 6. Turn “cHoKE” off. SMITTYBILT DIGITAL INVERTER GENERATOR | 9...
  • Page 9 (b) Reduce the total wattage of connected electric devices within the application range. (c) Check for blockages in the cooling air inlet and around the control unit. If any blockages are found, remove. (d) After checking, restart the engine. 10 | SMITTYBILT DIGITAL INVERTER GENERATOR...
  • Page 10 (c) The DC circuit protector is to be set to “ON” after confirming the connection, if the protector is in “OFF” position. cAUtioN: Be sure the smart throttle switch is turned off while charging the battery. * Always charge per battery manufacture recommendations. SMITTYBILT DIGITAL INVERTER GENERATOR | 11...
  • Page 11 2. Turn the engine switch to “StoP” position. Click remote switch to the “oFF” position. 3. Turn the fuel cock lever to “oFF”. 4. Allow engine to cool before restarting. ENGINE SWITCH STOP START 12 | SMITTYBILT DIGITAL INVERTER GENERATOR...

  • Page 12: Periodic Maintenance

    • Fittings / Check all fittings and Fasteners fasteners correct if necessary. • Crankcase Check breather breather hose for cracks or damage. Replace if necessary • Generator Check the pilot light comes on SMITTYBILT DIGITAL INVERTER GENERATOR | 13...
  • Page 13 3. Wash the element in solvent and dry. 4. Oil the element and squeeze out excess oil. The element should be wet but not dripping. 5. Insert the element into the air filter. 6. Install the cover 14 | SMITTYBILT DIGITAL INVERTER GENERATOR...
  • Page 14 The engine and muffler will be very hot after the engine has been run. Avoid touching the engine and muffler while they are still hot with any part of your body or clothing during inspection or repair. SMITTYBILT DIGITAL INVERTER GENERATOR | 15...

  • Page 15: Trouble Shooting

    Circuit breaker (Ac) to “oFF”…Stop the engine, then restart. Circuit breaker (Dc) to “oFF” …Press to reset the DC protector (6) Generator output will be reduced in high altitude conditions and while using E10 fuel. For best performance use non-ethanol blended fuel. 16 | SMITTYBILT DIGITAL INVERTER GENERATOR...

  • Page 16: Storage

    3. Turn off fuel valve and allow generator to continue running till it runs out of gasoline. Turn off generators ignition system. 4. Top off fuel tank with treated gasoline. Air in the fuel tank will promote fuel deterioration. SMITTYBILT DIGITAL INVERTER GENERATOR | 17...

  • Page 17: Specifications

    SPEciFicAtioN 149.5 cc 5.4 HP / 5500 rpm 6.4 Liters / 1.69 gal 4.8 hours (100% load) 6.7 hours (50% load) 0.95 Quarts / 0.9 Liters 24.2”x13.5”x19.9” 25.2”x14.2”x21.3” 37 kgs/81.6 lbs 40 kgs/88.2 lbs 18 | SMITTYBILT DIGITAL INVERTER GENERATOR...

  • Page 18: Specifiation

    Invert cell winding switch OUTPUT Control OVERLOAD winding LOW OIL Oil sensor Ignition winding Spring winding High pressure Spark wrap plug Engine switch BATTERY RECTIFIER FUSE 3A FUSE 3A BREAKER winding ENGINE SWITCH CONTINUTY SMITTYBILT DIGITAL INVERTER GENERATOR | 19...

  • Page 19: Replacement Parts

    2786-27 Battery hold down strap 2786-28 Ignition Key 2786-29 Spark Plug 2786-30 Choke assy 2786-31 Battery charging cord 2786-32 Inverter assy 2786-33 Ignition coil 2786-34 Control panel assy 2786-35 Wheel's brake 2786-36 Hardware set 20 | SMITTYBILT DIGITAL INVERTER GENERATOR...
  • Page 20 Oil filter 1set Air filter Assy 1set Starting reply 1set Quadripuntal fuel pump 1set Fuel strainer Note: Customer can easy to replaced all wearing parts. Fuel filter Fuel tubes Spark attestor Muffler gasket Carburetor 1set SMITTYBILT DIGITAL INVERTER GENERATOR | 21...

  • Page 21: Generator Wearing Parts List

    1. Remove right side cover 2. Remove oil filler cap 3. Check oil level 4. Install right side cover tightly and add oil. DO 5. Install the oil filler cap tightly NOT screw in cap when checking oil. 22 | SMITTYBILT DIGITAL INVERTER GENERATOR...

  • Page 22: Wearing Parts Replacement Instructions

    3. Pull air filter assy outward replace if necessary bolts 4. Open air filter cover 4. Install right side cover tightly. 5. Tighten air filter cover. 6. Close air filter cover 7. Reinstall air filter. SMITTYBILT DIGITAL INVERTER GENERATOR | 23...
  • Page 23   f uel   fi lter   ,   r eplace     i f   n ecessary 4. Install fuel filter back 5. Install fuel tubes back 6. Install right side cover back. tightly. 24 | SMITTYBILT DIGITAL INVERTER GENERATOR...
  • Page 24 Check   m uffler   g asket,   r eplaced   i f   n ecessary 1. Take muffler 2. Unscrew muffler bolts, take muffler out 3. Install muffler cover tightly. cover out. 4. Install muffler back tightly. SMITTYBILT DIGITAL INVERTER GENERATOR | 25...
  • Page 25   i f   n ecessary Unscrew   4 bolts,remove   control   p anel 1. Remove 2. Remove old ignition controller. control panel. 3. Install control panel back tightly. 4. Install new ignition controller. 26 | SMITTYBILT DIGITAL INVERTER GENERATOR...
  • Page 26 3:   R eplace   w ith   n ew   q udripuntal   f uel   p ump 2. Remove fuel tubes ,then take 3. Install right side cover tightly. 1. Remove right side cover qudripuntal fuel pump out. 4. Replace with new qudripuntal pump. SMITTYBILT DIGITAL INVERTER GENERATOR | 27...
