Summary of Contents for Corsynth C108 Dual VCA
-
Page 1: User Manual

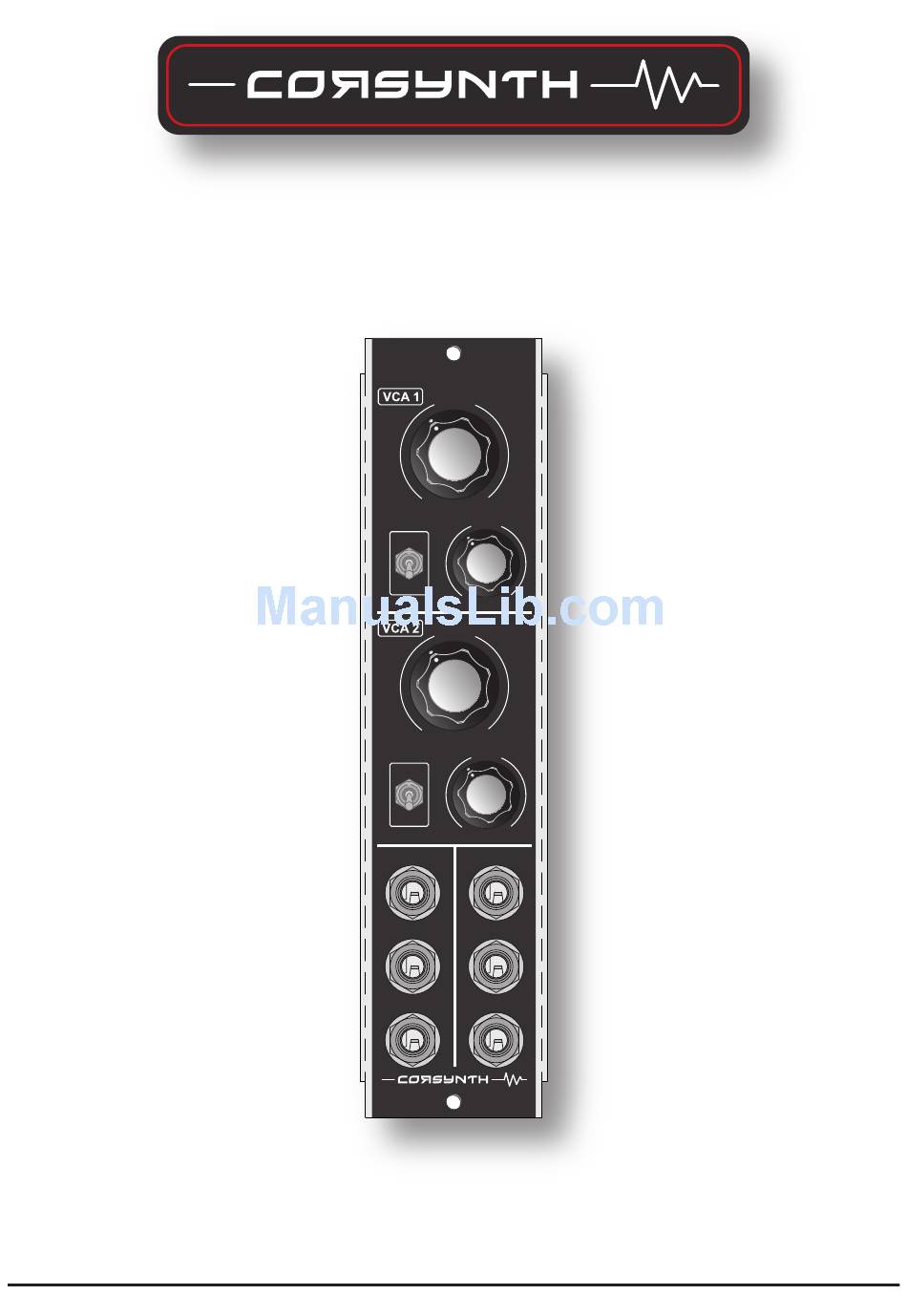

C108 Dual VCA C108 DUAL VCA GAIN CV LEVEL GAIN CV LEVEL VCA 1 IN VCA 2 IN CV 1 IN CV 2 IN VCA 1 OUT VCA 2 OUT USER MANUAL... - Page 2 C108 DUAL VCA GAIN The C108 Dual VCA is a dual voltage controlled ampli er with selectable linear and exponential response. VCAs are one of the most important modules in a modular synth. In addition to the more obvious use , that it’s volume...
- Page 3 C108 dual vca C108 Dual VCA C108 DUAL VCA GAIN Initial gain (VCA 1) CV LEVEL Response selector switch Control voltage Linear / Exponential (VCA 1) level (VCA 1) GAIN Initial gain (VCA 2) CV LEVEL Response selector switch Control voltage...
-
Page 4: Control Description
C108 dual vca CONTROL DESCRIPTION THESE CONTROLS ARE THE SAME FOR VCA 1AND VCA2 GAIN GAIN This potentiometer sets the initial gain of the VCA. If there is not CV signal connected to the VCA : 0 = The VCA is closed and there is no signal at the output. - Page 5 C108 dual vca VCA 1 OUT VCA 1 OUT VCA 1 output. VCA 2 IN VCA 2 IN VCA 2 signal input. This input can be used with audio and control signals. CV 2 IN CV 1 IN Control voltage input for the VCA 2 gain. The amount of...
-
Page 6: Technical Data
C108 Dual VCA Trimmers and power connectors Exponential gain (VCA 1) IMPORTANT !!!! This module has two power connec- CV Reject (VCA 1) tors (Synthesizers.com and MOTM). Only one is needed to power the module. (Synthesizers.com or MOTM). Never connect both at the same time. - Page 7 C108 Dual VCA MODULAR LEVEL MODULAR SYNTHS HTTP://WWW.CORSYNTH.COM...
