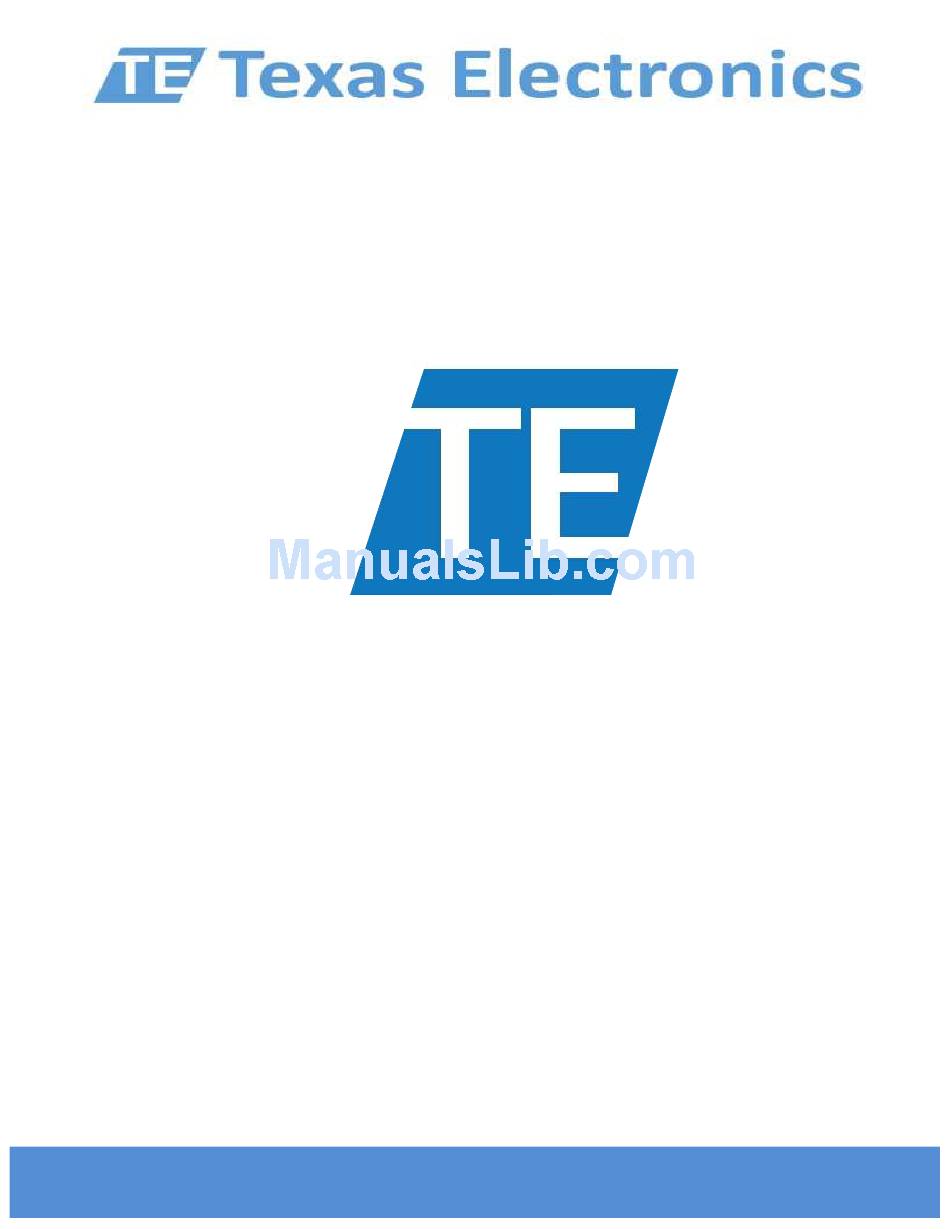

- Page 1 “Relied on Worldwide in the Most Extreme Conditions” Complete Weather Station User’s Manual Texas Electronics, Inc. Dallas, TX 75237 Fax.214.631.4218 4230 Shilling Way Tel.214-631-2490 www.texaselectronics.com...
- Page 2 Thus, a momentary switch closure takes place with each tip of the bucket. Connecting the sensor to an event counter on an electronic datalogger or display module will allow record keeping of accumulated rainfall. If an analog signal representing rainfall accumulation is required, Texas Electronics, Inc. manufactures a suitable conditioning circuit.
-
Page 3: Ordering Information
ORDERING INFORMATION Model # Description Rain Gauge, 6.06” collector, English TR-525I (Please specify for calibration of 0.2 mm/tip) Rain Gauge, 8.00” collector, English TR-525USW TR-525M Rain Gauge, 25 mm collector, Metric Optional Parts / Accessories HOBO Datalogger and Software MB-525 Pole Mounting Base FC-500 Field Calibration Kit... -
Page 4: Installation Instructions
TO CHECK CALIBRATION: A field calibration kit is available from Texas Electronics, Inc. Model No. FC-525 is a kit that consists of a holding tank, pre-measured beaker, two orifices, cleaning tools and instructions. - Page 5 TO CHECK CALIBRATION: A field calibration kit is available from Texas Electronics, Inc. Model No. FC-525 is a kit that consists of a holding tank, pre-measured beaker, two orifices, cleaning tools and instructions.
- Page 6 Model TTH-1315 Temperature Humidity Sensor DESCRIPTION The Texas Electronics, Inc. Model TTH-1315 Sensor utilized a Rotronics HygroClip S3 Humidity Temperature Probe with interchangeable sensing elements that do not require calibration. The unit is encased in a corrosive-resistant spun aluminum radiation shield that allows for wind aspiration and protection from the sun's UV rays.
-
Page 7: Features And Benefits
Sampling Time: <0.7 Maximum cable length: 5 m / 15 ft. for direct output Up to 100 m / 325 ft. with signal amplifier Connection Type: Bayonet cap on mounting connector Protection grade: IP65 (probe to connector) Supply voltage: 3.5 - 50VDC Current consumption: <4 mA Minimum excitation time:... - Page 8 MODEL TD-4 WIND DIRECTION SENSOR DESCRIPTION: The Texas Electronics, Inc. TD-4 Wind Direction Sensor is a mechanical style wind meter that measures the horizontal wind azimuth. This unit combines small physical size with superior bearings to meet the EPA's Prevention of Significant Deterioration (PSD) starting threshold requirements. The TD-4 wind direction sensor is a freestanding device for measuring the direction of wind.
- Page 9 FEATURES & BENEFITS • Superior low starting threshold • Long life hybrid dual wiper potentiometer • No plastic parts for extremely long life • Precision stainless steel bearings for stability and repeatability • Crossarm included with purchase of matching wind speed sensor •...
- Page 10 MODEL TV- 4 WIND SPEED SENSOR DESCRIPTION: The Texas Electronics, Inc. TV-4 Wind Speed Sensor is a mechanical style anemometer that measures the horizontal velocity of wind. This unit combines small physical size with superior bearings to meet the EPA's Prevention of Significant Deterioration (PSD) starting threshold requirements.
- Page 11 Physical: Cup Wheel Diameter: 6.0" (15.3 cm) Overall Height: 4.75" (12.1 cm) Turning Radius: 3.0" (7.6 cm) Cup Diameter: 2.0" (5.1 cm) Bearings: APEC 3 or better Mounting Base: Screw attachment, 10-32 machine screw Weight: 0.5 lbs (0.23 kg) less cable Cable: 60', 22 gauge 3 conductor Warranty:...
- Page 12 MODEL SP-LITE SOLAR RADIATION SENSOR DESCRIPTION: The Texas Electronics, Inc. SP-Lite Solar Radiation Sensor utilizes a Kipp & Zonen Silicon pyranometer mounted in a white powder-coat finished aluminum bracket that provides a stable upward-facing installation. It measures the solar energy that is received from the entire hemisphere (180 degrees field of view). The output is expressed in Watts per square meter.
- Page 13 Mechanical: Material of housing: Anodized aluminum contained in white powder-coat finished aluminum mounting bracket Dimensions: Height from surface to top of level Pyranometer - 6.25"(15.87cm) Width - 2.75" (6.98 cm) Length - 8.25" (20.95 cm) Weight: 3 lbs. (1.36 kg.) with 60 ft. cable Environmental: Working temperature range - -30°...
- Page 14 (Shown with cover removed) DESCRIPTION: The Texas Electronics, Inc. TB-2012M Barometric Pressure Sensor uses an active solid-state device to sense barometric pressure. Self-contained electronics provide a regulated voltage to the solid-state sensor and amplification for the signal output. The unit's range of 26" to 32" or 878 mb to 1080 mb of mercury allows it to be used at elevations up to 1800 feet or 548.64 meters above sea level.
- Page 15 FEATURES & BENEFITS • Interfaces to virtually all data acquisition systems • Can be used up to 1800 ft. elevation without factory modification • Over 1800 ft. elevation applications available • Easy installation and maintenance • Over 5 years in production •...
- Page 16 PROPER EXPOSURE OF METEOROLOGICAL INSTRUMENTS Generally recognized guidelines follow which depict "ideal" sensor mounting locations. These guidelines or "rules of thumb" are only suggestive in nature in an attempt to aid the user to selecting optimum representative sampling locations for a particular sensor. Reference was made to US Weather Bureau Installation criteria in preparing this data (See Reference 1).
-
Page 17: Solar Radiation Sensors
Roof-mounting of rain gauges should be avoided when possible. Air currents at heights other than at ground level have been observed to cause an apparent decrease in rainfall catch commensurate with the increase in mounting height above ground level. Objects which individually or in small groups constitute a "windbreak" reduce prevailing wind speed in the vicinity of the gauge. - Page 18 Additional cable lengths are available from Texas Electronics if needed. Step 12: Calibrate the Wind Vane.
- Page 19 Two methods of aligning the vane are available. The first method involves loosening the large set screw at the bottom of the wind direction sensor so that it will rotate on the U-arm. Turn the bottom half of the sensor until the compass readings and the indication match then retighten the set screw.
- Page 20 Warranty Texas Electronics, Inc. (hereafter TEI) warrants the equipment manufactured by it to be free from defects in material and workmanship. Upon return, transportation charges prepaid to TEI, within three (3) years of original shipment of sensors and one (1) year of original shipment of electronics, recorders and indicators, TEI will repair or replace, at its option, any equipment which it determines to contain defective material or workmanship, and will return said equipment to purchaser, F.O.B., TEI.
