QD Dynamics Pi HSC505-32 User's Information Manual

Home security controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

________________________________________________________________________________________________
Downloaded from
www.Manualslib.com

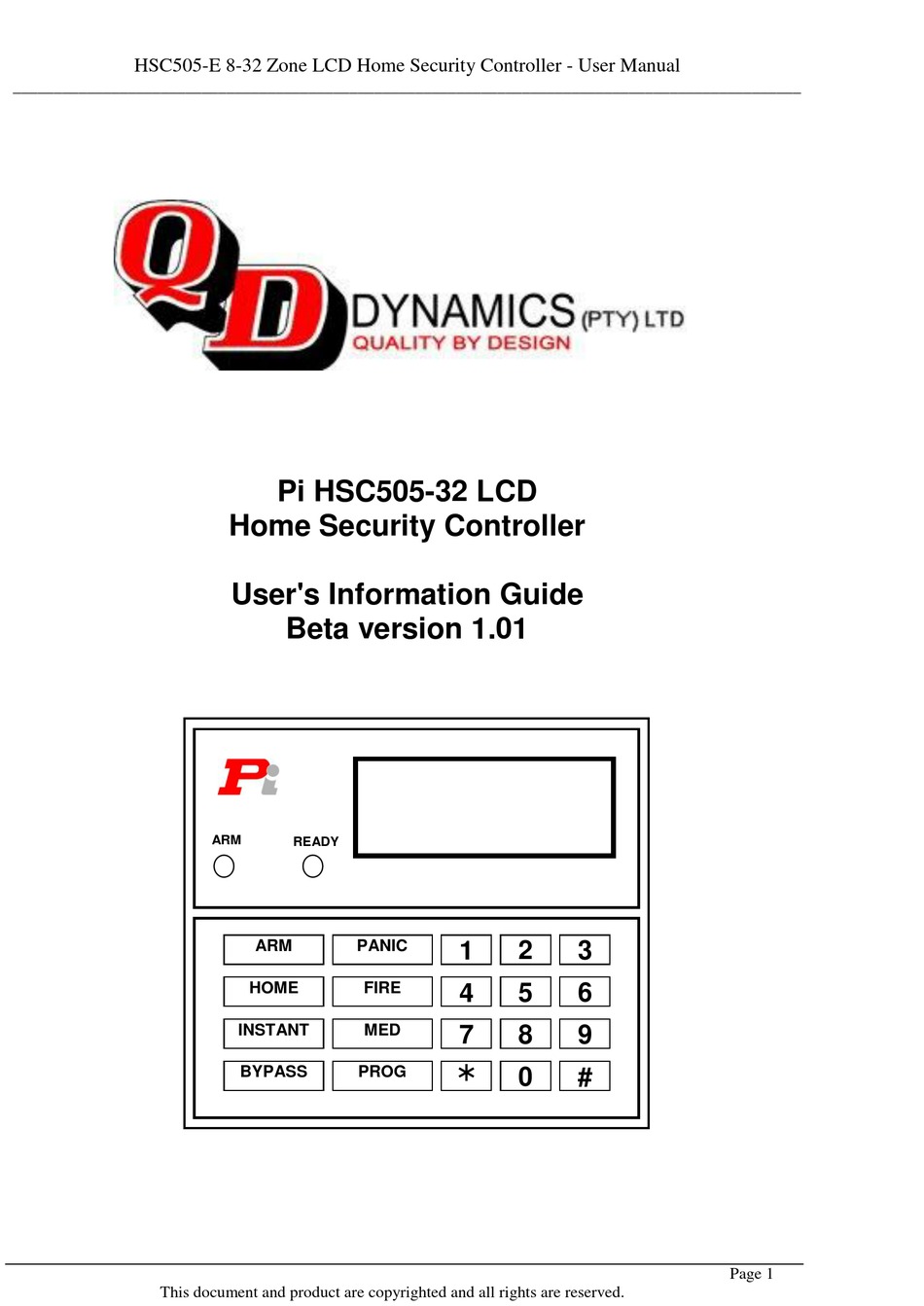

HSC505-E 8-32 Zone LCD Home Security Controller - User Manual
Pi HSC505-32 LCD
Home Security Controller
User's Information Guide
Beta version 1.01
ARM
READY
ARM
HOME
INSTANT
BYPASS
This document and product are copyrighted and all rights are reserved.
manuals search engine
PANIC
1
2
FIRE
4
5
MED
7
8
PROG
0
3
6
9
#
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pi HSC505-32 and is the answer not in the manual?

Questions and answers

Amazing Alarms
April 10, 2025

How can I set time and date

-1
1 comments:
Mr. Anderson
April 10, 2025

To set the time and date on the QD Dynamics Pi HSC505-32:

1. Enter user programming.
2. Select option 6.
3. Press # to accept.
4. The keypad displays “Set time and date” with a format like “hxx:mxx”.
5. Enter the hour in 24-hour format and the minutes.
6. The keypad then displays “Set date” with a format like “dxx:mxx:yxx”.
7. Enter the day, month, and year as double digits.
8. The keypad returns to normal operation.

This answer is automatically generated

0

Summary of Contents for QD Dynamics Pi HSC505-32

  • Page 1 HSC505-E 8-32 Zone LCD Home Security Controller - User Manual ________________________________________________________________________________________________ Pi HSC505-32 LCD Home Security Controller User's Information Guide Beta version 1.01 READY PANIC HOME FIRE INSTANT  BYPASS PROG Page 1 This document and product are copyrighted and all rights are reserved.
  • Page 2 HSC505-E 8-32 Zone LCD Home Security Controller - User Manual ________________________________________________________________________________________________ Congratulations on your purchase of the PI HSC505-32. The South African designed and manufactured solution to all your electronic security requirements. Please take the time to read and familiarize yourself with the terms used throughout the user manual.
  • Page 3 HSC505-E 8-32 Zone LCD Home Security Controller - User Manual ________________________________________________________________________________________________ Home - The system or partition is armed with certain zones being omitted that have been decided on by you and the installer, to allow free movement within the premises while the perimeter is armed.
  • Page 4 HSC505-E 8-32 Zone LCD Home Security Controller - User Manual ________________________________________________________________________________________________ Low battery - The on board battery is not charged to capacity and if left could result in a system failure. Usually due to mains power switched off. Mains failure - The ac mains voltage has been interrupted to the control panel.
  • Page 5 HSC505-E 8-32 Zone LCD Home Security Controller - User Manual ________________________________________________________________________________________________ Keypad displays ”Enter zone number 00”. Enter 2-digit zone number to be bypassed. Keypad displays “Bypassed zone xx”. To bypass multiple zones, repeat above steps per zone. To remove bypass from a zone, repeat the same procedure as to bypass. All bypassing of zones is automatically removed after the system has been armed, as is then disarmed.
  • Page 6 HSC505-E 8-32 Zone LCD Home Security Controller - User Manual ________________________________________________________________________________________________ Enter 4-digit pin number _______________ or the bypass key to delete an existing user. Keypad displays “Authority part 01”. Enter desired user authority: 00 root - allows all access functions to all authorized partitions and programming of all user levels. 01 super user - allows all functions including changing of user codes level 2 and downwards in authorized partitions.
  • Page 7 HSC505-E 8-32 Zone LCD Home Security Controller - User Manual ________________________________________________________________________________________________ Enable 30 second siren delay when armed in the HOME mode: Enter user programming. Select 4. Press # to accept. Keypad displays “30 second siren delay” “ 1 = on 2 = off”. Make selection as required.

  • Page 8: Enter User Programming Select

    HSC505-E 8-32 Zone LCD Home Security Controller - User Manual ________________________________________________________________________________________________ Entering a Codex remote transmitter Enter user programming. Select 9. Press # to select. Keypad displays “Enter remote 1 to add, 2 to delete”. Press 1 Keypad display “ Enter remote number” Enter user number o1 to 32, corresponding to the user that the remoter will be identified with.
  • Page 9 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QD Dynamics (Pty) Ltd Kyalami Business Park Kyalami, Midrand 1685 PO Box 888 Wendywood, 2144 Tel: (011) 996-4321 Fax: (011) 466-1878 Pi HSC505 - E Home Security Controller...

  • Page 10: Table Of Contents

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ TABLE OF CONTENTS Introduction ………………………………………………………………………………………. Terminology ……………………………………………………………………………………… Motherboard Layout ………………………………………………………………………………….. Expander board layout (plug-in) …………………………………………………….. Zone wiring …………………………………………………………………………….. Keypad Layout ………………………………………………………………………………….. Partition Assignment ………………………………………………………………….. Panic ……………………………………………………………………………………. Tamper …………………………………………………………………………………. Zones ……………………………………………………………………………………...

  • Page 11: Introduction

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Introduction: The PI HSC505-32 is a South African designed and manufactured Security System, carrying full ICASA licensing and complying with all safety regulations and specifications. Features: 8 programmable EOL inputs, expandable to 32 inputs.
  • Page 12 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Congratulations on your purchase of the PI HSC505-E. The South African designed and manufactured solution to all your electronic security requirements. Please take the time to read and familiarize yourself with the terms used throughout the user manual. Arm or Arm away - The entire system or a partition is completely armed and secured.

  • Page 13: Keypad

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Input - A terminal on the control panel that a detector is connected to, for alarm purposes. Instant - A zone or input will create an immediate alarm condition when armed. Keypad - The user interface to the control panel, from which all commands and functions are carried out.
  • Page 14 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Motherboard layout: AC……………….AC input maximum 16.5V 40va (Earth) ....This must be connected to building earth were possible, alternately to mains earth AUX + ....12V + to peripherals i.e. IR detectors, beams, etc. (Fused at 1 amp) Negative to be taken from any negative or common.
  • Page 15 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ The siren tamper will cause an error to be displayed on all keypads across all partitions, Entering a code from any partition will clear the error message on all keypads but will not stop the error beep on the keypads in any other partitions.
  • Page 16 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Only normally closed switches may be used in this configuration. The normally closed tamper is connected in series with the feed or return line. Keypad wiring: 4 wire bus line BLACK GREEN YELLOW...
  • Page 17 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Remote Expander Board – QE1004 The remote expander is an 8 zone input and 4 trigger output self contained unit with independent charger and battery. Connection is via the 4-wire bus line and the zone and trigger numbers are link selected. AC ......

  • Page 18: Bus Line Receiver

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ BUS LINE CODEX RECEIVER. By using the bus line receiver, the 505 –E has the capability of accepting up to 10 codex transmitters . Each button could be assigned to either, opening /closing with encrypted user identification per partition, any keypad emergency condition or any trigger output.

  • Page 19: Qe920 Wireless Expansion Module

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QE920 WIRELESS EXPANSION MODULE The QE920 is a wireless 8 zone bus expansion module for use on the PI HSC 505E Control Panel and allows the use of any of the Visonic range of wireless detectors, also incorporated is a codex receiver allowing for 8 codex remote transmitters.

  • Page 20: Installation

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Installation Instructions 1) Connect the QE920 to the HSC 505E bus line using an 8 core stranded cable (red/black/green/ yellow) 2) Connect the trigger outputs to the hardwired zones on the HCS 505E using a 2k7 ohm resistor (Figure 2) 3) Enable these hardwired zones that the triggers are connect to as 24 hour zones and name accordingly (Zone programming).
  • Page 21 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Note- A wireless detector can only be programmed into a single location. If when attempting to program a detector the QE920 beeps and another zone led lights This indicates that the detector that is being learned already exists in the zone being indicated by the led.

  • Page 22: Testing

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Testing detector Tamper conditions 1) Press the function button until the RX led lights 2) Open a detector tamper 3) The zone led will flash and the tamper trigger will change state 4) Close the detector tamper 5) The zone led will go off and the tamper trigger returns to -12volts 6) Repeat step 2 for the rest of the detectors...

  • Page 23: First Time Installation

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ First time installation: 1. Default the control panel by placing a jumper across LK1. 2. Apply power (either ac or dc volts) to the control panel. 3. After +/- 15 seconds, remove the jumper on LK1. 4.

  • Page 24: Programming

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Programming: Enter programming mode: When entering into the installer-programming mode, a unique installer code is required. This code as a default, is 2580 and is changeable in Question 00. When entering into the programming mode, a programming level must be entered.
  • Page 25 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Zone Programming: Controlled Zones: Entry/exit - This zone type is the primary entry and final exit point into the premises. Violation of an entry point when system armed will only start the entry timer. If a valid code is not entered within the entry time an alarm condition will occur.

  • Page 26: Zones

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 1 to 34 Location 1 = Zone type, Location 2 = Partition number, Location 3 = Reporting code 1, Location 4 = Reporting code 2. Location 1: Zone type Disabled Entry/exit Follower...
  • Page 27 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Keypad Partition Assignment: Each keypad on the system must be assigned an ID number. 1 through 8 and then assigned to a specific partition. A partition may have multiple keypads assigned to it. Keypads may only be assigned to one partition.

  • Page 28: Home Zones

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Home Zone Enabled: QUESTION 38 AND 39 Any zone assigned as a home zone will automatically bypass when arming in the home mode. QUESTION 38 Location 1 = Home zones 1 to 4, Location 2 = Home zones 5 to 8, Location 3 = Home zones 9 to 12, Location 4 = Home zones 13 to 16.

  • Page 29: Home Zones

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Home Zone Enable: QUESTION 39 Location 1 = Home zones 17 to 20, Location 2 = Home zones 21 to 24, Location 3 = Home zones 25 to 28, Location 4 = Home zones 29 to 32.
  • Page 30 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Zone Tamper Enable: QUESTION 40 Zones 1 to 16 , (Zones 17 to 32 are question number 50) Location 1 = Tamper zones 1 to 4, Location 2 = Tamper zones 5 to 8, Location 3 = Tamper zones 9 to 12, Location 4 = Tamper zones 13 to 16.

  • Page 31: Bypass Enable

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Bypass Enable: QUESTION 41 Bypass enable zones 1 to 16. Location 1 = Bypass zones 1 to 4, Location 2 = Bypass zones 5 to 8, Location 3 = Bypass zones 9 to 12, Location 4 = Bypass zones 13 to 16.
  • Page 32 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Bypass Enable: QUESTION 42 Bypass enable zones 17 to 32. Location 1 = Bypass zones 17 to 20, Location 2 = Bypass zones 21 to 24, Location 3 = Bypass zones 25 to 28, Location 4 = Bypass zones 29 to 32. Location 1 Location 2 Bypass...
  • Page 33 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Auto Arm Modes: QUESTION 43 Location 1 = Auto arm mode for partition 1, Location 2 = Auto arm mode for partition 2, Location 3 = Auto arm mode for partition 3, Location 4 = Auto arm mode for partition 4.
  • Page 34 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Timers: ENTRY QUESTION 48 Location 1 = Entry delay partition 1, Location 2 = Entry delay partition 2, Location 3 = Entry delay partition 3, Location 4 = Entry delay partition 4. EXIT QUESTION 49 Location 1 = Exit delay partition 1,...
  • Page 35 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 50 Zone Tamper 17 to 32 Location 1 = Zones 17 to 20, Location 2 = Zones 21 to 24, Location 3 = zones 25 to 28, Location 4 = Zones 26 to 32.

  • Page 36: Auto Test

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 52 Location 1 = Auto test delay, Location 2 = Communicator delay, Location 3 = Ac fail delay, Location 4 = Siren timeout. Location 1: Auto test delay Sets the delay between auto-tests.
  • Page 37 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 52 Location 3: AC fail delay Sets the delay time between a mains AC fail or restore and the event being triggered. Value Delay times 1 Minute 5 Minutes 10 Minutes 15 Minutes...

  • Page 38: Quick Command Functions

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ System Functions: QUICK COMMAND FUNCTIONS QUESTION 53 Location 1 = Fast arm enable, Location 2 = Fast bypass enable, Location 3 = Arm when faulted enable, Location 4 = Siren alert. Location 1: Fast arm enable Allows arming in any mode without using a user code.
  • Page 39 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 53 Location 3: Arm when faulted Allows arming when an entry exit or follower zone is violated. this zone must be closed before the exit timer times out or an alarm condition will occur.
  • Page 40 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 55 Location 1 = Siren trip count, Location 2 = Panic key mode, Location 3 = Key tamper, Location 4 = Dual reporting Location 1: Siren trip count Sets the number of times that the siren will activate in an armed cycle.
  • Page 41 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Question 55 Location 4: Dual reporting Dual reporting enabled will communicate any condition to both primary and secondary telephone numbers, If dual reporting is not selected the communicator will dial the primary number with the secondary number as a backup in the event that the primary communication is not successful Disabled Enabled...
  • Page 42 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 56 Location 3: Ring count Select the number of rings that the telephone will ring before the control panel picks up the incoming call. This feature is used for up and down loading. Value Ring Count Disable auto-answer...
  • Page 43 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Remote or onboard expansion QUESTION 58 Selects zones 9 to 16 of being either plug in on the control panel or being on a remote expander. Location 1 = Zone 9 to 16 expansion, Location 2 = Reserved, Location 3 = Error beep enable, Location 4 = Telco fault timer.
  • Page 44 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Keypad Zones: QUESTION 60 Location 1 = Reserved, Location 2 = Reserved, Location 3 = Active keypad zones 17 to 20, Location 4 = Active keypad zones 21 to 24. Location 3: Active keypad zones 17 to 20 This location determines whether zones 17 to 20 are keypad zones or expander zones.
  • Page 45 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 61 Not used. QUESTION 62 Not used. Reporting Codes: QUESTION 63 Location 1 = Opening, Location 2 = Reserved, Location 3 = Bypass, Location 4 = Reserved. QUESTION 64 Location 1 = Quick arm, Location 2 = Reserved,...

  • Page 46: Telephone Numbers

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 72 Location 1 = Keypad tamper digit 1. Location 2 = Keypad tamper digit 2, Location 3 = Zone tamper digit 1, Location 4 = Reserved. QUESTION 73 Location 1 = Time loss digit 1.
  • Page 47 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 90 = Secondary telephone number digits 9 to 12. QUESTION 91 = Secondary telephone number digits 13 to 16. QUESTION 92 = Reserved. QUESTION 93 = Reserved. QUESTION 94 = Reserved.
  • Page 48 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 103. Location 1 = Trigger 13 timer, Location 2 = Trigger 14 timer, Location 3 = Trigger 15 timer, Location 4 = Trigger 16 timer. QUESTION 104 Location 1 = Trigger 17 timer, Location 2 = Trigger 18 timer, Location 3 = Trigger 19 timer,...
  • Page 49 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Location 2: (Preset the +12v state of the Outputs). Presets the default polarity of output number 5 to output 8. Output 5 Output 6 Output 7 Output 8 Value Positive Positive...
  • Page 50 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Location 4: (Preset the +12v state of the Outputs). Presets the default polarity of output number 13 to output 16. Output 13 Output 14 Output 15 Output 16 Value Positive Positive...
  • Page 51 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Location 2: (Preset the +12v state of the Outputs). Presets the default polarity of output number 21 to output 24. Output 21 Output 22 Output 23 Output 24 Value Positive Positive...
  • Page 52 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Location 4: (Preset the +12v state of the Outputs). Presets the default polarity of output number 29 to output 32. Output 29 Output 30 Output 31 Output 32 Value Positive Positive...
  • Page 53 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 111 Remote 2 Location 1 = button 1, Location 2 = Button 2 Location 3 = button 3, Location 4 = Button 4. QUESTION 112 Remote 3 Location 1 = button 1, Location 2 = Button 2 Location 3 = button 3,...
  • Page 54 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 119 Remote 10 Location 1 = button 1, Location 2 = Button 2 Location 3 = button 3, Location 4 = Button 4. Triggers: QUESTION 128 - QUESTION 155 The system has 5 onboard programmable voltage trigger outputs and allows for 50 programmable options.
  • Page 55 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Trigger events System: Trigger event Event # Mains fail Mains restore Battery low Battery restore Comms fail Panic Trigger Tamper trigger System auto test Comms kiss off received Call me number dialed Bus line failure Telephone line fault...
  • Page 56 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Codex remote Transmitter Button 1 Button 2 Button 3 Button 4 Remote number 1 Remote number 2 Remote number 3 Remote number 4 Remote number 5 Remote number 6 Remote number 7 Remote number 8 Remote number 9...

  • Page 57: Ademco Point Id

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Ademco Point ID Reporting Codes: BURGLARY TYPES 24-HOUR Description Digit 1 Digit 2 Event Description Digit 1 Digit 2 Event Code Code Audible panic Burglary Medical Perimeter Fire Interior Smoke...

  • Page 58: Hsc505 Programming Work Sheets

    HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ HSC 505-E PROGRAMMING WORK SHEET Installer code is changed in question # 00 Question Description Zone type Partition # Rep code d1 Rep code d2 Default Zone 1 1110 Question Description...
  • Page 59 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Question Description Zone type Partition # Rep code d1 Rep code d2 Default Zone 20 00AA Question Description Zone type Partition # Rep code d1 Rep code d2 Default Zone 21 00AA...
  • Page 60 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Question Description 1 to 4 5 to 8 9 to 12 13 to 16 Default Zone tamp 0000 Question Description 1 to 4 5 to 8 9 to 12 13 to 16 Default Bypass...
  • Page 61 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Question Description Reserved Reserved K/p zones K/p zones Default System 0000 Question Description Reserved Reserved Reserved Reserved Default Reserved 0000 Question Description Reserved Reserved Reserved Reserved Default Reserved 0000 Question...
  • Page 62 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Question Second acc Digit 1 Digit 2 Digit 3 Digit 4 Default Partition 1 FFFF Question Second acc Digit 1 Digit 2 Digit 3 Digit 4 Default Partition 2 FFFF Question...
  • Page 63 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ Question Description Trigger 1 Trigger 2 Trigger 3 Trigger 4 Default Timers 0000 Question Description Trigger 5 Reserved Reserved Reserved Default Timers 0000 Question Description Reserved Reserved Reserved Reserved Default...
  • Page 64 HSC505 - E 8-32 Zone LCD Home Security Controller - Installation Manual ________________________________________________________________________________ QUESTION 120 TO 127 ARE RESERVED FOR FUTURE USE Trigger Outputs: Trigger outputs are assigned by a 3-digit event code. A 2-digit trigger number and a single digit action event.
