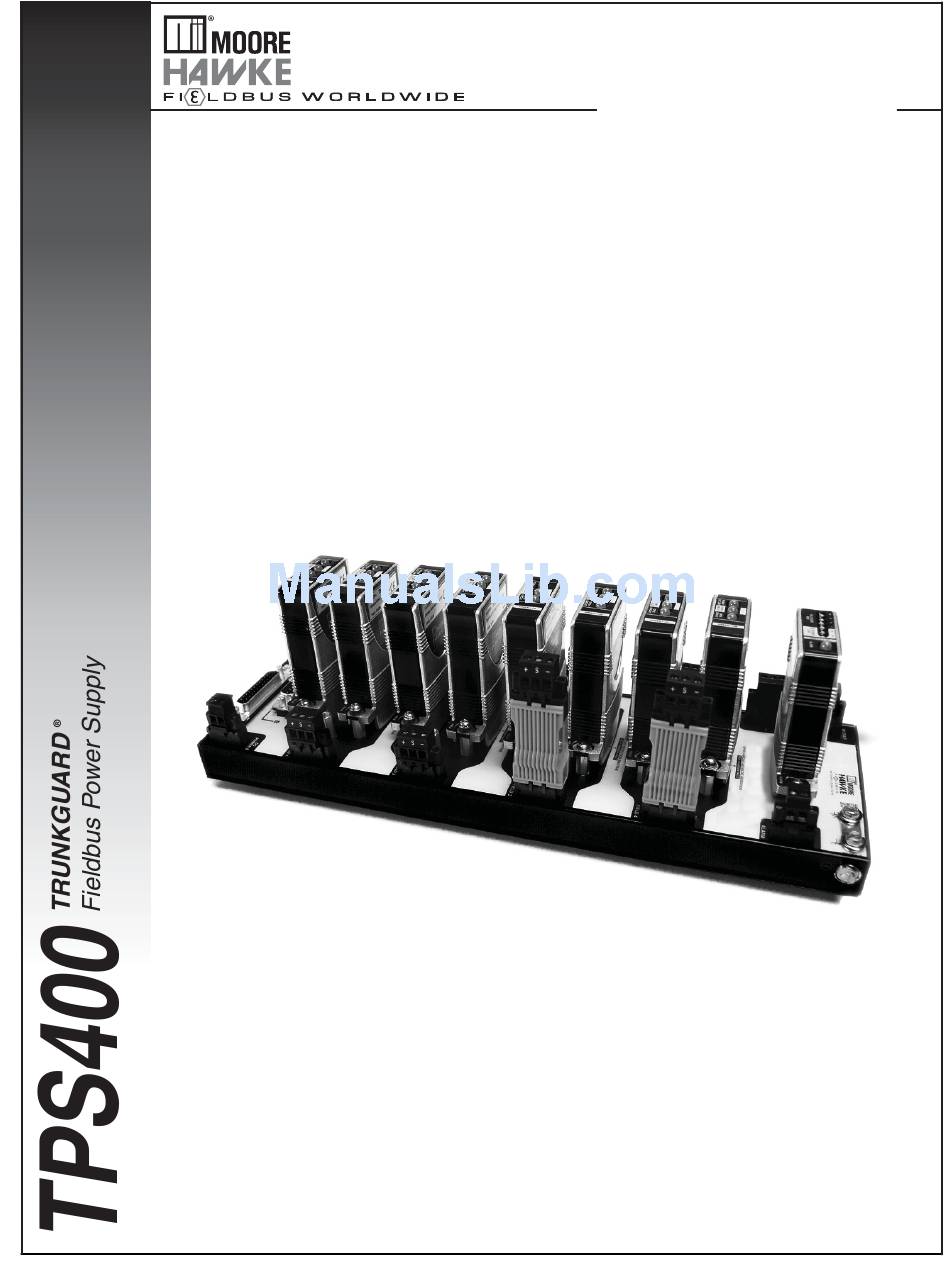

- Page 1 TPS400 May 2016 206-791-00C ® TRUNKGUARD Fieldbus Power Supply...
-
Page 2: Table Of Contents
Table of Contents Introduction ...................................3 Features ....................................3 Specifi cations ..................................4 Dimensions ...................................5 Installation .....................................6 TPS401 DIN Carrier Units ...............................6 TPS202 / TPS205 Power Conditioner ..........................6 FDM252 Fieldbus Diagnostics Module ..........................6 FDM252 Alarms ................................6 Jumpers ...................................6 Resistors ..................................6 SPM201 Surge Protection Module ..........................7 Device Coupler ................................7 Wiring Connections .................................7 Terminator ..................................7... -
Page 3: Introduction
DIN Carrier. It is made externally available as a separate grounding stud. Figure 1. The TRUNKGUARD TPS400 provides duplex (redundant) or simplex power to each fi eldbus segment (duplex unit shown). Universal Plug-In Power Conditioner Module... -
Page 4: Specifi Cations
TPS400 ® TRUNKGUARD Fieldbus Power Supply Specifi cations TPS401/402 DIN Carrier TPS205 Power Master Alarm Type: Relay (failsafe, Performance Number of Segments: 4 Conditioner Module open on alarm) Output Supply Voltage: 19.2 to Performance Output Capacity: Contact Rating: 32Vdc, reverse polarity 500mA per segment;... -
Page 5: Dimensions
TPS400 ® TRUNKGUARD Fieldbus Power Supply Dimensions Figure 2. Dimensions for The TRUNKGUARD TPS401 (Simplex) 300mm (8.5in) 121mm (4.75in) 114mm (4.50in) TPS401-4D TPS401-4Y Figure 3. Dimensions for The TRUNKGUARD TPS402 (Duplex) 356mm (14in) 114mm 121mm (4.75in) (4.50in) TPS402-4D TPS402-4Y... -
Page 6: Installation
TPS400 ® TRUNKGUARD Fieldbus Power Supply Installation Jumpers The TPS400 Carrier Module is shipped with jumpers fi tted into the appropriate unused power sockets TPS401 DIN Carrier Units (as marked). These jumpers must be fi tted in any DIN Carrier Units fi t onto 32mm (EN50035) G-type unused power socket once the Carrier is used in an and 35mm (EN50022) Top Hat DIN-rails. -
Page 7: Spm201 Surge Protection Module
TPS400 ® TRUNKGUARD Fieldbus Power Supply WARNING: SPM201 Surge Protection Module To avoid an explosion hazard do not Surge Protection Modules (optional component) fi t disconnect equipment at trunk terminals when onto the fi eld-side pluggable socket on the DIN Carrier a fl... -
Page 8: Grounding
Moore Industries recommends the following ground provides details of each connection point and provides wiring practices: recommendations on connecting these grounds. • Any Moore Hawke product in a metal case or Case Ground housing should be grounded. The CASE ground connection is for personnel protection and should be connected to the local •... -
Page 9: Testing And Troubleshooting
TPS400 ® TRUNKGUARD Fieldbus Power Supply Testing and Troubleshooting LED Operation During normal operation, LED sequence should be as Refer to Table 1 for information on LED indications of follows: fault conditions. TPS202/TPS205 Power Conditioners: All LEDs Note: should be GREEN. The DIN Carrier has a link fi... -
Page 10: Ce Conformity
Once confi gured, installed and supplied with the correct power, TRUNKGUARD begins to operate immediately. Maintenance Moore Industries suggests a quick check for terminal tightness and general unit condition every 6-8 months. Always adhere to any site requirements for programmed maintenance. -
Page 11: Appendix A: Trunkguard / Abb System 800 Confi Guration
TPS400 ® TRUNKGUARD Fieldbus Power Supply Appendix A: TRUNKGUARD / ABB System 800 Confi guration TRUNKGUARD can be wired directly to each channel at the LD 800HSE linking device. Refer to Figure A-1 for installation examples. Figure A-1. TRUNKGUARD / ABB System 800 Confi guration Simplex (TPS401-4D) Duplex (TPS402-4D) Server... -
Page 12: Appendix B: Trunkguard/ Emerson Deltav System Confi Guration
TPS400 ® TRUNKGUARD Fieldbus Power Supply Appendix B: TRUNKGUARD/ DeltaV is a digital automation system from Emerson Process Management. DeltaV incorporates Emerson DeltaV System FOUNDATION Fieldbus I/O capability via H1 cards. Redundant H1 cards are supported if using a DeltaV Confi... -
Page 13: Appendix C: Trunkguard / Yokogawa Centum System Confi Guration
Figure A-3 below. Yokogawa CENTUM System Confi guration This Confi guration requires the use of a Moore Industries Yokogawa Redundant Adaptor when the TPS401-4Y TRUNKGUARD unit is used. When using the TPS402-4Y unit an AKB336 cable is required for this confi... -
Page 14: Appendix D: Trunkguard / Invensys System Confi Guration
TPS400 ® TRUNKGUARD Fieldbus Power Supply Appendix D: TRUNKGUARD / Invensys System Confi guration When using a TPS400 with a Foxboro I/A System, a special cable is provided to plug into the I/A Carrier board and then into the TPS 400 Carrier board Refer to Figure A-4 below.. -
Page 15: Appendix E: Trunkguard/ Honeywell System Confi Guration
TPS400 ® TRUNKGUARD Fieldbus Power Supply Appendix E: TRUNKGUARD/ Honeywell System Confi guration To utilize TRUNKGUARD with a Honeywell system, refer to Figure A-5 below. Figure A-5. TRUNKGUARD / Honeywell System Confi guration Honeywell Series ‘C’ FIM Simplex (TPS401-4D) Twisted shielded pair Fieldbus cable SEGMENT #2 SEGMENT #3 SEGMENT... - Page 16 4. Ship the equipment to the Moore Industries location nearest you. The returned equipment will be inspected and tested at the factory. A Moore Industries rep- resentative will contact the person designated on your documentation if more information is needed.
