Page 1 User Manual...
Page 2: Product Overview

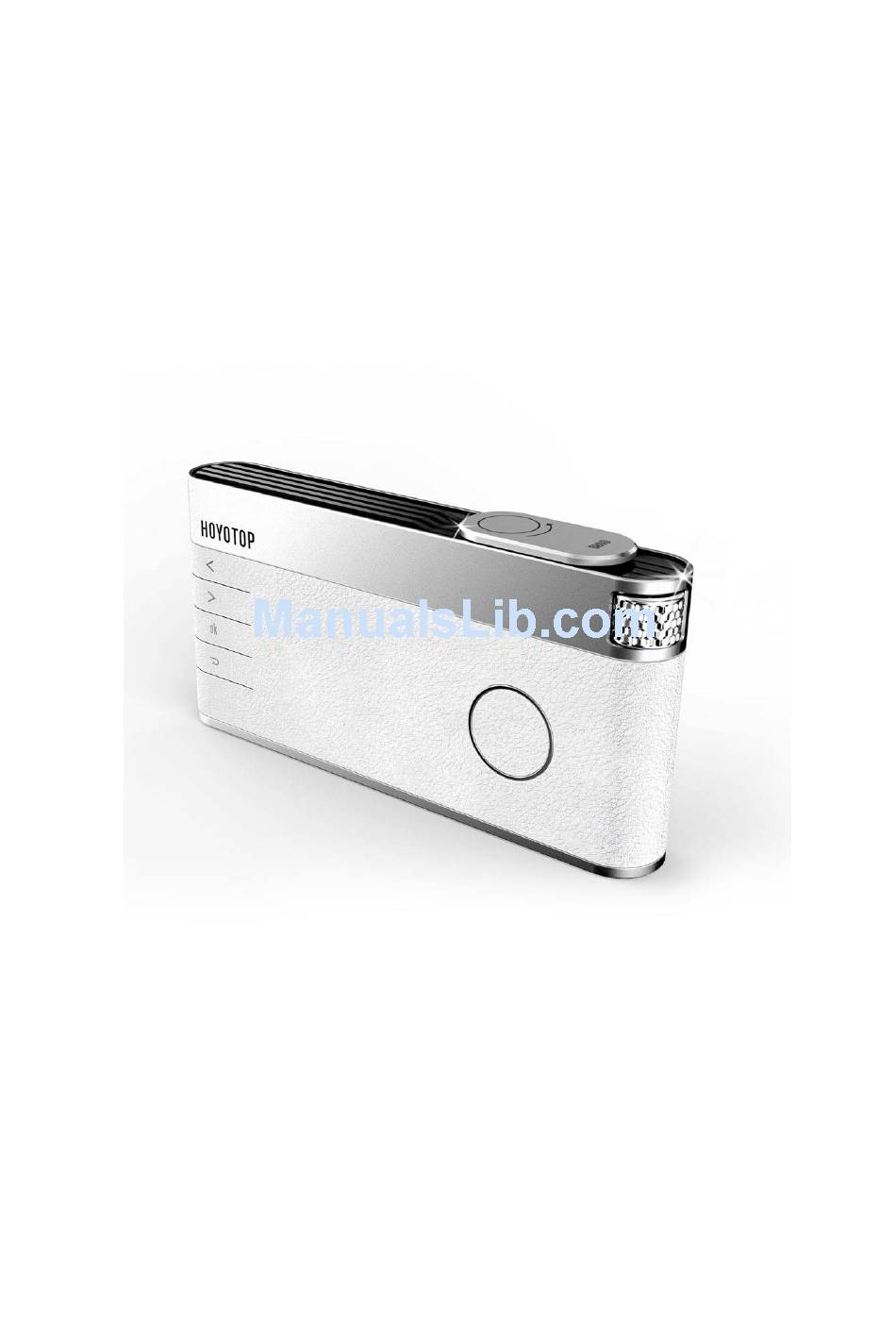

Product Overview: Dear User, Thank you very much for your purchase "wireless mini projector" of HOYOTO P company. Mini, Simple and Portable is our biggest characteristic, It’s very s uitable for business office. Read the entire user manual carefully, Follow all s afety instructions in order to ensure proper operation of your device.
Page 3: Product Standard
Product standard Projection Technology TI DLP technology Standard resolution Native 1280x800 pixels, support 1080p Contrast Ratio 1000:1 Projection Projection cover size 5.5 inch --- 80inch parameters Projection Distance 0.15m -3m 16: 9 Screen Aspect Ratio Focus Manual Lamp type RGB three-color LED light source Lamp life >...
Page 4: Packing List
1.Packing list Serial number parts name Unit Quantity Projector Power adapter Remote control Remote control charge Root cable Warranty card Sheet 2.Keys on device panel Focusing Wheel Left key Right key OK key Return key Touch key： The first touch, voice, frames all close; The second touch, open voice The third touch, open frames Long-time press will close the remote c...
Page 5 Projector lens cap Projector lens According to the arrow open the lens cover to 90 °, Can be used as the projector bracket...
Page 6: Battery Recharge
3.The remote control operating instructions Up key Turn on/off key Mute key Power on/off Left key Right key Charge port Return key Laser pen key Down key OK key 4.The projector operation instruction 4.1 Battery recharge 1. Please shifting the power on/off button into second gear when you make charging.
Page 7: Switch On The Projector
4.2 Switch on the projector Shifting the power on/off button into third gear, After the initial screen the main menu appears, Use the focus wheel on the side to adjust the image sharpness. when the turn on/off button at third gear, through the remote control also can switch the projector. In battery full state will sustainable projection 90 minutes.
Page 8 Picture 2 ”It’s "Internal storage "menu, open it will appear picture 2-1 interface, you can play ph （1）“ otos, video, music and various format document from internal storage. Picture 2-1 ”It’s "TF" menu, After inserted Micro TF in the device, it will set current TF card as the （2）“...
Page 9 ”It’s "setting" menu, open it will appear picture 2-2 interface. （4）“ Picture 2-2 1）The “system” menu, it’s can choose through "USB", "TF" or "OTA" to update the software ver sion. Also can select the language type (Such as picture 2-2-1). Picture 2-2-1 2）"Photos"...
Page 10 Picture 2-2-2 3）"Video" menu, It’s can setting up the video ratio and repeat mode (Such as picture 2-2-3) Picture 2-2-3 4）"Audio" menu, It’s can setting up music repeat modes (Such as picture 2-2-4)
Page 11 Picture 2-2-4 4.3.2"EZCast Pro" menu function introduce " EZCast Pro" menu, it will connect the projector with the external devices, such as smart p hone, ipad, laptop PC or other digital device to be realized HD image transmission in real time.
Page 12 2. Open your smart phone WLAN, search the projector’s WiFi signal and connect it, and enter password. (such as picture 3 SSID: EZCastPro_560053C0, Password: 75787063). 3.Click the smart phone EZcast pro, the smart phone screen will appear picture A-1 interface, cli ck the "EZcast pro", the smart phone will pop up picture A-2 interface, open the "mirroring", it wi ll be realized screen mirroring interactive function, At this time operate all menu on your phone will be to your projector.
Page 13 Picture A-3Picture A-4 If you need to connect wireless network, please click "setting", the phone screen will appear pict ure A-3 interface, at this time the projector will appear picture 3-1 interface, Select Internet option s press "OK" button on your phone will Prompt searching network interface as shown in picture 3-1-1.
Page 14 Picture 3-1-1 Picture 3-1-2...
Page 15 Picture 3-1-3 Picture 3-1-4 Below is the picture 3-1 interface function introduce （1） "Internet" it can be setting up to connect with wireless router to be realized the Internet func tions; （2）"Boot default" it can be setting up the boot default for EZCast, EZMirror or EZMirror + AP; （3）"Connect"...
Page 16: Mirroring Function
Picture 3-2 1）"Password" it can be setting up to hide or change the SSID password. 2）"Language" it can be change display language type. 3）"Device name" it can be setting up to change the SSID equipment name. 4）“EZChannel” it can be setting up to “ON”/“OFF”. 5）"Upgrade"...
Page 17 Picture A-5 Picture 3-3 Click the "ON" button on your phone, after appear picture A-6 interface, press return key will app ear picture A-7 interface. At this time projector display picture 3-3-1,click the “wireless display” on your phone into picture A-8 interface, open it will appear picture A-9, connect the "EZCastPro_ 560053CO", the projection display is connecting, (as shown in picture 3-3-2) after successful will directly projection via projector.
Page 18 Picture A-6 Picture A-7 Picture A-8 Picture A-9...
Page 19 Picture 3-3-1 Picture 3-3-2 5.1 “HDMI”menu function introduce If you digital device with HDMI port, connect with the device and projector via HDMI cable, after successful, open the main interface“ HDMI “menu can be projection play HD video images from the digital equipment.
Page 20 5.2 “Connect to PC”menu function introduced USB Wired connect The projector connect with PC/ IPAD via USB cable can be used as U disk, it would be able to read and manage the files store by PC/ IPAD Use USB cable connected to the projector and PC, open the projector " Connect to PC"...
Page 21: Factory Reset
4.3 Setup menu function introduced After the projector open successfully and normal projection images, when projection any images c an double-click the remote control or projector shell"OK" button all can turn into picture 5 interfac Picture 5 4.3.1 Menu language In picture 5 interface pitch on "language menu"...
Page 22: Auto Keystone Correction
Picture 5-1 4.3.3 Software upgrading (USB) When you want to upgrade software, Please copy the latest version software to the U disk, and then insert the U disk into USB port, select "software upgrade(USB)" option, press the "OK" key will also appear picture 5-1 interface after press left key "yes" will proceed upgrade the software operation, press right key "no"...
Page 23: Manual Keystone Correction
4.3.7 Volume In picture 5 interface to select "Volume" option, press "OK" to enter interface of picture 5-2, acco rding to the left key and right key to adjust the size of Volume, Volume value range of 0 ~ 100. Picture 5-2 4.3.8 Manual keystone correction In picture 5 interface to select "manual keystone correction"...
Page 24 5.Projector simple troubleshooting Fault phenomenon Reason Solution Check the projector power adapter successfu lly electrify and correctly inserted into the p No power supply Projector not turned rojector DC plug Charging the projector Low battery Using the focusing wheel to adjust the lens Lens focusing accurately...
Page 25: Warranty And Copyright Information
7.Warranty and copyright information HOYOTOP commitment that offer 12 months warranty service from the date of you received projector. In general, if the product develops a fault during the 365 days since you received it, and the fault is due to a quality issue rather than your own breakage or misuse.
