Belco Multi-Biometric Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

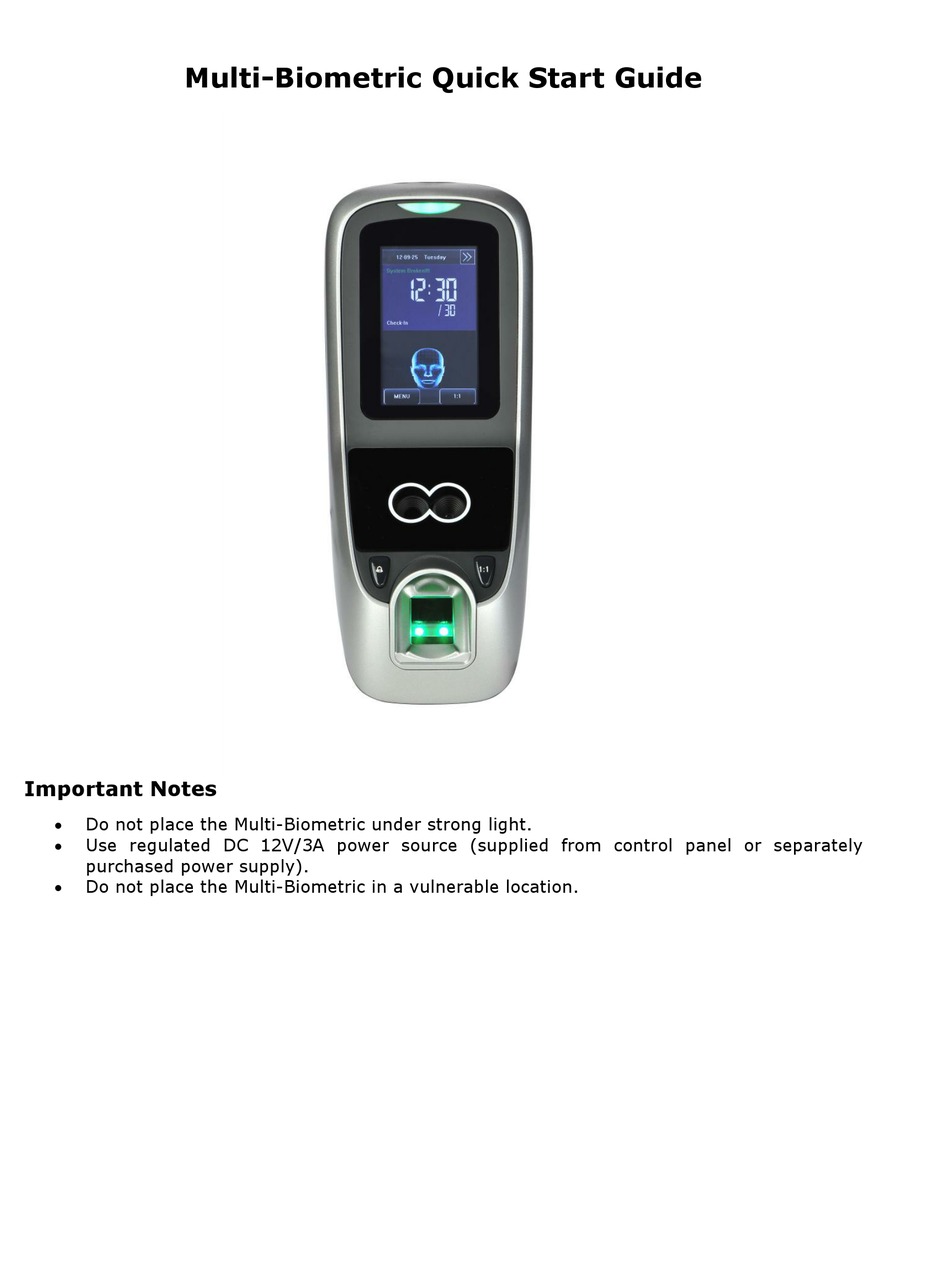

Multi-Biometric Quick Start Guide

Important Notes

Do not place the Multi-Biometric under strong light.
Use regulated DC 12V/3A power source (supplied from control panel or separately
purchased power supply).
Do not place the Multi-Biometric in a vulnerable location.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multi-Biometric and is the answer not in the manual?

Questions and answers

Summary of Contents for Belco Multi-Biometric

  • Page 1: Important Notes

    Multi-Biometric Quick Start Guide Important Notes  Do not place the Multi-Biometric under strong light.  Use regulated DC 12V/3A power source (supplied from control panel or separately purchased power supply).  Do not place the Multi-Biometric in a vulnerable location.

  • Page 2: Table Of Contents

    Contents 1. Mounting the Unit ........................1 2. Hardware Setup .......................... 2 3. Cable Specification ........................2 4. Lock Connection .......................... 3 5. Features ............................3 6. Specifications ..........................4 7. Basic Contents ..........................4 8. Optional Accessories ......................... 5 9.

  • Page 3: Mounting The Unit

    1. Mounting the Unit  Post the mounting template on the wall. Drill the holes according to the marks on the template (holes for screw and wiring).  Create conduits for the power and network cable on the wall so that the unit receives the connections from the back of the wall.

  • Page 4: Hardware Setup

    2. Hardware Setup  Power on the unit by supplying DC 12V/3A to the power and GND pins on the back of the unit. The power supply is not supplied with the unit. Please make sure that the power requirements are strictly met to avoid permanent damage to the unit. ...

  • Page 5: Lock Connection

    4. Lock Connection 5. Features  3-inch touch screen.  1 second user recognition.  Standard Wiegand IN and OUT ports can be used to connect 3 party access control panels or Wiegand reader.  USB port makes offline data backup/management fast & easy. ...

  • Page 6: Specifications

    Power Supply 12V DC 0℃-45℃ Operating Temperature Operating Humidity 20%-80% Gross Weight 0.87Kg Dimension 209*88*87mm (L*W*D) 7. Basic Contents Wall Mounting Screws and Holders Multi-Biometric Metallic Mounting Plate Fingerprint Terminal Star-shape Screw Driver Star-shape Screw for Mini-USB Cable Mounting Plate...

  • Page 7: Optional Accessories

    Mounting Paper Software CD Installation Guide 8. Optional Accessories Alarm Indicator FR1200 Fingerprint Slave Reader K1 Exit Button Power Supply Electric Strike Lock Electric Magnetic Lock Controller 12V Power Adapter Mifare USB Memory Integrated Module and Card Stylus Pen Environmental Protection Notice...

  • Page 8: Product Introduction

    9. Product Introduction 9.1 Front 9.2 Side...

  • Page 9: Rear

    9.3 Rear 10. Installation Diagram...

  • Page 10: Product Dimensions (Mm)

    11. Product Dimensions (mm) 12. Date and Time Setup Press [Menu] on the initial interface to display the main menu. 2. Press [Date/Time] to display the time setting interface. 3. Select the desired date and time by pressing the parameter.

  • Page 11: User Enrollment

    Press [Exit] to return to the previous interface without saving the current information. 13. User Enrollment 1. To start user enrollment, press the [Menu] key on the Multi-Biometric, it will prompts 2. From the Main Menu, select [User Mgt] to add/modify/delete users’ fingerprint(s), password or authority (Admin or user).

  • Page 12: Entering A Name

    Tips: The user ID can be modified during initial enrollment, but once enrolled, it cannot be modified. 2. On the displayed keyboard interface, enter a user ID and press [OK]. 13.2 Entering a Name 1. Press [Name] on the [Add User] menu to display the name input interface. 2.

  • Page 13: Enrolling New User Fingerprint (Fp)

    3. After the user name is entered, press [Save] to save the current information and return to the previous interface. Press [Exit] to return to the previous interface without saving the current information. 13.3 Enrolling New User Fingerprint (FP) Finger Placement: The user’s finger should completely cover the sensor.

  • Page 14: Enrolling A Password

    2. On the displayed [Enroll Fingerprint] interface, place your finger on the fingerprint sensor properly according to the system prompt. 3. Place the same finger on the fingerprint sensor for three consecutive times correctly. If the enrollment succeeds, the system will display a prompt message and automatically return to the [Add User] interface.

  • Page 15: Enrolling Card

    2. Enter a password and press [OK]. Re-enter the password according to the system prompt and then press [OK]. 13.5 Enrolling Card Press [Card] on the [Add User] interface to display the [Enroll Card] interface. Swipe your ID card properly in the swiping area. The device will display a prompt message “Read Successfully! Card No.: **********”, and returns to the [Add User] interface.

  • Page 16: Setting New User Authority

    3. If your face image is enrolled successfully, the system will display a prompt message and automatically return to the [Add User] interface. 4. Press [Save] to save the current information and return to the previous interface. Press [Exit] to return to the previous interface without saving the current information. 13.7 Setting New User Authority Identifies a user as a normal User or an Administrator.

  • Page 17: Deleting A User

    15. Setting Communications Options The Multi-Biometric can communicate via the Network (Ethernet), RS/232 or RS485. Network (Ethernet) 1. Press [Comm.] on the [Menu] to configure Communication Settings.
  • Page 18 Notice the following setting interfaces are available. IP address: Default IP is 192.168.1.201. You can modify it. But do NOT use an IP address already being used by another network device. Subnet Mask: Default mask is 255.255.255.0. You can modify it. Gateway: Default gateway address is 0.0.0.0.
