Summary of Contents for SUNSEEKER EZ-Tri Classic

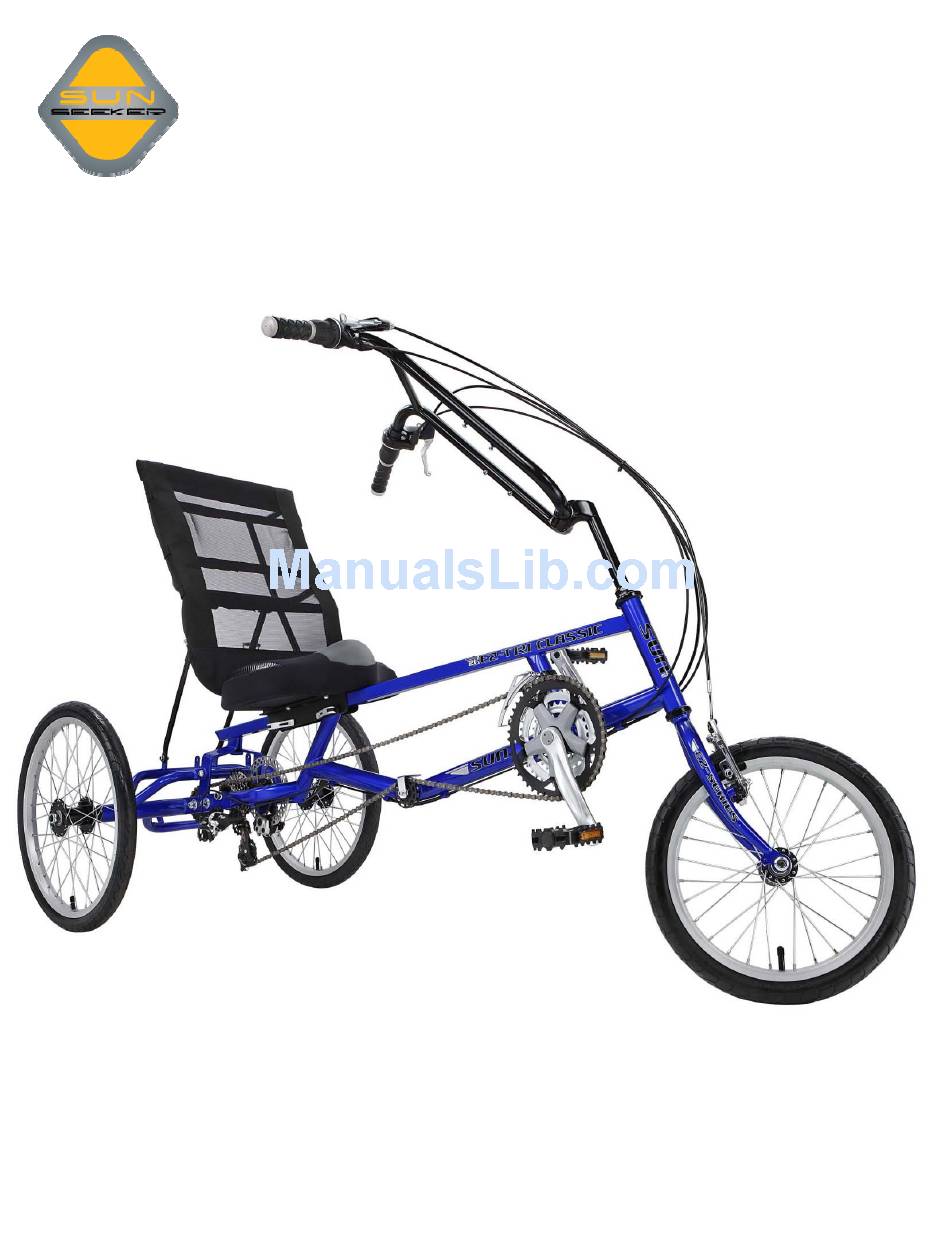

- Page 1 EZ-Tri Classic Supplemental Owner’s Manual Find us online at SunSeeker.Bike Revised 7/2015...
- Page 2 This manual is not intended as a comprehensive use, service, repair or maintenance manual. Please see your dealer for all service, repairs or maintenance. Your dealer may also be able to refer you to classes, clinics or books on bicycle use, service, repair or maintenance. EZ-Tri Classic Specifications Model:...
- Page 3 EZ-Tri Classic Reference Views Side View Top View 3 ...
-
Page 4: Table Of Contents
EZ-Tri Classic Assembly Reference EZ-Tri Classic PARTS LIST ITEM DESCRIPTION Main Frame Assembly Rear Unit Assembly Rear Unit Hardware Set (4x carriage bolts, nuts & washers / 2x Allen head bolts, nuts & washers) 1 set Drive Chain Rear Wheel Nylock Retaining Nut (M14) -
Page 5: Main Frame Assembly
Assembly Guide Rear Unit Installation Loosely install #2 Rear Unit Assembly onto #1 Main frame Assembly using #3 Rear Unit Hardware. See Figure A. Chain Installation Install #4 Drive Chain onto rear axle drive sprocket and mid drive fixed sprocket. After installed, pull back #2 Rear Unit Assembly to remove slack in the #4 Drive Chain. -
Page 6: Rear Wheel Assembly
Rear Wheel Installation Assemble #8 Rear Wheel Assembly, #6 Rear Wheel Washer and #5 Rear Wheel Nylock Retaining Nut onto right side (drive side) rear axle. See Figure D. Assemble #7 Rear Wheel Spacer, #8 Rear Wheel Assembly, #6 Rear Wheel Washer and #5 Rear Wheel Nylock Retaining Nut onto left side (non drive side) rear axle. -
Page 7: Handlebar Stem
Handlebar Stem Installation Install #10 Handlebar Stem into fork. See Figure G. Handlebar Assembly Installation Install #11 Handlebar Assembly onto #10 Handlebar Stem. See Figure H. 7 ... -
Page 8: Saddle
Seat Assembly and Installation Install #13 Seat Mount onto #12 Saddle and secure with #14 Seat Mount Hardware. See Figure I. Install Saddle with Seat Mount onto the #1 Main Frame Assembly and secure with #15 Quick Release Seat Pins. See Figure J. 8 ... -
Page 9: Seat Back Pivot Bolt
Seat Assembly and Installation (continued) Install #17 Seat Back Frame onto #13 Seat Mount and secure with #16 Seat Back Pivot Bolt. See Figure K. Install two (2) #19 Upper Seat Struts and ½ moon washers into the rear tabs on the #17 Seat Back Frame using the provided hardware. See Figure L. Install two (2) #20 Lower Seat Struts into the upper tabs on the #2 Rear Unit Assembly using the provided hardware. -
Page 10: Pedal Installation
Pedal Installation Apply grease to the threads of the #23 Pedals. This will protect both the threads of the pedal and the crank arm over time. Use pedal washers where required. Using your hands, thread the #23 Pedals (marked for L or R) into the respective left or right crank arms by turning them toward the front of the bike. Once the threads catch, use your pedal wrench to finish tightening down the pedals. -
Page 11: Seat Adjustment
Seat Adjustment Loosen the #15 Quick Release Seat Pins and slide the #13 Seat Mount rearward on the #1 Main Frame until in a comfortable seating position. Adjust the seat angle by removing and reinstalling the #21Seat Strut Pins into a new position on the Seat Struts if necessary. See Figure N. Position the Saddle so that when seated, your knee is slightly bent when the forward foot is in the farthest pedal position. - Page 12 Sun Seeker Bicycles PO Box 161859, Miami, FL 33116-1859 info@sunseeker.bike...
Need help?
Do you have a question about the EZ-Tri Classic and is the answer not in the manual?
Questions and answers
how to adjust the seat
The seat on a SUNSEEKER EZ-Tri Classic can be adjusted by moving it forward or backward along the trike frame. The seat consists of a padded base with an adjustable steel frame and mesh back. The position and angle adjustments are made using quick-release levers and pins, allowing for easy modifications without tools. The seat angle can be adjusted independently up to a maximum upright position of 90 degrees and a maximum reclined position of 40 degrees.
This answer is automatically generated
I have to remove my basket in order to adjust my seat back further? This is A recumbent trike I bought used that came with a basket installed, but I can’t seem to move the seat back far enough
