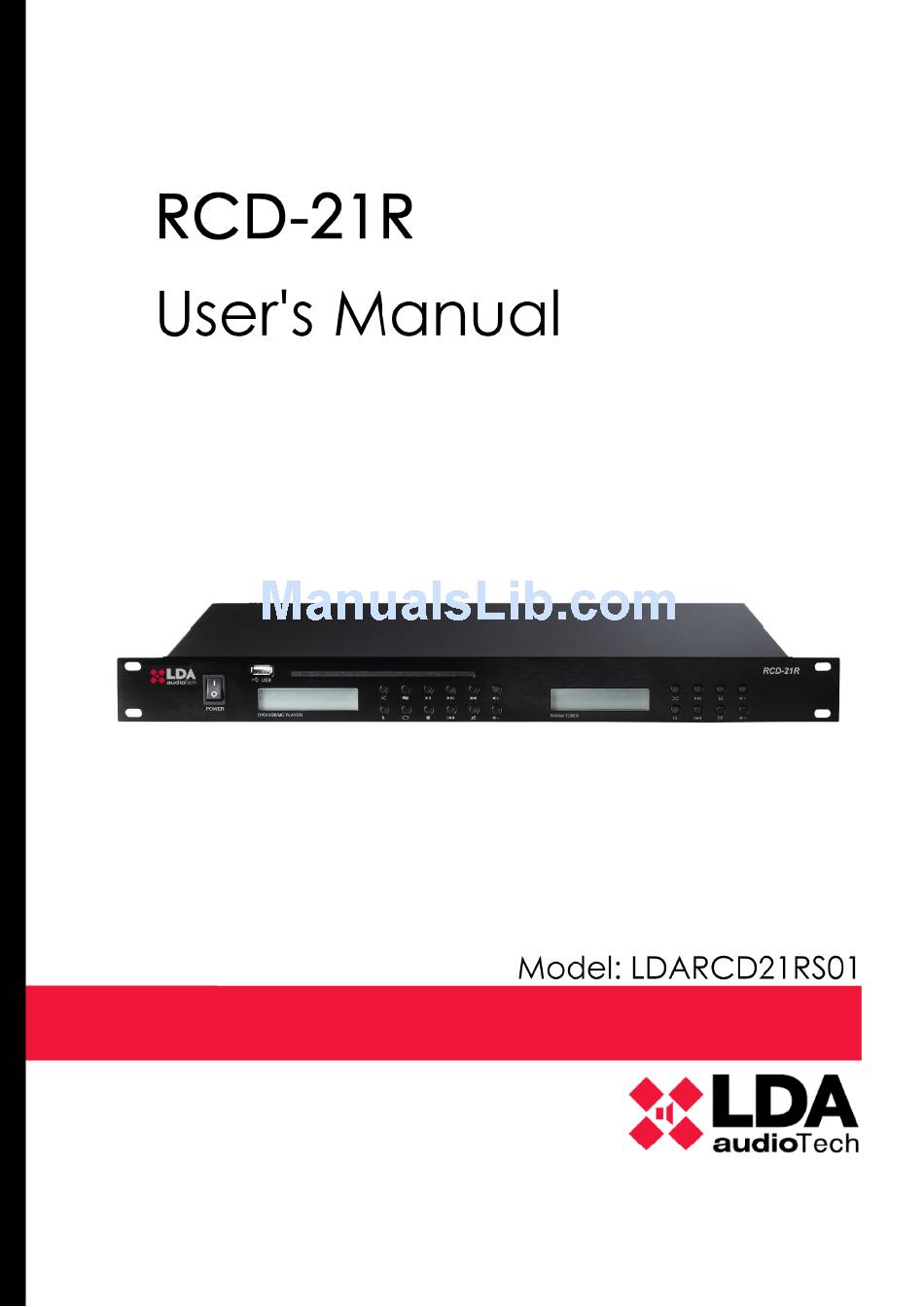

Summary of Contents for LDA RCD21R
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION..........................1 2. SAFETY INSTRUCTIONS......................1 3. DESCRIPTION..........................2 4. PACKING LIST..........................2 5. CONTROL AND INTERFACES....................3 6. SETUP............................6 7. TECHNICAL SPECIFICATIONS....................7... -
Page 4: Introduction
1. INTRODUCTION 2. SAFETY INSTRUCTIONS 1. Please read carefully these safety instructions. 2. Keep this User's Manual for future reference. 3. Unplug the equipment from the AC before cleaning. 4. Do not use liquid or sprayed detergent for cleaning. 5. Use a cloth for cleaning. 6. -
Page 5: Description
Table 1. Make sure the unit and accessories are all read. For any missing items, please contact the dealer from whom you made your purchase immediately. Name Amount LDA RCD−21R Audio cable Rod antenna Power cord User’s Manual LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com... -
Page 6: Control And Interfaces
5. CONTROL AND INTERFACES Front panel Device power on/off Power Switch: USB port USB Port: Place for the disc Disc tray: Information display screen DVD/MP3 LCD Screen: Opens and closes the disc tray Open/Close button: Switches between CD/USB/SD card mode and loads song info from the DVD/USB/SD: corresponding device. -
Page 7: Rear Panel
FM/AM audio and DVD/MP3 mix audio output Mix audio output port: DVD/MP3 audio output Audio output: CVBS Video output: (10) Power jack: AC230 power jack. Fuse: 500mAL LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com... - Page 8 Address by DIP switch, configuration instructions:...
-
Page 9: Setup
Press the power switch on RCD-21R front panel. If the two LCD screens on the front panel display work status of the two channels, RCD-21R is in working correctly. LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com... -
Page 10: Technical Specifications
7. TECHNICAL SPECIFICATIONS Model LDA RCD21RS01 230V AC 50/60Hz Power supply ±3dB Frequency response Inputs Fm75 Ohms antenna terminal, USB port and SD port Output No. 1: Stereo RCA output FM/AM tuner: 775mV; Stereo RCA output DVD/USB/SD:7750mV. No. 2: Mixed sound RCA output: 775mV Distortion 0.05%... - Page 12 Ver.1.0...
