Aquablend 2500 Thermostatic Mixing Valve

Technical Description

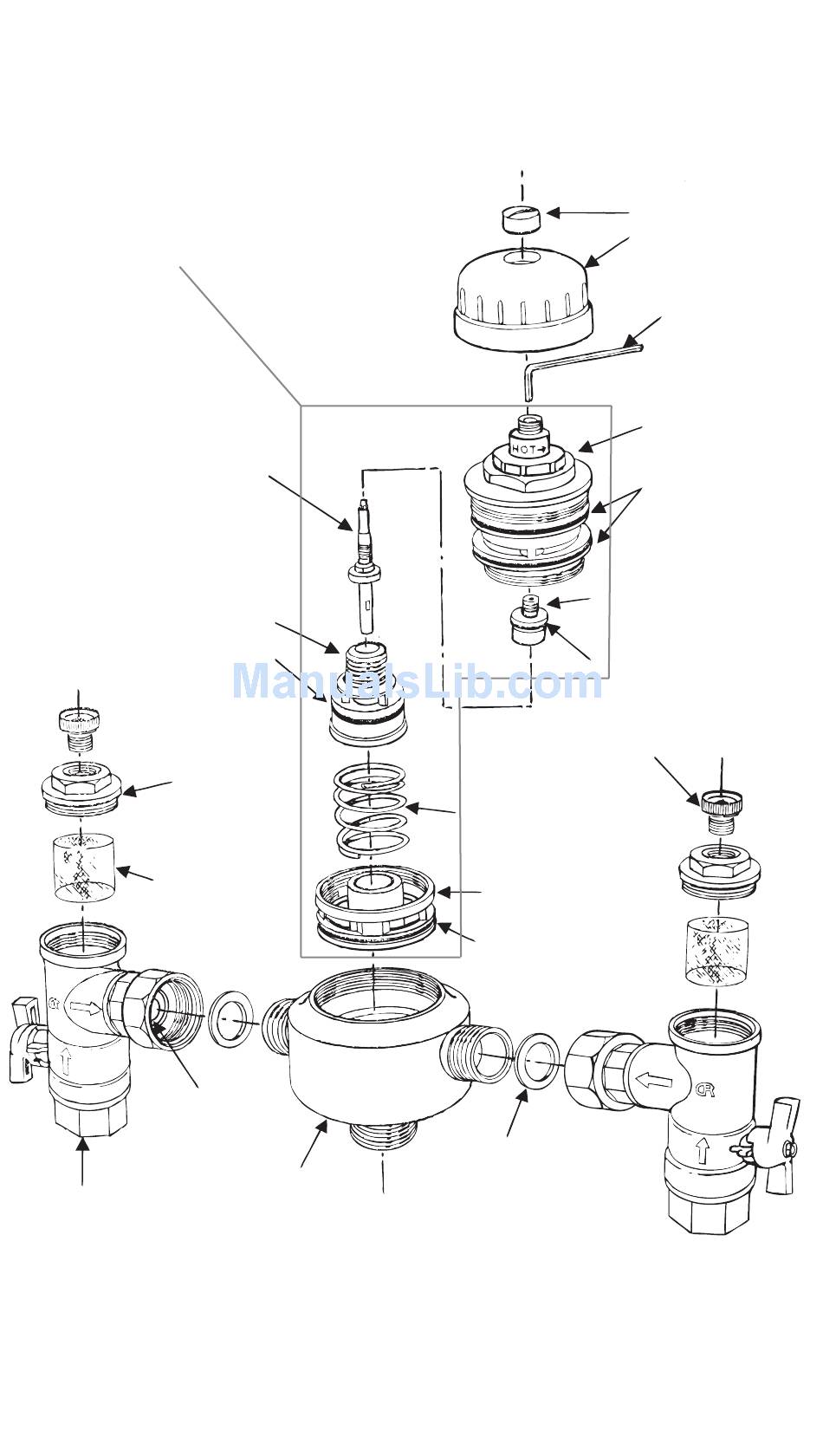

CARTRIDGE COMPLETE
(PART No. ATMS3002)
THERMOSTATIC ELEMENT
(PART No. ATMS306)
PISTON ASSEMBLY
(PART No. ATMS303)
& PISTON O-RING*
INLET FITTING
O-RING (PART
No. ATMS302)
INLET CONTROL
VALVE STRAINERS
(PART No. ATMS305)
ANTI-THERMOSYPHON
DEVICE (INSIDE
INLET VALVE)
INLET CONTROL
VALVE - 2 OFF
* AVAILABLE IN O-RING KIT (PART No. ATMS301)
Call 1300 369 273
MIXING
VALVE BODY
9
MIXED WATER
TEMPERATURE
ADJUSTER
(PART No. ATMS310)
& SPINDLE O-RING*
PRESSURE TEST
POINT PLUG
(PART No.ATMS314)
RETURN SPRING
(PART No. ATMS311)
SEAT SHELL WITH SEAT
(PART No. ATMS308) &
1 CARTRIDGE O-RING*
FACE SEAL
(PART No. ATMS313)
LOCK NUT & TOP COVER
(PART No. ATMS304)
ALLEN KEY
(SUPPLIED)
LOWER TOP CAP
(PART No. ATMS309)
& 2 CARTRIDGE
O-RINGS*
