Contents -------------------------------------------------------------------------------------------------------------------------- Production Introduction ----------------------------------------------------------------------------------------- About TT-BS017 Wireless Barcode Scanner ---------------------------------------------------- Package Includes ------------------------------------------------------------------------------------------------------ Product Diagram -------------------------------------------------------------------------------------------------------- Technical Specifications ------------------------------------------------------------------------------------------ How to Use ----------------------------------------------------------------------------------------------------------------- Charging the Scanner ---------------------------------------------------------------------------------------------- Scanner Setup ------------------------------------------------------------------------------------------------------------ Single scanner to single receiver ------------------------------------------------------------------------- Single scanner to multiple receivers...
Page 3

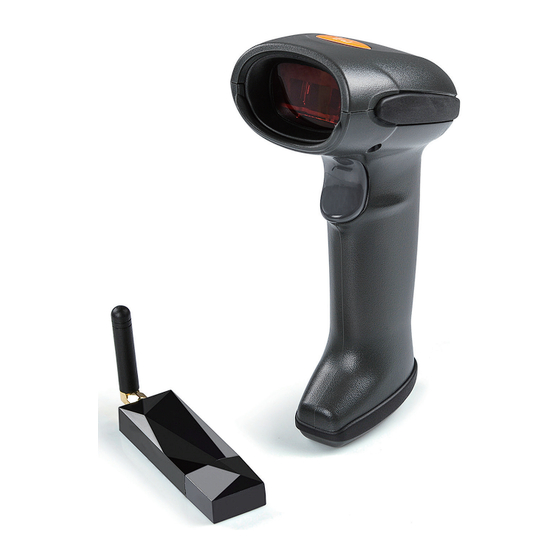

02/03 • With long range wireless connection (up to 500m in open space), you can work within a large area without limitation of cables or even computers. • Large internal storage can save up to 32,000 barcodes in inventory mode •...
04/05 Scanner Steup Charging the Scanner 4. Once the driver installed successfully, scan the “Match ADD” scanner WITHIN 5 seconds. Now the pairing is done...
06/07 - You can connect maximum of 16 scanners with one receiver simultaneously. Set Scanner ID To avoid confusion when using multiple scanners, you can assign a unique ID for each scanner. Scanner ID consists of up to 3 digits (0 – 9). The scanner ID will appear as prefix before each scan result.
08/09 Show Scanner ID Now your scanner will automatically adds the scanner ID as prefix to all scan results. To disable the scanner ID, you can scan the “Hide Scanner ID” barcode Hide Scanner ID Set Auto-off Time 1. Scan “Set Auto-off Time” bar code Set Auto-off Time 2.
12/13 • When using the 2nd method to get into inventory mode, it is possible to accidentally set the scanner to enter deep sleep mode if you keep holding the trigger for too long. (Please see Page 14 to check Deep sleep mode) Set Frequency Channel in Inventory Mode It is important to set frequency channel for each receiver to avoid signal interference.
14/15 4. If you wish to clear all saved barcode, you can scan the “Clear all data” barcode Channel 25 Channel 26 Channel 27 Clear all data Channel 28 Channel 29 Channel 30 Channel 31 Channel 32 5.You can scan the data count barcode to know how many barcode is saved in the scanner 3.
16/17 Deep Sleep Mode • Press and hold the trigger for 11 seconds or more will cause the scanner to enter deep sleep mode. During deep sleep mode, scanner will not respond to single trigger press • To exit deep sleep mode, press and hold the trigger for 3 seconds to wake up the scanner Reset Appendix –...
