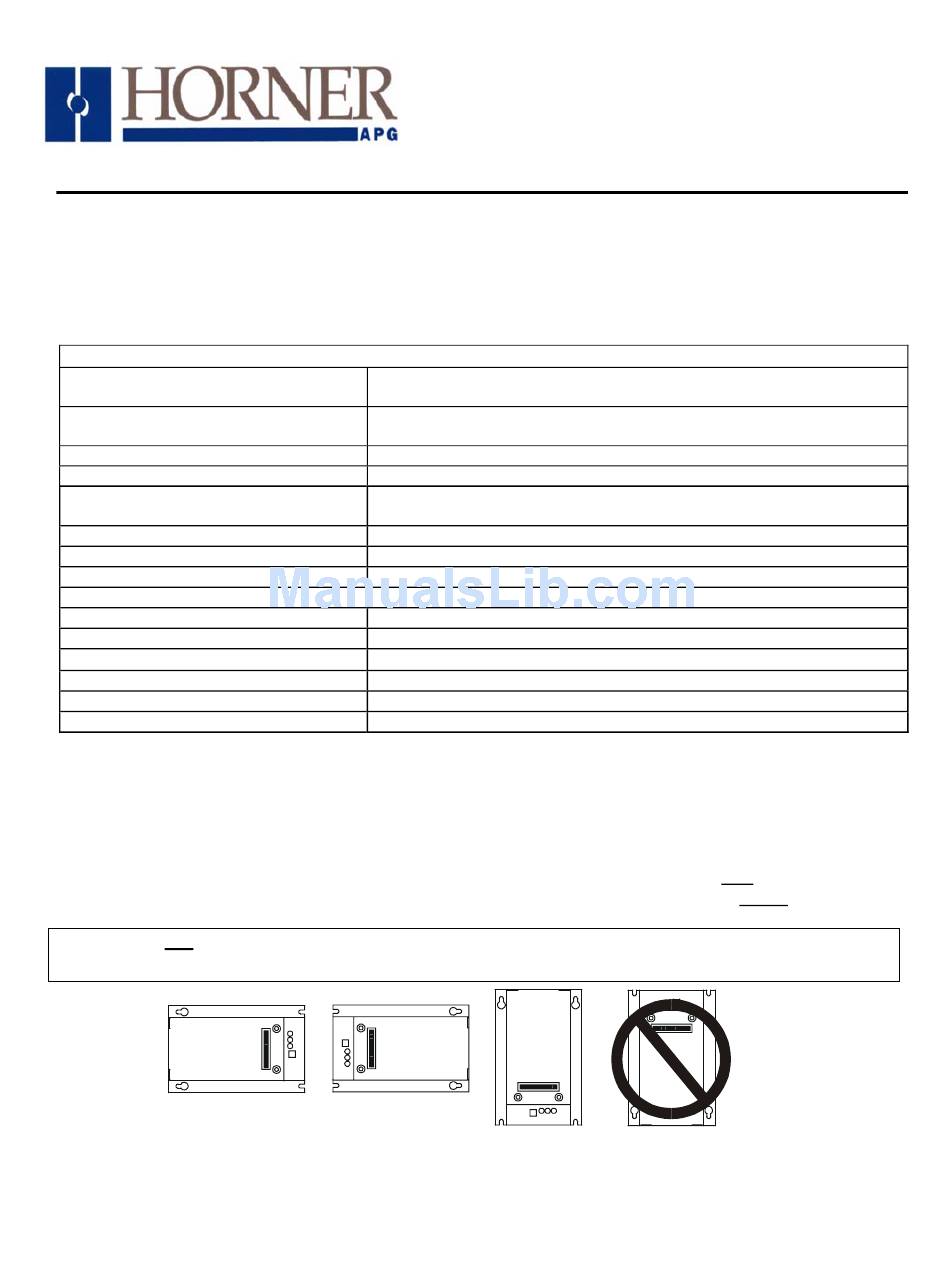

HORNER HE800FOX104 Installation Data

For detailed installation, configuration and other information, refer to the hardware manual of the
controller you are using. See the Additional References section in this document.
1 SPECIFICATIONS
Maximum number of stacks (total
number of hubs and bases)
Maximum number of cable drops to
any specific hub or base
Maximum length of Fiber Optic cable
Base ID#
Expansion I/O
Type of Fiber Optic Cable
Primary Power
Power Draw
Height
Width
Mounting Depth
Operating Temperature
Humidity
UL
CE
2 INSTALLATION
2.1 Mounting Orientation
The base of the FOX104 / FOX404 need to be mounted with the proper orientation. Proper orientation
helps to ensure a good connection when SmartStack Modules are installed. Up to four SmartStack
Modules can be installed per FOX104 / FOX404. The FOX104 / FOX404 is installed inside a panel box.
Caution: Do not instack more than four SmartStack Modules per OCS/RCS/FOX. Improper
operation or damage to the OCS/RCS/FOX and SmartStack Modules could result.
08 June 2005
Fiber Optic Extension System
Table 1 – FOX104 / FOX404
Each Base or Hub must have a unique Base ID #.
EIAJ RC-5720 Plastic Fiber, TX+RX 10m per drop max host (OCS or
Figure1 – FOX104 / FOX404 Orientation
HE800
FOX104 / FOX404
Products Specifications
5
3 (See Section Six for Example Setups)
10 Meters per Drop
hub) to base
EIAJ RC-5720 (RC)
9-30VDC @ 400mA maximum
9-30VDC @ 400mA maximum
4.25" (108 mm)
6.63" (168.3 mm)
4.7" (119.4 mm)
32 - 122°F (0 - 50°C)
5% to 95% non-condensing
Class I, Groups A, B, C, D, Division 2
Yes
and Installation Data
001FOX006
MAN0508-03
