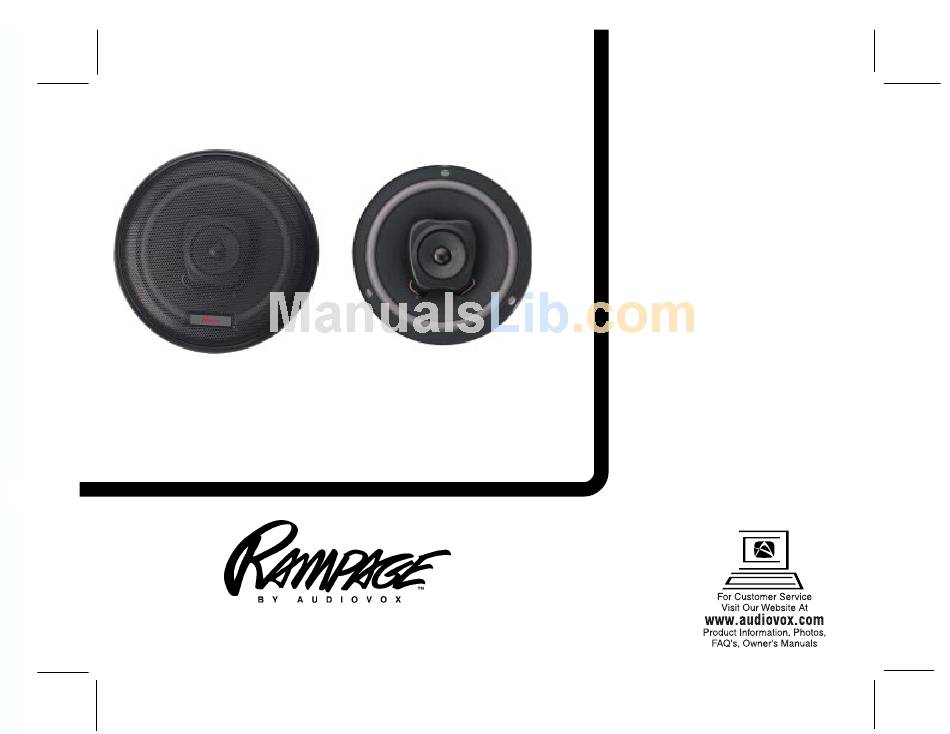

- Page 1 INSTALLATION/ OWNERS MANUAL 6.0 Inch TWO-WAY SPEAKERS 128-6825 Release 6-10-03. 1 of 10...
-
Page 2: Specifications
SPECIFICATIONS " " " " 128-6825 2 of 10... -
Page 3: Pre-Installation Tips
You’ll be amazed what noises a speaker (and your car) can produce when one touches the other. No. 7: Don’t skimp on the quality of the speaker wiring. All Audiovox speak- ers include wiring rated to properly transmit the normal power load the speaker is designed for. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS CAUTION: Do not mount the speakers in the following locations: - Where the door window glass comes in contact with the speaker. - Where the window crank handles or gear assemblies come in contact with the speaker when rotated. - Where the speakers come in contact with the trunk springs, shock towers, or trunk lid. - Page 5 If necessary, remove the door opening handle any accessory. Unless screws are holding the door panel to the door frame, which is very rare, you will find that most door panels are se- cured by spring clips. 3. Using a broad flat tool between door and door panel, un- fasten spring clips.
-
Page 6: Speaker Mounting
Selecting the Speaker Location 1. This is a good speaker location , but to use it, you’ll have to enlarge the existing hole 2. Check for free window crank movement 3. Check for possible braces behind selected area with window down and up 4. - Page 7 Piercing Speaker Mounting Holes 1. Opening 2. Speaker 3. Pierce the speaker mounting holes Using an Existing Hole 1. Speaker 2. Drill 3. Drill the required speaker mounting holes Enlarging or Cutting a New Hole 1. Enlarge or cut new hole per template 2.
- Page 8 Routing Speaker Wires Route the speaker wires as follows: 1. Route speaker wires from stereo into door. If possible, use existing wires. If door is not equipped with grommets, drill a 1/4” hole in door edge and door frame. 2. Connect wires to speaker per stereo wiring instructions. Allow enough slack between door edge and frame to fully open door.
- Page 9 Speaker Mounting Details The following illustrations define the requirements for mounting the speaker on the near and far sides of the mounting surface or inde- pendent mounting board. FACTORY GRILLE SPEAKER EXISTING FACTORY HARDWARE MOUNTING SURFACE FACTORY SPEAKER REPLACEMENT TYPICAL SPEAKER INSTALLATION MESH GRILLE APPLY BUTYL PUTTY (4 PLACES)
- Page 10 ® AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
