Care Essentials
CWS4000 Cocoon Warming System Operator Manual
QPF 053 Revision Y
Date 02.11.2015
Supersedes: 19.12.2014
Page 1
WWWWW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWS 4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Cocoon CWS 4000

Summary of Contents for Cocoon CWS 4000

  • Page 1 Care Essentials CWS4000 Cocoon Warming System Operator Manual QPF 053 Revision Y Date 02.11.2015 Supersedes: 19.12.2014 Page 1 WWWWW...

  • Page 2: Table Of Contents

    Australia ......................14 9.2. Worldwide ...................... 14 10. SPECIFICATIONS ....................15 11. APPROVALS ......................16 12. APPENDIX 1. COCOON CWS4000 PRODUCT INFORMATION ......18 13. APPENDIX 2. COCOON REUSABLE BLANKET WASHING AND FOLDING INSTRUCTIONS ......................20 QPF 053 Revision Y Date 02.11.2015 Supersedes: 19.12.2014...
  • Page 3 In addition, the Cocoon Convective Warming System can be used to provide patient thermal comfort when conditions exist that may cause patients to become too cold or too warm. The Cocoon Convective Warming System can be used with adult and pediatric patients.

  • Page 4: Operation

    Care Essentials CWS4000 Cocoon Warming System Operator Manual product improvement. Product specifications and component types are subject to change without notice. If you, as a user of this manual, have any relevant comments or questions about the CWS4000 or this Manual, your communication with Care Essentials would be welcomed. Our contact details are located on the first page of this Manual.

  • Page 5: Getting Started

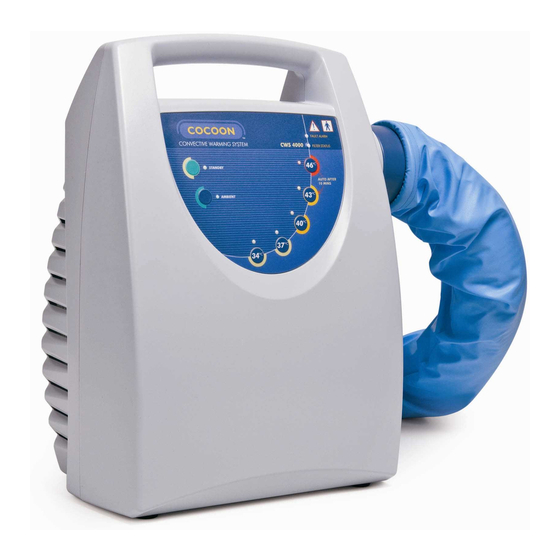

    Care Essentials CWS4000 Cocoon Warming System Operator Manual Figure 5 Operator control panel 1.2. Getting Started Plug the mains cable into a conventional, properly earthed mains power socket-outlet and switch it on. The green Standby indicator (B) will illuminate and the CWS4000 will beep when power is connected.

  • Page 6: Patient Warming Blankets

    Filter life has exceeded 1000 hours and requires replacement PATIENT WARMING BLANKETS Care Essentials manufactures both Cocoon single-use and reusable (available Australia only) patient warming blankets. Use only patient warming blankets and machines recommended by Care Essentials. Failure to do so may result in thermal injury.

  • Page 7: Cws4000 Operating Mode

    34 C (93.2ºF), 37 C (98.6ºF), 40 (104ºF), 43 C (109.4ºF), or 46 C (114.8ºF ). The CWS 4000 will deliver air within the specific temperature range given bellow. Temperature Mode Temperature of Delivered air C±2 C±2...

  • Page 8: Symbols

    Care Essentials CWS4000 Cocoon Warming System Operator Manual SYMBOLS The following symbols are used on the Cocoon Convective Warming System: Follow Operating Instruction Attention: Refer website or manual Dangerous voltage Type BF applied part Do not free hose Single patient Use...
  • Page 9 Care Essentials CWS4000 Cocoon Warming System Operator Manual Date of Manufacture European Authorized Representative European Conformity Protective earth ground Fuse 16°C- Ambient operating temperature range, indoor use only 29°C 55°C Storage Conditions -20°C QPF 053 Revision Y Date 02.11.2015 Supersedes: 19.12.2014...

  • Page 10: Safety Precautions

    Do not position the CWS4000 so that it is difficult to operate the appliance plug and socket.  Do not lay non-porous peach side of the Cocoon blanket touching the patient. Always lay the porous white side of the Cocoon blanket over or under, touching the patient.

  • Page 11: Caution

    Care Essentials CWS4000 Cocoon Warming System Operator Manual  Do not allow the patient to lie on the warming unit hose or allow the hose directly contact the patient’s skin during patients warming, thermal injury may result.  No modification of this equipment is allowed.

  • Page 12: Preventative Maintenance

    Care Essentials CWS4000 Cocoon Warming System Operator Manual PREVENTATIVE MAINTENANCE 5.1. Cleaning  Do not immerse the device or hose while cleaning. Moisture will damage the components and thermal injury may occur.  Do not use a dripping wet cloth to clean the device. Moisture may seep into the electrical contacts and damage the components.

  • Page 13: Troubleshooting

    Care Essentials CWS4000 Cocoon Warming System Operator Manual TROUBLESHOOTING 6.1. Warming Blanket Will Not Inflate  Make sure the CWS4000 is plugged in to an energized mains power socket-outlet.  Check both ends of the delivery hose for proper connection.

  • Page 14: Warranty

    0.5% in Alcohol 70% solution or any other mild, non-staining disinfectant solution) prior to return to Care Essentials. The Cocoon CWS 4000 must be packaged with suitable packaging to protect the machine in transit. (Preferably the Cocoon carton and foam packaging, as supplied with the machine.) Apply the shipping label addressed to Care Essentials Pty Ltd.

  • Page 15: Specifications

    Care Essentials CWS4000 Cocoon Warming System Operator Manual SPECIFICATIONS ELECTRICAL 220-240 VAC, 50/60Hz Rated input 110-120 VAC, 50/60 Hz Supply Power 1100 Watts Maximum 2 x 6.3 Amp 250V Time Lag (T) 5x20mm (220-240 VAC) External Fuses 2 x HBC 10 Amp 250V Time Lag (T) 5x20mm (110-120 VAC)

  • Page 16: Approvals

    Care Essentials CWS4000 Cocoon Warming System Operator Manual Environmental conditions required to achieve 16ºC ( 60.8 ºF) to 29 ºC ( 84 ºF) 30% to 70% relative humidity, non- the specified temperature accuracy condensing, maximum altitude of 2000m Time required to attain the specified temperature accuracy of delivered air following About 2 –...
  • Page 17 Care Essentials CWS4000 Cocoon Warming System Operator Manual Medical Electrical Equipment Part 1: General requirements for safety IEC 60601 – 1: 2007 for CWS 4000/220V-240V Medical Electrical Equipment Care Essentials Part 1: General requirements IEC 60601 – 1 – 2: 2007 for safety Section 2.

  • Page 18: Appendix 1. Cocoon Cws4000 Product Information

    Care Essentials CWS4000 Cocoon Warming System Operator Manual APPENDIX 1. COCOON CWS4000 PRODUCT INFORMATION Model Care Essentials Pty Ltd, Cocoon CWS4000 (220V-240V/110V-120V) Where Marketed Australia, Asia, Middle East, Africa, Europe, North America, South America etc FDA Clearance 510K Approved CE Mark...
  • Page 19 Care Essentials CWS4000 Cocoon Warming System Operator Manual H x W x D 40cm x 29cm x 22cm Weight 6 kg Warranty 1 year Other Specifications Test port through windows Hyper-terminal communications program QPF 053 Revision Y Date 02.11.2015 Supersedes: 19.12.2014...

  • Page 20: Appendix 2. Cocoon Reusable Blanket Washing And Folding Instructions

    Care Essentials CWS4000 Cocoon Warming System Operator Manual APPENDIX 2. COCOON REUSABLE BLANKET WASHING AND FOLDING INSTRUCTIONS Care Essentials recommends the following Cocoon reusable blanket washing instructions to laundries. Washing Instructions Loading Instructions Machines should be loaded to no more than 60% of their capacity to reduce friction to the fabric, which will reduce the longevity of the blanket.
  • Page 21 Care Essentials CWS4000 Cocoon Warming System Operator Manual Sterilisation Reusable blankets can be sterilized in accordance with the sterilizing performance requirements detailed in AS 4187. QPF 053 Revision Y Date 02.11.2015 Supersedes: 19.12.2014 Page 21 WWWWW...
