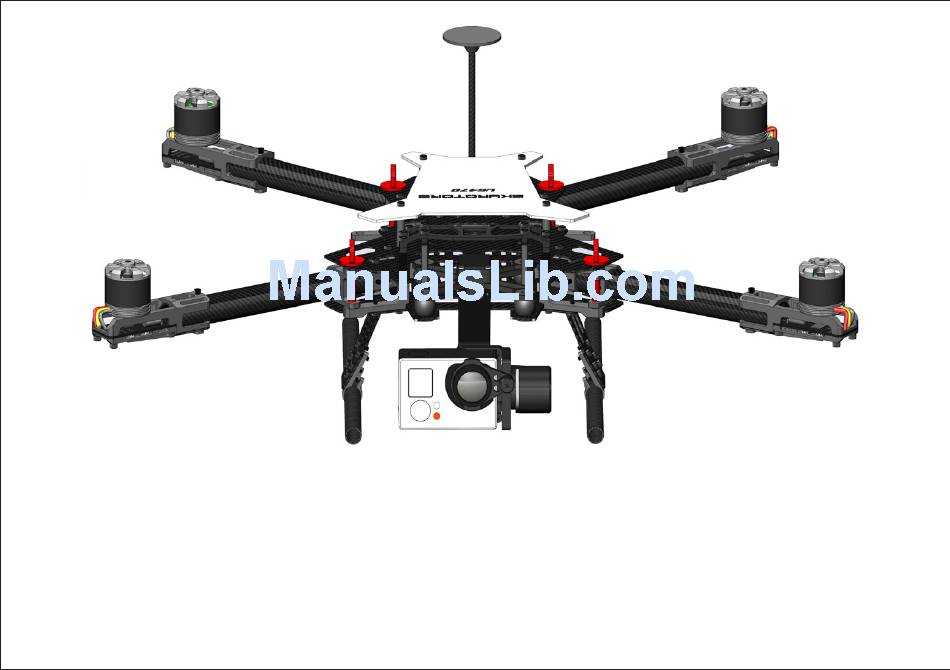

- Page 1 UG470 QUICK ASSEMBLY GUIDE 快速安装指南 V1.0 Please read the manual carefully before usin XJ470 在使用 之前，请仔细阅读此安装指南。 UG470...
- Page 2 Features Tools Required Frame Weight 890g Max Take-Off Weight 1550g Hexagon Screw Driver Max Payload 660g 1.5mm 15mins (1378g with 3S 5000mAh Li-Po） Flight Time Hexagon Screw Driver 2.0mm Parts List 205mm Quantity Component Item No. Name 124mm Alu Parts 470-A001 Fuselage fixed seat 66mm...
- Page 3 Alu Motor Mount Arms Assembly 470-A006 M2.5*22 Hex Screws 14*16*160mm Rear Arm CF Tubes 14*16*170mm Front Arm CF Tubes M2.5*6 Hex Screws Alu Folding Part-A 470-A005 470-A004 Alu Folding Part-B M2.5*6 Hex Screws ESC Cover M2.5*22 Hex Screws 470-A007 M2.5*6 Hex Screws Main Body Assembly 470-S003 Acrylic White Board...
- Page 4 Arms Installation onto Body 14*16*170mm Tube Thumb Screws 14*16*170mm Tube 14*16*160mm Tube M2.5*6 Step Screw 14*16*160mm Tube Landing Gear Assembly Tighten the screws Tighten the screws Remove the screws first Landing Gear Landing Gear...
- Page 5 Gimbal Bracket Assembly Boom Box 470-A009 470-A008 Alu Hanger 470-S001 Alu 5*33 Spacers 470-C004 CF Bracket Part Propeller Assembly P8002-B P8002-A APC 10x3.8 SFP Blade APC 10x3.8 SF Blade Front These parts are on the motor. APC 10x3.8 SF Blade / APC 10x3.8 SFP Blade CAUTION The logo on the blade should be facing upwards and...
