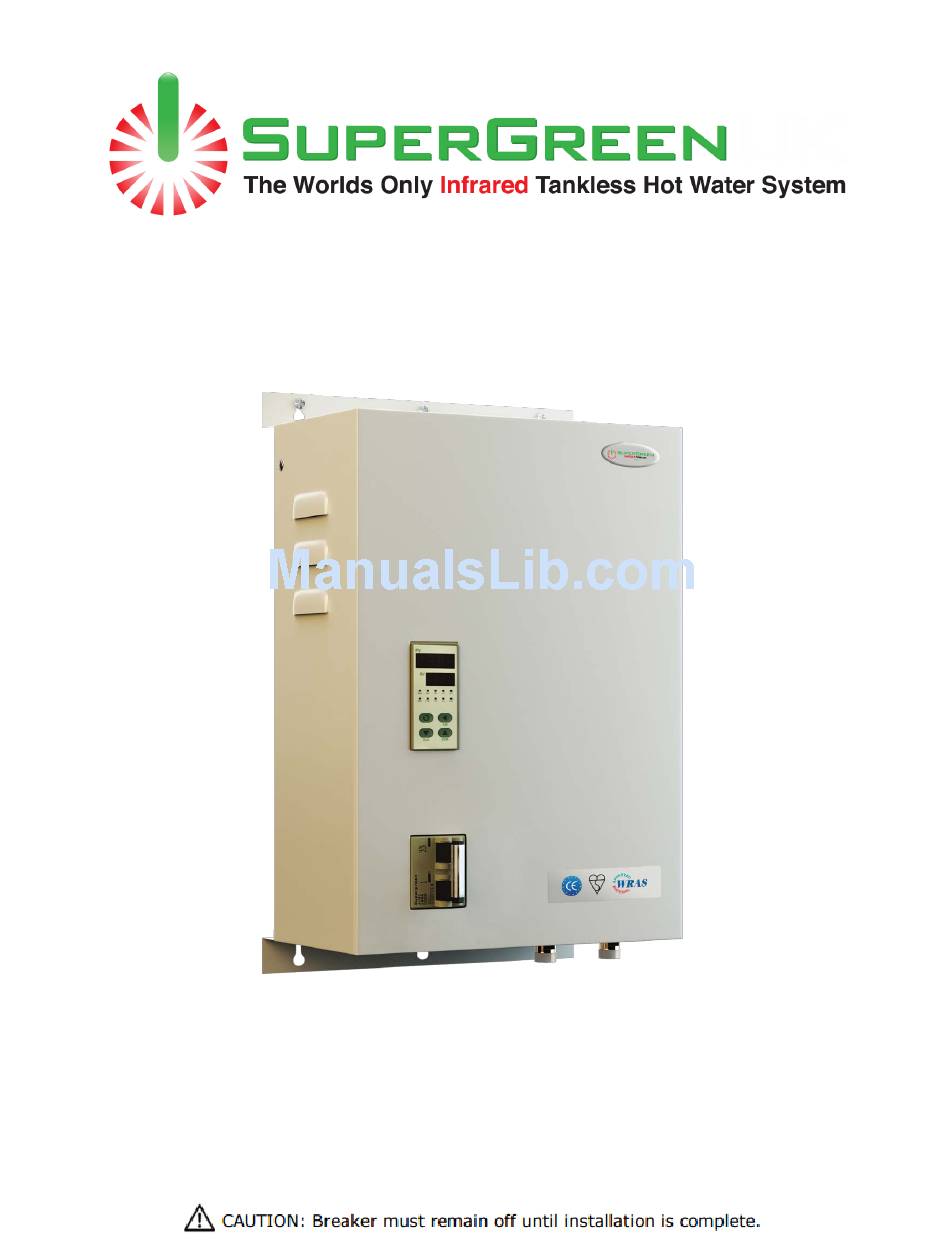

- Page 1 OPERATION & INSTALLATION MANUAL Model: IR-3000, 4000, 6000, 8000 Electric Tankless Hot Water Generators...
-
Page 2: Table Of Contents
Required Parts List ................... 5 INTERFACE ......................6 PID CONTROLLER DISPLAY ................6 MOUNTING YOUR WATER HEATER ................7 ELECTRICAL INSTALLATION ..................9 IR-3000 – IR-8000 Wiring Diagram ..............10 HOW TO CALIBRATE ....................11 TROUBLE SHOOTING ..................... 12 WARRANTY ......................13... -
Page 3: Safety Information
Thank you for choosing SuperGreen products. The most advanced tankless water heaters in the world today using quartz technology and true modulation. All of our products are made with the highest grade materials and professionally assembled. We strive to satisfy each customer with our unit’s superior quality, longevity, and the modern design of all our products. -
Page 4: Introduction
INTRODUCTION SuperGreen Tankless hot water heaters do not store water like a conventional tank-type water heater. It contains multiple high powered quartz heating tube elements that are capable of heating water “on-demand” and continuously as needed, so you will never have to worry about running out of hot water again. -
Page 5: Unit Freezing
Unit Freezing: In case of freezing, please wait for the complete defrosting of the unit before using. Verify this by running water through it before turning on the power. Activating unit while still frozen will damage the heaters internal components and void the warranty. -
Page 6: Interface
INTERFACE IR-3000, IR-4000, IR-6000, and IR-8000 CONTROLLER CIRCUIT BREAKER 240 V CONNECTION PID CONTROLLER DISPLAY Upper Display (PV) – Actual Temperature • Lower Display (SV) – Set Temperature • • Temperature Control Down – Decrease Temperature Up – Increase Temperature •... -
Page 7: Mounting Your Water Heater
MOUNTING YOUR WATER HEATER 1. Leave a minimum of 6” to both sides and 12” on the top and bottom of the unit for clearance and maintenance. A minimum clearance of 24" in front of the unit must be provided for safe removal of the front cover, for installation, advanced troubleshooting, and service if required. - Page 8 This is a Mandatory step to prevent Damage to Heating Elements. Verify all connections are free of leaks. Model Minimum Flow Maximum Flow Connection IR-3000 .50 GPM 2.0 GPM 3/4" NPT IR-4000 .50 GPM 2.2 GPM 3/4"...
-
Page 9: Electrical Installation
CAUTION: Breaker must remain off until installation is complete. SERIOUS BODILY INJURY OR DEATH COULD OCCUR IF YOU IGNORE THIS WARNING. SuperGreen products must be installed by a licensed and qualified electrician in accordance with all applicable national, state, and local electrical codes depending on country. -
Page 10: Ir-3000 - Ir-8000 Wiring Diagram
IR-3000 – IR-8000 Wiring Diagram:... -
Page 11: How To Calibrate
4. Turn off water and unit is set. SIZING GUIDE Incoming Water Temperature MODEL 35 F 45 F 55 F 65 F 75 F NUMBER IR-3000 1.00 1.20 1.40 1.60 IR-4000 1.10 1.30 1.50 1.80 2.30 IR-6000 14.0... -
Page 12: Trouble Shooting
TROUBLE SHOOTING If you are having any problems getting your unit to work after going through the check list, please call our technical support team for any help. TOLL FREE 1-888-270-8452 You can also email us at: customerservice@supergreenusa.com Problem Possible Cause Solution Make sure the breakers Water heater is not... -
Page 13: Warranty
ALL ELECTRICAL COMPONENTS. This warranty will replace the unit in its entirety should it be defective without repair determined by SuperGreen Technical Support for the period above and warranty shall remain in effect from the original purchase date only. A repair fee will be in place depending on the unit. If faster shipping service is desired, the Buyer must select and pay. - Page 14 WITHOUT RECEIPT WARRANTY REGISTRATION BY SUPERGREEN. BUYER ACCEPTS ALL SALES AS FINAL. ANY ALTERATION TO THE PRODUCT VOIDS ALL WARRANTIES. SUPERGREEN PRODUCTS IS NOT RESPONSIBLE FOR ANY OTHER CHARGE OR EXPENSE INCURRED, OTHER THAN THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.
- Page 15 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
