Summary of Contents for Hootoo HT-ND002

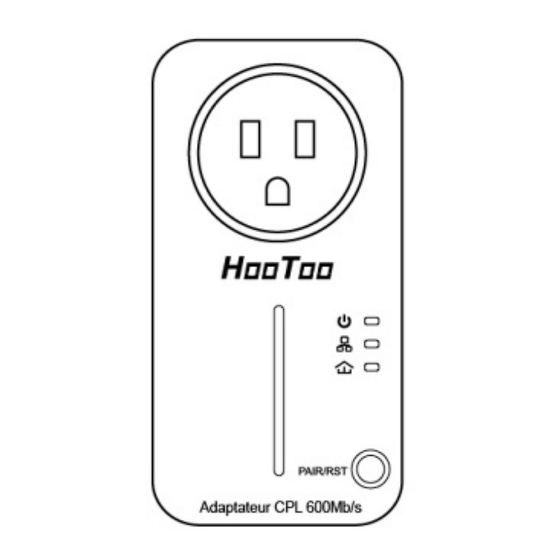

- Page 1 HooToo Powerline Adapter ONLINE GUIDE Model NO.: HT-ND002...
-
Page 2: Table Of Contents
Table of Contents Product Overview ..................1 Introduction ......................1 Package Contents .................... 1 Product Diagram ....................1 LED Indicator ......................2 Physical Interface ....................2 Connection ....................3 How To Connect ....................3 Hardware Connection – Computer ............3 Hardware Connection –... -
Page 3: Product Overview
1 Product Overview Thank you for choosing the HooToo Powerline Adapter. Please read this manual carefully and keep it for future reference. For further assistance, please contact our Customer Support Team at support@hootoo.com. Introduction The Powerline Adapter improves your house's network connectivity and stability: ... -
Page 4: Led Indicator
LED Indicator Light Status Solid The device is powered on. Power LED Blinking Paring. The device is disconnected. The Ethernet port is connected - no Solid data transfer Ethernet LED The Ethernet port is connected - Blinking data transfer The Ethernet port is not connected. Solid The device is successfully paired Pair LED... -
Page 5: Connection
Note: If you press the pair button for more than 10 seconds, the Powerline Adapter will disconnect from the network and assume a new random value. The Power LED turns off temporarily when it disconnects. 2 Connection How To Connect 1. -
Page 6: Hardware Connection - Internet
2． Connect the other end of the Ethernet (RJ-45) cable to the computer’s LAN port. 3． Plug the Powerline Adapter into a wall socket. 4． Turn on your computer. 5． Make sure that the Power LED and Ethernet LED on the Powerline Adapter are turned on. - Page 7 Please, refer to the diagram below: Note: The Powerline Adapter will not affect the other wall sockets in your house. They can be normally used without any risk of interference from the network.
-
Page 8: Advanced Features: Pairing
3 Advanced Features: Pairing Secured Pairing with 128 bits-AES The Powerline Adapter uses a 128-bit AES (Advanced Encryption Standard) pairing connection for safe data transmission. For the Powerline Adapters to communicate with one another, they all need to use the same Network Membership Key (NMK). Secured Powerline AV Network through the Pair Button You can connect multiple devices onto a Powerline network, but you can only pair up to two devices at a time through the pair button. - Page 9 Step 3. The two Powerline Adapters will pair within 60 seconds. The Power LED on both adapters will stop flashing and turn solid. Connect to an Existing Secured Powerline AV Network: How to connect a third Powerline Adapter (C) to the AV Network established between the Powerline Adapters A and B: Step 1.
-
Page 10: Troubleshooting
4 Troubleshooting 1. The Power LED does not light up: Check the following: a) Make sure that the Powerline Adapter is properly plugged into a power socket. b) Make sure that the power socket is active (plug another electric device into it to test). c) Re-plug the Powerline Adapter to the power outlet again. - Page 11 Tech Support: 408-627-7503 (Monday-Friday: 9:00 – 17:00 PST) Address: 46724 Lakeview Blvd, Fremont, CA 94538 EUROPE E-mail: support.uk@hootoo.com (UK) support.de@ hootoo.com (DE) support.fr@ hootoo.com (FR) support.es@ hootoo.com (ES) support.it@ hootoo.com (IT) EU Importer: ZBT International Trading GmbH, Lederstr 21a, 22525 Hamburg, Deutschland ASIA PACIFIC E-mail: support.jp@hootoo.com (JP)
