- Page 1 PRODUCT MANUAL Heavy Duty Backpack Sprayer...

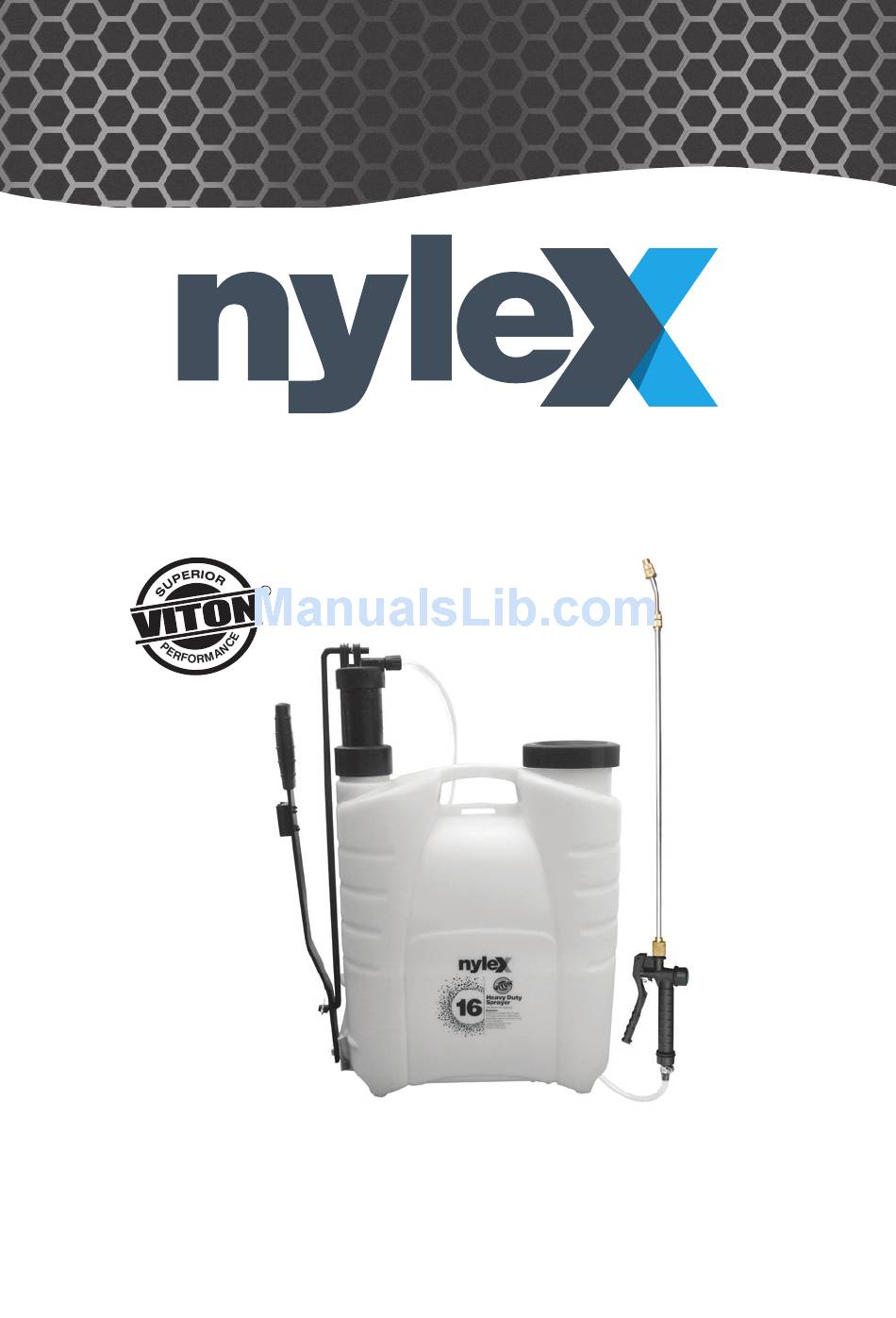

- Page 2 Contents A. Pump lever brace B. Pump lever with lance holder C. Spray Bottle D. Pump Assembly E. Telescopic stainless steel lance with adjustable brass nozzle F. Trigger Assembly G. Hose H. Carry strap I. Bottle filter and cap J. 2 x metal drop pins K.
- Page 3 Assembly Instructions Pump Lever Assembly: Pull the pump lever (B) that is already attached to the bottle down so that it is on a right angle to the spray bottle (C). Attach the pump lever brace (A) by attaching the end with the short bend to the bottom of the pump lever and the end with the long bend to the top of the pump assembly.
- Page 4 Operating Instructions Preparation: Pull the pump lever (B) that is already attached to the bottle down so that it is on a right angle to the spray bottle (C). Remove the bottle cap (I) and fill the bottle with liquid to the desired level. Do not exceed the maximum capacity level marked on the bottle.
- Page 5 Cleaning Ensure that pressure is released and that all sprayer components are rinsed thoroughly with a suitable cleaning agent (refer to liquid manufacturer). This can be achieved by filling the bottle with the cleaning agent, pressurising and then emptying via the nozzle. Ensure liquids are disposed of safely and in accordance with the legislation and liquid manufacturers advice.
- Page 6 Cleaning Instructions Cleaning the pump assembly (cont.) Unscrew the bottom section of the pump assembly. Inspect and clean the pump O-ring. Install a new O-ring if necessary. Pull out the inner part of the pump assembly (D) and cap. Clean all pump parts and seals with water (or a suitable cleaning agent). Reassemble the hose (G) and pump assembly (D) in the reverse order.
- Page 7 Cyclone Tools Pty Ltd ABN: 63 004 235 063 317 Abbotts Road, Dandenong South, VIC, 3175, Australia Australia Free Call: 1800 335 019 Website: www.nylexwatering.com.au www.nylexwatering.co.nz The Nylex brand is licensed to Cyclone Tools Pty Ltd by Nylex Plastics Pty Ltd.
