Summary of Contents for Scan Mobility ScanBed Alpha
-

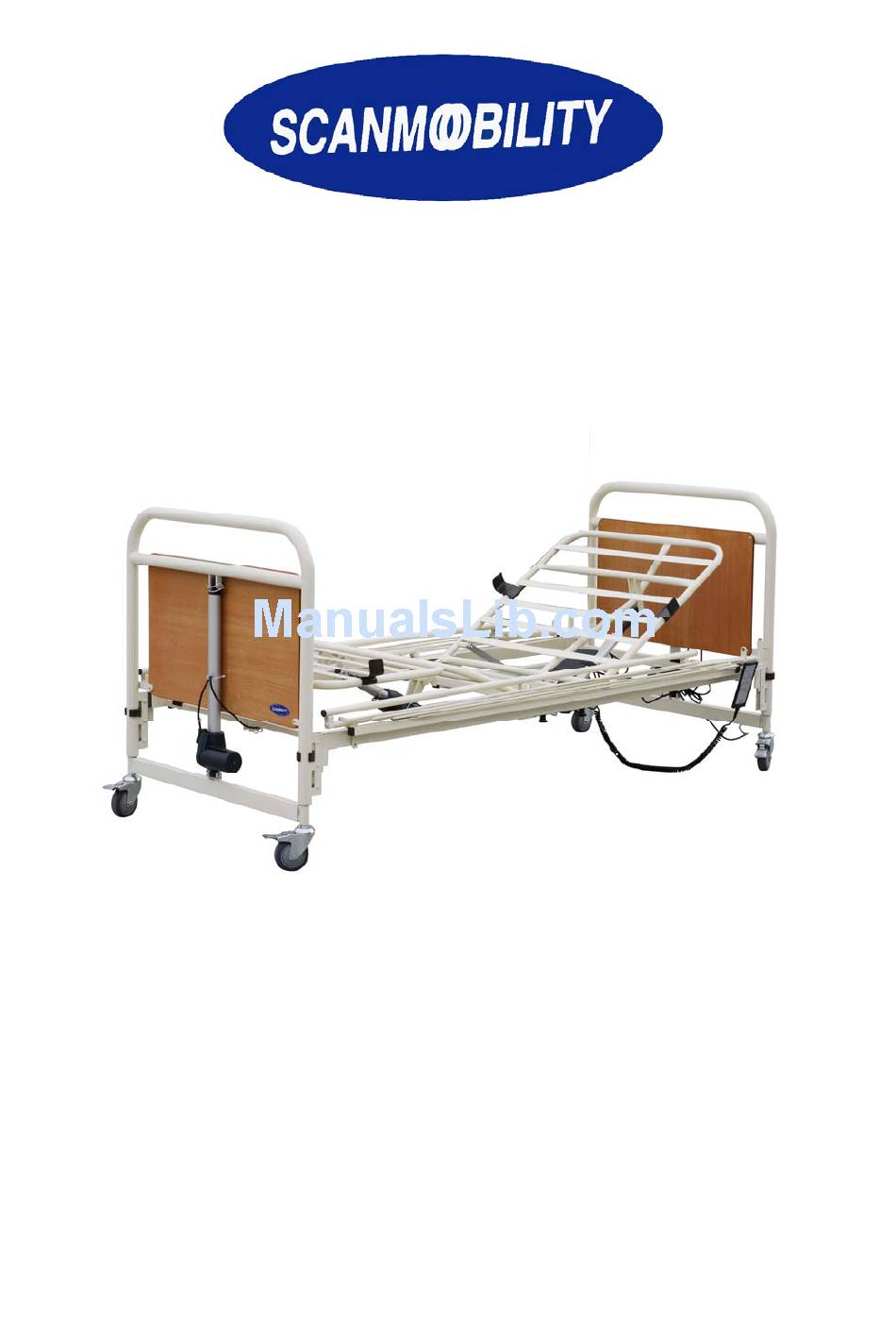

Page 1: User Manual
SCAN BED ALPHA － FOUR SECTION FOR COMMUNITY USE USER MANUAL SCAN MOBILITY LIMITED MARSH HOUSE 90 RALPH’S WIFE’S LANE BANKS, LANCASHIRE PR9 8ER... -
Page 2: Table Of Contents
CONTENTS PAGE General Information Assembly Guidance Direction of Use Accessories Maintenance Technical Information Measurements and Dimension... -
Page 3: General Information
THE NURSING SCAN BED ALPHA Scan Mobility accepts no liability for any use, change or assembly of the product other than as stated in the manual .Accessories not mentioned in this manual not be used. General Information The Scan Bed Alpha is Scan Mobility’s new, separable nursing bed with a sliding back section for more comfort for the patient. -
Page 4: Assembly Guidance
Assembly Guidance for the Scan Bed Alpha Figure 1 - Place the two inserts in the head end of the top frame. The inserts must be mounted in such a way that extends further out of the side tube than the other. -
Page 5: Direction Of Use
Directions of use Electric operation Manual operation Adjustment of Backrest Raising or lowering the backrest to the required angle use the button with the symbol shown on the right. Adjustment of the thigh section (only four section beds) Use the button with the symbol shown on the right. Adjustment of Height of Mattress section Use the button with the symbol shown on the right. - Page 6 Brakes Each of the bed’s 4 wheels is provided with brakes for both lengthwise and crosswise locking. The brake is foot-operated. Emergency lowering of the backrest and/or thigh section – Fig10 An emergency release of the mattress support may be necessary in case of e.g. a power or motor failure.
-
Page 7: Accessories
Operating The Accessories Operation of Siderail UP: Pull the top tube on the siderail towards the end where the release system is placed. DOWN: Press the release button down while pulling the top tube away from the release system. There is a risk of getting squeezed when operating the siderails. Adjusting the height of the Lifting Pole Handle Loosen the cord from the locking block. - Page 8 Using the Transport Fitting See separate instructions for use on transport fitting. Mounting of the Accessories Mounting of siderail The siderail may be mounted with the release system at the head or foot end of the bed. Note: however, that on the extra-long bed the release system MUST be at the head of the bed.
-
Page 9: Maintenance
With normal everyday operation a service inspection is made after two years of use, and thereafter every year. This can be arranged through Scan Mobility. A safety test comprising control of the motors’ performance and mechanical state is recommended once a year. - Page 10 -points of rotation in mattress support -all of the motors’ tension rods -all bearing for motors and rastofix fittings Lubricate with medically clean oil, e.g. SCAN-WO-50 or similar A service contract can be arranged by contacting Scan Mobility’s head office.
- Page 11 Trouble-shooting in the electrical system Service and maintenance of the Scan Bed Alpha may only be performed by personnel who have received the necessary instruction or training. Symptom Possible Cause Remedy 1) Connect mains 2) Change the fuse, if control 1) Mains not connected Mains indicator does nor light is designed for external...
-
Page 12: Technical Specifications
Technical specifications All measurements are stated in cm. All angles are stated in degrees. All measurement and angles are stated without tolerances. Voltage supply:220V，50Hz Max. current input: 4.5 A Voltage output: 24V Protection class: IP 54 Insulation class: II, type B The patient is not separated from the ground and the chassis.
