Atex GL10M Installation Manual

Long Silicone Light RGB GL10M Installation Manual
We will appreciate for your purchase of 'Long Silicone Light'. Please use this manual and install correctly and safely.
Power Supply voltage is 24Vdc only.
□
Please do not apply other voltage such as AC100 to
230V. It will cause fume or fire.
It is indoor/outdoor use. It can not be used at the
□
following places,such as "Under watar " "High humidity
and High temperature""Atomosphere of corrosive gas
""Damage from salt breeze".Because it will cause fume.
When bending horizontaly , minimum allowable Bending
Radius is 30mm.
□
It is not allowed to bend verticaly. It will cause cracks at
the solder points.

SPECIFICATION

Product Name Long Silicone Light RGB COLOR
Product No. GL10-90A1M-01
Supply Voltage DC24V
Power Consumption 20 W / m
Cut Unit at every 18 LED's
COLOR Red,Green,.Blue and synthetic colors
Use at Indoor/Outdoor -10～55℃
(Dust and Water proof）
environment
Dimension W88.8 (13)×H 15.5 (19.7) ×L mm
Weight 160 g / m
Bending Radius MAX. R30 mm (Length direction)
Accessories (Include) Endcap×1, Adhesive×1
Light Source LED
LED Pitch 10 mm
※ May not ship with endcap and adhesive such as custom specification products.

WARRANTY

□ The warranty is valid for 1 year after the delivery.
CONTACT US
□ If you have any questions about this product,
please contact our sales offices as below.
ATEX CO.,LTD
Hikaren Building No.B, 2-3-20, Toukou, Hakata-Ku, Fukuoka-City,
Fukuoka, 812-0008,Japan
TEL +81-92-414-8708
URL http://www.atex-jp.com
Advanced Technology Expert America Inc.
386 Beech Ave. #B1, Torrance, CA 90501, USA
TEL +1-310-328-4131
Advanced Technology Expert International Pte Ltd
25 Tagore Lane #03-11, Singapore Godown, Singapore 787602
TEL/FAX : +65-6459-3211
WARNING
( ) size of ends
FAX +81-92-414-8709
FAX +1-310-787-0837
The power switch must be turn off when performing
□
installation or removal.
Please do not miswire the poｌarity of power supply. It will
□
cause problems.
Please be careful that eyes might be hurt when you look
straight at light emitting part.
□
When installed in a closed device, ambient temparature
must be -10 to 55℃.
□
Please be careful about static electricity.
It will damage LED's.
□
Please note that there is some variation in color among
LED's.
□

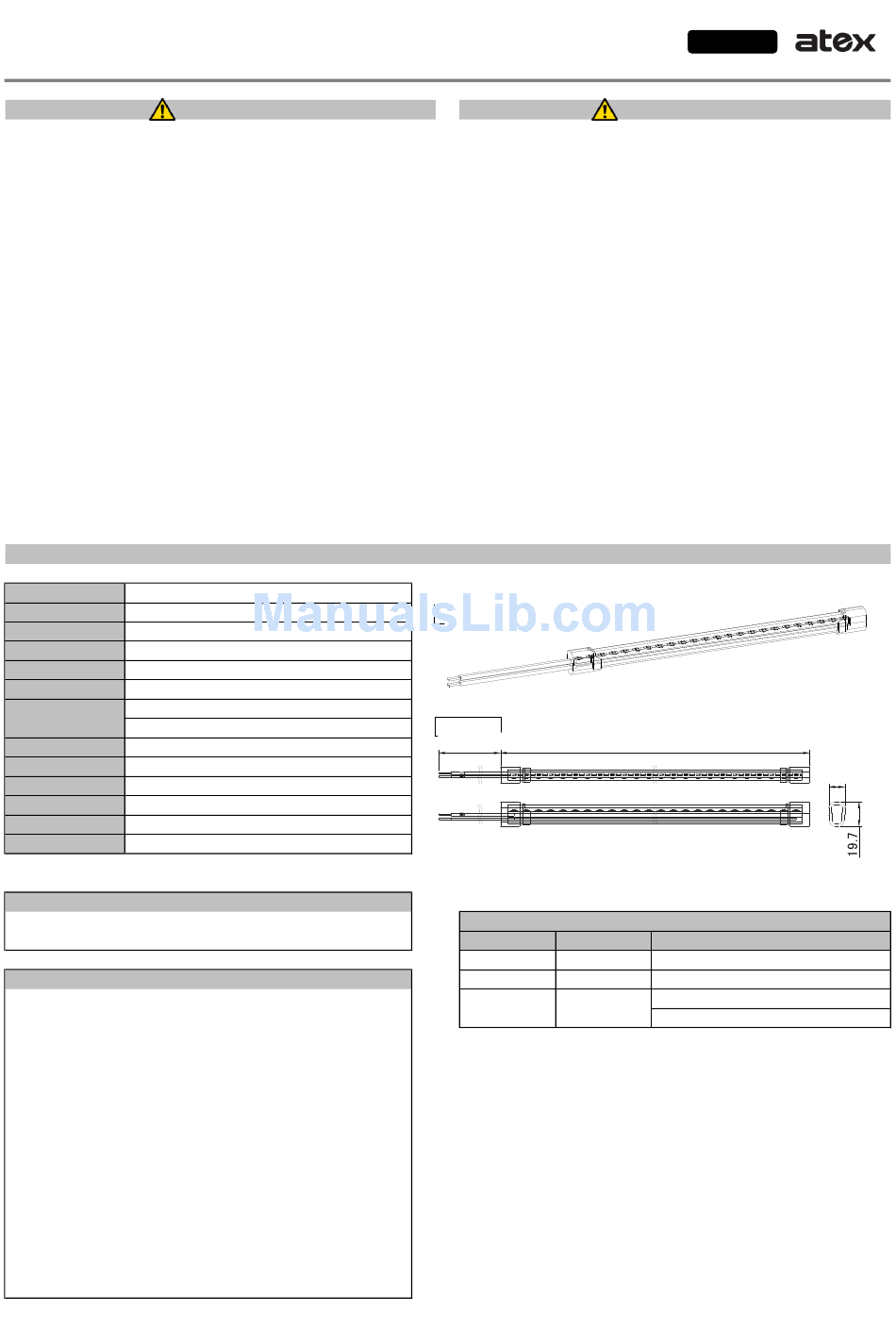

3D Drawing
2D Drawing
150 915 ～ 4515 ±15

ACCESSORIES (OPTION)

Product Name Product Number
Straight Channel FAS00-01S
Flexible Channel FAC10-01S
Fixing material FJB30-01
For Keeping
PRECAUTIONS
Remarks
Aluminium / L=1000mm
Aluminium / L=1000mm
When installing Long Silicone Light,
they can be used with Aluminium Channel.
13
unit：mm
