VMS-CS-I-VZ
1080p Ultra-WDR Zoom AF Box IP Camera
This guide is for quick installing and connecting the Full HD Multiple Streams Ultra-WDR Zoom AF Box IP Camera.
For more details, please refer to the User's Manual of the camera in the supplied CD.

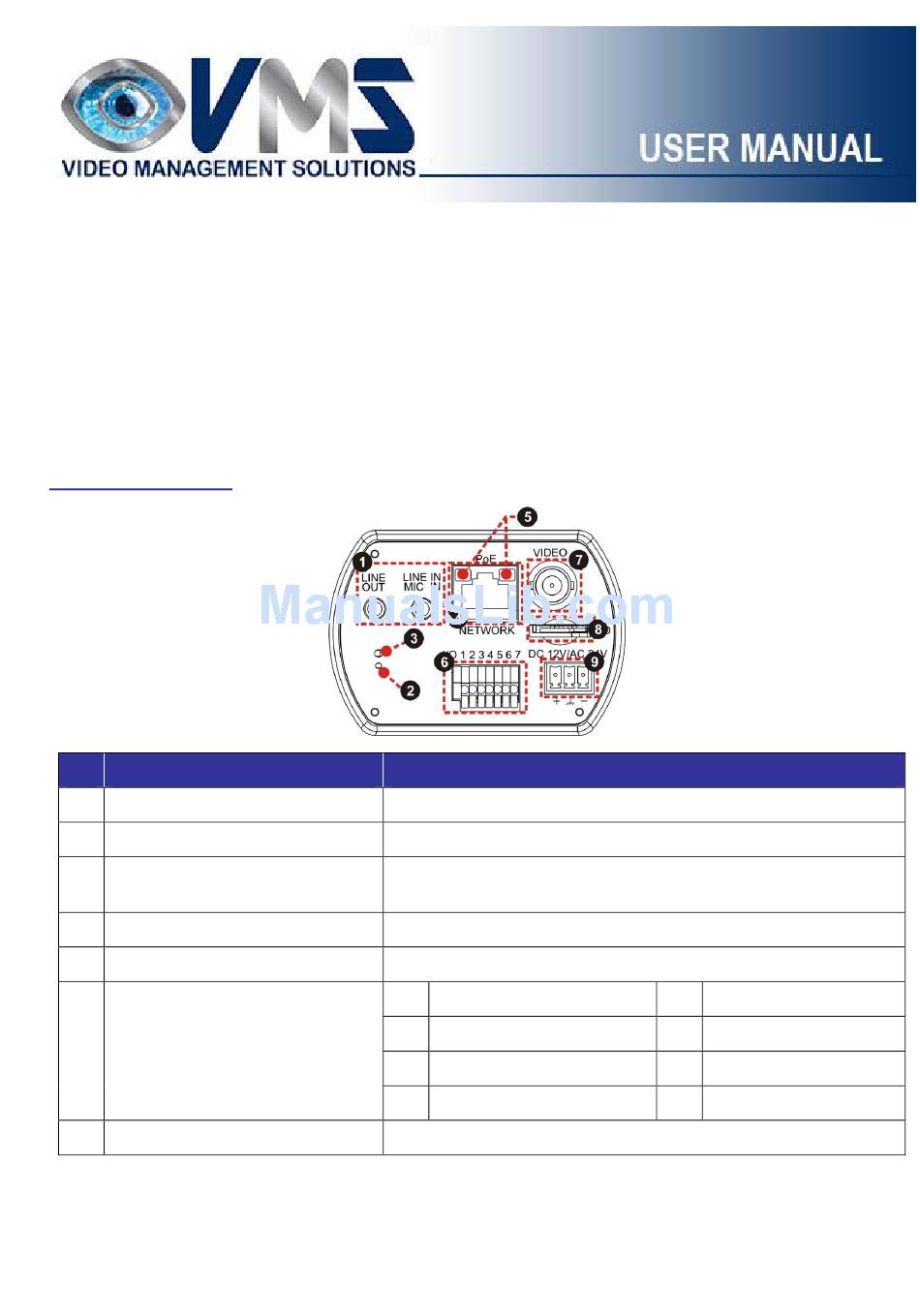

Camera's Connectors
No.
Connector
1
Audio I/O
2
Power LED
3
Default Button
4
RJ-45
5
Network LEDs
6
Alarm I/O
7
BNC Connector
Two-way audio transmission
For power connection indication (green light)
Press the button with a proper tool for at least 20 seconds to restore
the system.
For network and PoE connections
For network connection and activity indication
1
Alarm Out +
Alarm Out –
2
3
Alarm In +
Alarm In –
4
For analogue video output
Definition
5
GND
D –
6
7
D +
Advertisement
Table of Contents
Summary of Contents for VMS CS-I-VZ
- Page 1 VMS-CS-I-VZ 1080p Ultra-WDR Zoom AF Box IP Camera This guide is for quick installing and connecting the Full HD Multiple Streams Ultra-WDR Zoom AF Box IP Camera. For more details, please refer to the User’s Manual of the camera in the supplied CD.
- Page 2 DC 12V Insert the microSD card into the card slot to store videos and microSD Card Slot snapshots. Do not remove the microSD card when the camera is AC 24V powered on. DC VIDEO ＋ DC 12V AC 24V 1 1 2 3 4 I/O Power (DC 12V / AC 24V) DC 12V Reserved...
- Page 3 ins or setting Internet’s security level to default. For further details, please refer to the User’s Manual in the supplied ActiveX Controls and Plug-ins Settings Internet Security Level Step 1: Start the Internet Explorer (IE). Step 1: Start the Internet Explorer (IE). Step 2: Select <Tools>...
- Page 4 The main page of the IP camera user interface is shown as the figure below. Please note that function buttons will vary depending on the camera model. NSW - Silverwater Unit 4, 52 Holker Street Unit 3 / 1 Rocklea Drive 22 Isa Street Silverwater NSW 2128 Port Melbourne VIC 3207...
