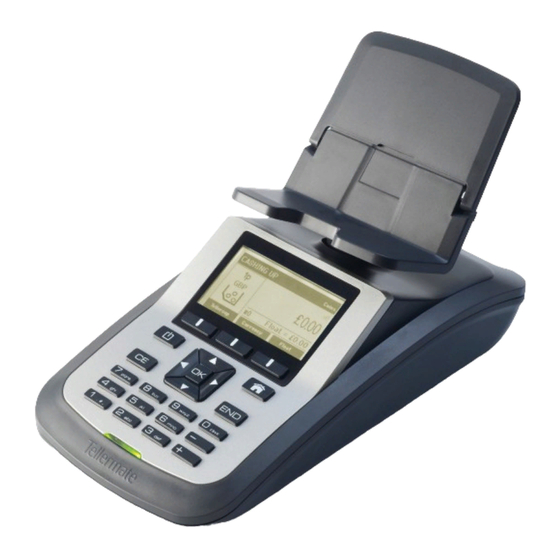

Summary of Contents for Tellermate T-ix series

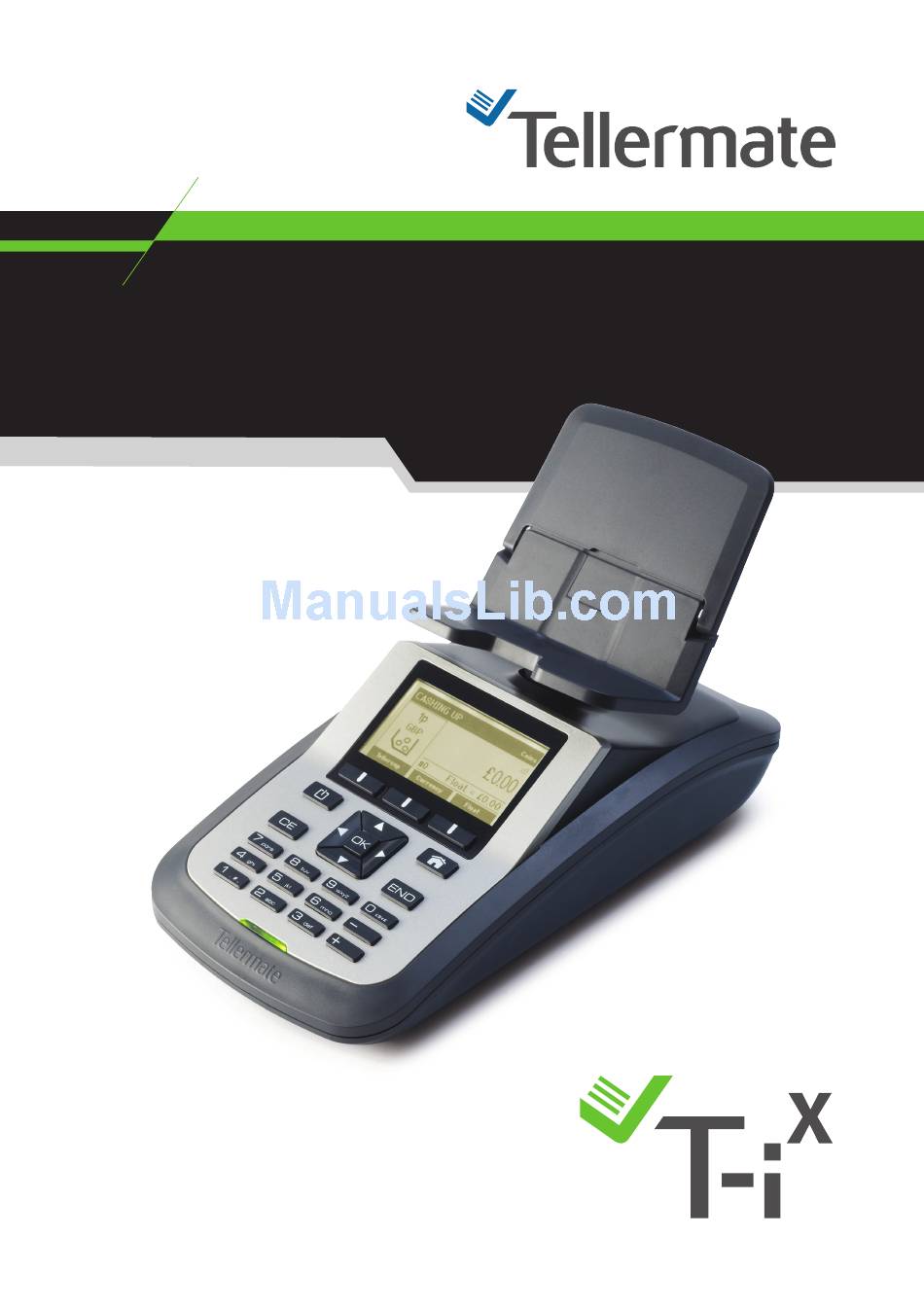

- Page 1 User Guide For all T-i Models...
-
Page 2: Table Of Contents
user guide for all T-i models Page Introduction ..............................2 Using your T-i effectively ..........................2 Safety information - using your T-i safely ....................2 What you get ............................. 3 Installation ..............................4 Ports ................................4 Display and buttons ............................ 5 Counting What you can count with your T-i ...................... -
Page 3: Introduction
2. When counting notes, raise the coin tray – when counting coins, lower the coin tray. 3. When counting loose coins, use the Tellercups supplied by Tellermate 4. Place items on the unit carefully; do not throw or drop them. -
Page 4: What You Get
What you get Universal Power Supply & power cord Tellercup Z-160 Money Platform Quick Start Guide Optional Extras Printer Battery Tellercup Coin Sorter TellerComK If you require any further information about the optional items please contact your Tellermate dealer. -
Page 5: Installation
Installation To fit, lower the Money Platform down until the magnetic connector slots into position. To release, twist and lift. Rear Ports Serial: If you have a printer plug it in here. If your T-i is configured to USB-A: Used for PWR: Connect the connect to a PC via serial, connect software upgrades only... -
Page 6: Display And Buttons
Display and Buttons Current count format: Notes/ Coins/ Coupons/ Currency and Tokens or Media denomination Count type Displays the count mode in use. Notes: loose, banded, clipped or sleeved. Coins: Quantity of items Tellercup, bag or roll that are currently on CASHING UP Notes the Money Platform... -
Page 7: What You Can Count With Your T-I
What you can count with your T-i Money Counting Modes has many different modes for counting money. A mode is a term used by Tellermate to describe the different ways in which money is packaged. Modes will differ according to T-i model. -
Page 8: Counting Tasks
Counting - Tasks From the Home screen press to select a HOME task then press to confirm. Cashing Up Cash Lift *Counting tasks differ by T-i model, your T-i may have some but not all of the tasks described below. Bank Preparation Task Type Description... -
Page 9: Getting Started
Counting - Getting Started Starting To switch on- Press the key. Home Page Your T-i software will come with pre-programmed counting tasks to help you process your money. Use the buttons to select a count task and confirm by pressing Using the keypad* * selected models only The keypad allows you to enter reference numbers and the... - Page 10 Counting - Getting Started Reference Numbers CASHING UP gives you the capability to input reference numbers for Till Tills, Cashiers, Operator and Store*. To enter a reference number simply use to highlight the reference, (Till is Cashier highlighted in this illustration) then press to nudge the Operator reference number between 0-99.
-
Page 11: 15-20 Notes
Counting - Notes Counting Loose Notes 15-20 Notes Count one denomination at a time. Use the key to select the denomination. Stack the notes against the short side of the Money Platform with the platform up as per diagram. Stack in batches of 15-20 notes at a time without Stack without removing removing them. - Page 12 Counting - Notes Counting Sleeved Notes CASHING UP Notes Use the key to select the denomination. x 100 £5 Press the left hand key to select sleeve mode. £500.00 Place the first sleeved bundle on the Money Platform. After the value has been displayed, more sleeved notes #1 Total = £642.09 may be added.
-
Page 13: Coins
Counting - Coins Counting Full Bags / Rolls Your T-i is set up to count either rolls or bags of money. The next three sections show how to count bags, but are also applicable to roll counting. • Use the key to select ‘Full Bag’. - Page 14 Counting - Coins Counting Bags (or part full bags) CASHING UP Coins Bag mode allows you to count the contents of a bag (full / part full) of a pre-selected denomination. ++Added++ • Use the key to select the denomination. •...
-
Page 15: Other Media
Counting - Other Media Counting Coupons/Vouchers CASHING UP Coupons Use the keys to select coupons (see top right of x 15 Vchr display). £75.00 Use the keys to scroll through your enabled coupons. Coupons and vouchers can be counted by stacking on the #1 Total = £16.09 money platform in the same way as notes. -
Page 16: Ending A Count
Counting - Ending a Count Ending a Count COUNT SUMMARY When all of your items have been counted press the (437) £4.37 key. This ends the current count and takes you to the Count Summary screen. To view a count summary of (291) £5.82 another currency that has been counted, press the middle... -
Page 17: Tasks
Multiple transactions from many cashiers and tills can be stored. When a till number is entered Tellermate searches its internal records to see if there is an existing record for this till. Any new transactions will be added into the GRAND TOTAL with those that have already been processed. -
Page 18: View Tills
Counting - Multi Till Tasks and Multiple Transactions Your T-i multi-till has four additional tasks which assist the management of count information in a multi-till environment. These tasks can be accessed from the Home Page. HOME HOME View & Amend Tills View Grandtotals View Grand Totals Print/Clear/Send... -
Page 19: View Grand Totals
Counting - Multi Till View Grand Totals Allows you to view the total number of tills counted and the combined grand total of all tills. Starting at the page, use the key to scroll to View Grandtotals and press . You can also print or send data with a full breakdown by denomination of the money counted across all tills by pressing the relevant key. -
Page 20: Settings Unit Settings
Settings Settings Unit settings can be accessed from the page. Using the key, scroll to SETTINGS and press Use the key to select an option from the SETTINGS list and press to enter that section. Each option is described individually in the following section of this user manual. Date and Time SET TIME hh/mm/ss... -
Page 21: Display Settings
Settings Display Settings BACKLIGHT STATUS Backlight To switch the Backlight ON or OFF highlight “Backlight” in Press Change to amend and OK to the “DISPLAY SETTINGS” screen by using the key, then confirm press Then follow on screen instructions as seen in the Back Change illustration. -
Page 22: Set Up Wizard
Set up Wizards set up wizards enable you to easily configure your unit to meet your needs. SET UP WIZARD From the Page press the key and highlight Setup Wizard. Now press Note Wizard will now display the Set up Wizard screen (shown Coin Wizard opposite*). -
Page 23: Diagnostics
Diagnostics From the Page use the key to highlight Diagnostics. Now press Use the key to scroll through the menu items and press to enter a selection. Alternatively, enter a selection using the key then use the right hand key to move through all diagnostics screens consecutively. -
Page 24: Weighing Scale
Weighing Scale Weighing Scale From the Page use the key to highlight Weighing Scale. Now press The following screen will be displayed: WEIGHING SCALE Grams Back The maximum working capacity of T-i is 2kg. Note: The weighing scale function is not an ‘Approved legal for trade’ function. -
Page 25: Ec Declaration Of Conformity
EC Declaration of Conformity This is to certify that: All Tellermate T-i models manufactured by Tellermate Limited, Leeway, Newport, UK, conform to the Low Voltage Directive 2006/95/EC, and the Electromagnetic Compatibility Directive 2004/108/EC by application of the following standards: BS EN 60950-1: 2006... -
Page 26: External Interfaces
Counting resolution - 1 banknote/coin For upgrading product firmware Dimensions: Serial (optional) including Money Platform For connection to a Tellermate supplied printer Length 291 mm (11.4”) Width 152 mm (6.0”) Height 166 mm (6.5”) USB - B (optional) For connection to PC for data transfer Weight: - 0.98 kg (2lbs 2oz) - Page 27 Leeway, Newport NP19 4SL, UK www.tellermate.com Registered Company since 1981 Company No. 1522341 Alternative Contact Details: If you have purchased this unit from a Tellermate Partner, they may have put alternative contact details here: 904589K GB V28/15...
