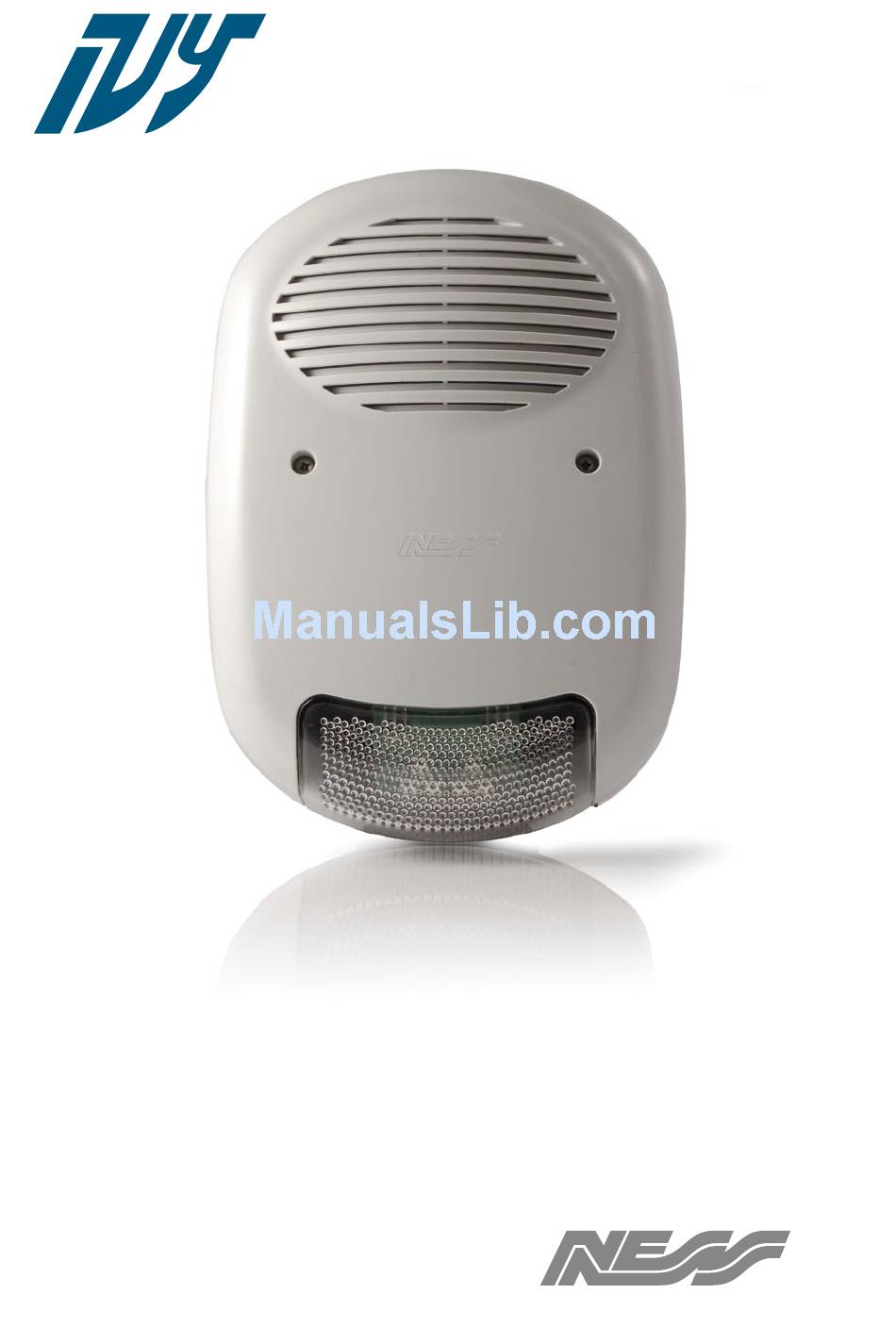

- Page 1 Ness IVY Self-Powered Siren for Outdoor Use InStallatIOn & PrOgrammIng manUal I n n o v a t i v e E l e c t r o n i c S o l u t i o n s...
-
Page 2: Table Of Contents
Installation and Programming manual Table of contents Table of contents....... 2 Chapter 1 Overview . -
Page 3: Table Of Contents
Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement. -
Page 4: Overview
Ness Corporation also offers Ivy unit units which can be connected to SmartLiving intrusion control panels via I-BUS (for remote programming and management purposes), thus providing first rate security-system customization capabilities. -
Page 5: Product Description And Models
Installation and Programming manual Product description and models Description: Self-powered outdoor sounder/flasher Year of production: 2014 Applied Normative: CEI 79-2:1998+Ab:2000 (level 2) Certification agency: Table 1: Models Name Description Ivy-F Standard model with foam-tamper protection Ivy-BF BUS connectable model with foam-tamper protection Table 2: Operating features Ivy-... -
Page 6: Technical Description
Installation and Programming manual • 2 securing screws for the plastic casing • 5 wall plugs for mounting the backplate and tamper bracket • Drilling pattern • Installation and Programming manual • Programming Table Technical description Table 3: Description of parts Programming button (PAGE) Programming button (SEL) Magneto-dynamic horn... - Page 7 Installation and Programming manual Table 5: Technical specifications nominal 13.8 V Operating voltage maximum 14.0 V minim 13.2 V Minimum current draw 15 mA Maximum current draw from panel 150 mA Maximum current draw from 900 mA battery Sounder output (l=3m) 104 dB(A) Carrier frequency 1148 Hz...
-
Page 8: Installation
Wiring the device The following paragraphs describe the various ways of connecting the Ivy unit to an intrusion control panel (in particular to a Ness SmartLiving intrusion-control panel as supplied by Ness Corporation All connections involve the terminals on the motherboard (Table 3, F). - Page 9 I-BUS Only the Ivy-BF, can be connected to the I-BUS connections on the Ness SmartLiving Series panels. This connection allows you to CONNECTION program the device and activate alarm-signalling directly from the panel.
-
Page 10: Battery Connections
Installation and Programming manual EXTRA Connection of the LED terminal to an open-collector output, will allow management of the STATUS and PRG LEDs, flasher and horn CONNECTIONS directly from the intrusion-control panel (as programmed). Connection of the FAULT and TAMPER outputs to a terminal on the intrusion control panel allows signalling of the associated events. -
Page 11: Activation Methods
Installation and Programming manual Chapter 3 ACTIVATION METHODS The Ivy unit can be triggered by signals from the panel, depending on the wiring method used and also by events generated by the Ivy unit itself. signalling will cease when one of the following conditions occurs: •... -
Page 12: Managing Multi-Alarm Conditions
Installation and Programming manual START INPUT The START ancillary input is completely programmable, therefore, it can activate the sounder/flasher by means of either positive signals (Applied/Removed) or negative signals (Applied/Removed). STOP INPUT The STOP signal allows you to force the Ivy unit to standby status thus blocking all signalling. -
Page 13: Signalling
Installation and Programming manual Chapter 4 SIGNALLING The Ivy unit provides various signals: audible, visual, activation of the FAULT and TAMPER outputs (connectible to the intrusion-control panel). Each signal type can be programmed separately, combined with other signals, or deactivated. Types of signalling VISUAL The super-bright flasher uses new-generation Light Emitting Diode... -
Page 14: Tamper Memory And Fault Signalling
Installation and Programming manual Tamper memory and fault signalling The STATUS and PRG LEDs provide visual signalling of horn faults and tamper memory by emitting a series of fast blinks (at 0.5 second intervals). This visual signalling phase lasts approximately 5 seconds after which, the LEDs emit slow blinks (duration of 1 second) which signal the type of fault or tamper. -
Page 15: Programming
Installation and Programming manual Chapter 5 PROGRAMMING The programming session cannot begin until after first startup, therefore, it is necessary to ensure that: • all power sources to the Ivy unit (mains and battery) are disconnected; • the tamper protection is open; •... -
Page 16: Programming Menu
Installation and Programming manual Programming Menu The following table shows, under the caption “Menu”, all the options on the Programming menu and their respective LED combinations: Table 7: Programming Menu Menu Options 3 2 1 0 3 2 1 0 3 2 1 0 3 2 1 0 3 2 1 0 combinations Num. - Page 17 Installation and Programming manual • 0 - PRG LED • 1 - Right LEDs on flasher circuit • 2 - Left LEDs on flasher circuit • 3 - STATUS LED • - LED Off • - LED On solid • - LED blinking Instead (under the caption “Options”), the programmable settings for each item, highlighted on a grey background (...
-
Page 18: Programming From A Pc
Installation and Programming manual Programming from a PC Only BUS-connectable Ivy units can be programmed via PC. The SmartLeague software will allow you to program/change the previously mentioned parameters/settings of the Ivy unit. PATTERN Additionally, the software application allows you to program the “patterns”, that is to say, the type of signalling, duration and volume of the audible signals. - Page 19 Installation and Programming manual The 8 available types/patterns, preset at default, are programmed as indicated in the table: Table 9: Pattern - default Activate STATUS LED Sounder Flasher Flash Description Activate Sound Activate PRG LED duration Volume duration mode of pattern sounder type flasher...
- Page 20 Installation and Programming manual TEMPERATURE If the temperature inside the sounderflasher indicated in the “Real time” is inaccurate, you can use this section to set the real value of DETECTED the temperature adjusting the "Temperature detected" gauge to the real vaule and by pressing “Offset”. LED ACTIVATION This section allows you to programme the PRG and STATUS LEDs of each sounderflasher.
-
Page 21: Appendix A Order Codes
Installation and Programming manual Programming...
