Summary of Contents for Partron URBAN S BAND
-

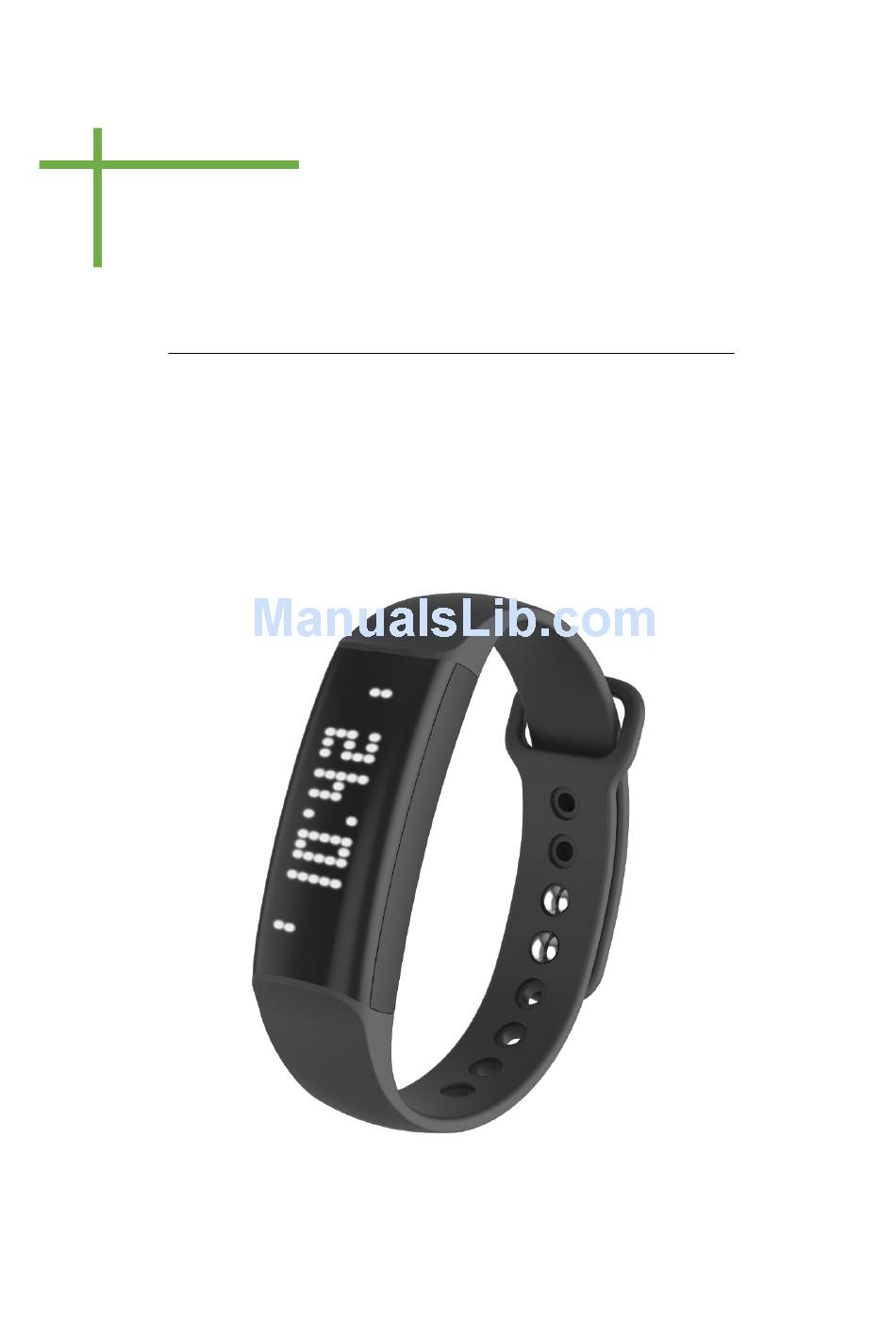

Page 1: User Manual
User Manual URBAN S BAND (PWB-200) -
Page 2: Table Of Contents
Table of Contents 1. Product Specifications 5. URBAN S Band Mode Explanation 1) URBAN Mode 2. Components 2) Exercise Mode 3. Name of Each Part and 3) Other Indication Items Description 4) Measurement of Heart Rate and Altitude 6. URBAN S App Tutorial... -
Page 3: Product Specifications
1. 1. Product Specifications Product Name Croise URBAN-S Product Type Smart Band Model Name PWB-200 Manufacturer Partron Co., Ltd. Certification Water Resistance IPX8 Display LED Matrix(24x5) Heart Rate, Atmospheric Pressure, 6-axis Sensor Accelerometer Communication Mode Bluetooth 4.0 Compatible with Android 4.4 or above / ios 8.0 or above Main Body Size 49.10 x 15.30 x 10.9 [mm]... -
Page 4: Components
2. Components <Band> <Main Body>. <Charging Cradle> 2. Name of Each Part and Description 1) Name of Each Part and Description Button PPG (Heart Rate) Sensor <Front> <Back>. 2) Power On and Off Power On: When you press and hold the button for more than 3 seconds, the system powers on with the message saying 'Hello!'. -
Page 5: Urban S Band Usage
2. Install the main body 1. Detach the main body. connector to the cradle installed. onto the charger. 4. URBAN S Band Usage 1) Normal Mode Each time you press the button of the band on the initial screen, the number of steps,... - Page 6 App. If you use the band only, information such as the exercise route will not be indicated. 5. URBAN S Band Mode Description 1) URBAN Mode - Urban Mode measures the number of steps and the heart rate by checking the user condition.
- Page 7 2) Exercise Mode - Exercise Mode reports the information about your exercise based on your specific workout mode: walking, running, climbing or cycling. (The workout information can vary according to the environment and the physical information.) - During the exercise mode, you can check your burned up calories, distance, pace, and number of steps. Start: Indicates the start of the exercise mode.
- Page 8 3) Measurement of the Heart Rate and the Altitude You can measure your heart rate and altitude anytime anywhere. <Heart Rate> <Altitude> Note The measurement of the heart rate and altitude cannot be performed from the band alone. (The measurement can be performed using the App.
- Page 9 6. How to Use the URBAN S App 1) Reading the Tutorial Install the Urban S App from the Play Store or the App Store. Once the App is run, the tutorial pages are automatically displayed. Read each page while you swipe left to move on to the next page. If you do not want to read the tutorial again later, select the 'Do not show again' checkbox and press the start button.
- Page 10 3) Setting Up Your Profile Please complete your profile by entering your name, date of birth, height, weight and gender. Please enter the figures correctly so that you can get the correct data. 4) Bluetooth Connection Turn on the bluetooth and run the Urban S App. The list of devices available for connection is indicated.
- Page 11 Note Once the device is registered, it is automatically connected when you run the App. When you press the button of the main body three times, you can see the information about your specific device. Example) When ‘2D:Y7’ is indicated after pressing the band button three times, connect the product which has the indication of ‘2D:Y7’...
- Page 12 remove the connection between the band and the URBAN-S App. Setting Up ① On 'Section A (Unit)', you can select a unit of measurement data. ② On 'Section B (Notification)', you can set up notifications from the band to suit your needs.
- Page 13 The exercise time and heart rate are indicated all the time, and you cannot set them up while working out. Regarding the indication of information, please refer to 2) Exercise Mode of 4. Band Usage. Note When the firmware of the connected band is out of date, a window asking whether to install an update will be displayed.
- Page 14 Condition With the SLEEP/RECOVERY/CONDITION graph at the uppermost of the URBAN Mode, the physical condition of the current user can be identified. Note Indication of the user's condition index Sleep: This is the index to show how much sound sleep the user had by calculating the sleep time along with the tossing and turning overnight.
- Page 15 Heart Rate Measurement ① When you select 'Heart Rate Measurement' of the URBAN Mode, the band enters into the heart rate measurement mode. ② After the entry the measurement starts automatically, and the result of the measurement is indicated in the image at the center. ③...
- Page 16 Altitude Measurement ① When you select 'Altitude Measurement' tab of the URBAN Mode, the band enters into the altitude measurement mode. ② After the entry the measurement starts automatically, and the result of the measurement is indicated in the image at the center. ③...
- Page 17 Number of Steps ① When you select the blue-colored 'Goal Setting' of the 'Number of Steps' tab of the URBAN Mode, you can set up your goal for the number of steps. ② You can check your progress toward the target number of steps from the bar graph of the 'Number of Steps' tab of the URBAN Mode.
- Page 18 Heart Rate ① When you select the blue-colored 'Notification Setting' of the 'Heart Rate' tab of the URBAN Mode, you can set up a threshold heart rate to trigger a warning from the band through vibration. ② The heart rate measured at each specified cycle is updated into the URBAN Mode and is indicated on the detailed graph by the cycle of 60 minutes, and the heart rate data for hour/day/week/month is stored in a graph for your reference.
- Page 19 Note Average Range Total Range Age Group Total Range Average Range Age Group (bpm) (bpm) (bpm) (bpm) Under 1 year Under 1 year More than 80 More than 80 years old years old <Male> <Female> The maximum heart rate is set using ‘220 – your age’ by default. ...
- Page 20 Calories ① When you select the 'Calories' tab of the URBAN Mode, you can look at the record of calories in detail. ② The calories measured at each specified cycle is updated into the URBAN Mode and it is indicated on the detailed graph by the cycle of 30 minutes, and the data for hour/day/week/month is stored in a graph for your reference.
- Page 21 Sleep ① When you select the 'Sleep Time' tab of the URBAN Mode, you can look at the record of your sleep last night in detail. ② The sleep information is displayed by dividing between deep sleep and shallow sleep at the cycle of an hour, and the data for hour/day/week/month is stored in a graph for your reference.
- Page 22 Exercise Mode Goal Setting and Start of Exercise ① At the top of the URBAN Mode, you can select and proceed with one of the 4 modes of exercise - walking, running, climbing and cycling. The initial mode is set to walking. On the band you can only start with the walking mode.
- Page 23 Exercise Data Measurement ① When you start exercising, the data for the number of steps, pace, and distance, etc. is updated by the cycle of 1 minute. ② If the bluetooth connection with your smartphone is lost due to the surrounding environment or the distance from the band, the relevant data may not be updated properly.
- Page 24 Exercise History ① When you select the 'View Exercise History' among the items under the exercise mode, you can enter into the page where you can look at the past exercise records. If there is no past exercise record, this tab remains inactive.) ②...
-
Page 25: Storage And Maintenance
8. Storage and Maintenance Keep away from fire and avoid exposure to direct sunlight. Store the product in a place without dust or pollutant. Store the product in a place where there is no shock such as vibration. Please do not disassemble or modify the main body. It may cause fire or breakdown. Do not use or store the product at high or low temperatures.
