Summary of Contents for Insignia NS-VCS14SL7
-

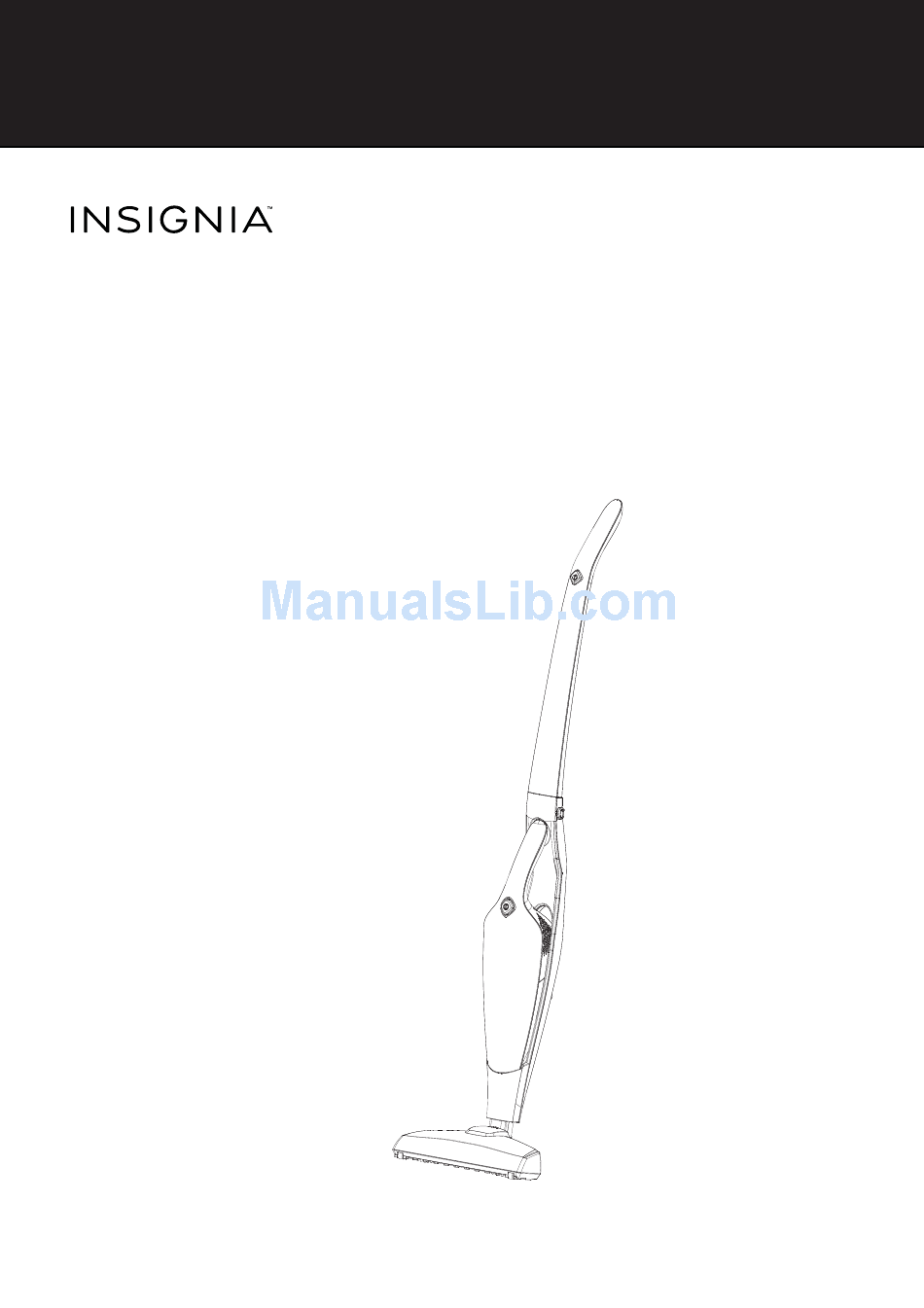

Page 1: Vacuum Cleaner
USER GUIDE 2-in-1 Cordless Stick Vacuum Cleaner NS-VCS14SL7/NS-VCS14WH7 Before using your new product, please read these instructions to prevent any damage. -
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY ........14 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-VCS14SL7/NS-VCS14WH7 represents the state of the art in cordless vacuum cleaner design and is designed for reliable and trouble-free performance. - Page 3 2-in-1 Cordless Stick Vacuum Cleaner WARNING: When using an electric vacuum cleaner, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THE VACUUM CLEANER. 1 Keep these instructions. 2 Follow all instructions. 3 Heed all warnings. 4 Do not use this appliance near water.
-
Page 4: Features
NS-VCS14SL7/NS-VCS14WH7 • If the vacuum cleaner is making a loud noise or producing an odor or smoke, switch off it, disconnect the plug, and immediately try to determine the cause. • Do not place heavy objects on the power cord to avoid it being crushed and causing an electric shock. -
Page 5: Main Components
2-in-1 Cordless Stick Vacuum Cleaner Main components Vacuum power button Charger Handheld release buttons Handheld power button Crevice tool Combination brush Filter Charging stand Cloth bag Dust cup www.insigniaproducts.com... -
Page 6: Assembling Your Vacuum Cleaner
NS-VCS14SL7/NS-VCS14WH7 Assembling your vacuum cleaner 1 Insert the handle into the main body of the vacuum cleaner, then tighten the screw (provided) to secure it. 2 Insert the handle/main body assembly into the suction head until it clicks into place. - Page 7 2-in-1 Cordless Stick Vacuum Cleaner 3 Connect the charger stand back to the charger stand seat, then insert the crevice tool and brush into the charger stand for storage. 4 Place the vacuum cleaner into the charger stand until you are ready to use it.
-
Page 8: Charging Your Vacuum Cleaner
NS-VCS14SL7/NS-VCS14WH7 Charging your vacuum cleaner 1 Make sure that your vacuum cleaner is turned off, then place the it into the charger stand, making sure the contacts on the stand touch the contacts on the vacuum. Charging contacts 2 Plug the charger into a wall outlet and into the charger stand. The LED blinks (every two seconds) to indicate that the vacuum cleaner is charging. -
Page 9: Using Your Vacuum Cleaner
2-in-1 Cordless Stick Vacuum Cleaner 3 When the LED stops blinking and turns on continuously, your vacuum cleaner is charged and ready to use. Notes • It is normal for the charger to become warm when charging your vacuum cleaner. •... -
Page 10: Using The Handheld Cleaner
NS-VCS14SL7/NS-VCS14WH7 Using the handheld cleaner 1 Press the release buttons on both sides of the handle to release the handheld cleaner. 2 Grasp the hand grip of the handheld cleaner and pull it away from the vacuum cleaner. www.insigniaproducts.com... - Page 11 2-in-1 Cordless Stick Vacuum Cleaner 3 Insert the crevice tool or brush into the suction head. 4 Press the ON/OFF button to turn on the handheld cleaner, then begin vacuuming. 5 When you are finished with the handheld cleaner, reattach it to the vacuum cleaner, making sure it snaps into place.
-
Page 12: Cleaning Your Vacuum Cleaner
NS-VCS14SL7/NS-VCS14WH7 Cleaning your vacuum cleaner 1 Remove the handheld cleaner as described in “Using the handheld cleaner” on page 10. 2 Push the button on the top of the handheld cleaner, then separate the motor from the suction head. 3 Remove the dirt cup, cloth bag, and filter from the suction head. -
Page 13: Troubleshooting
2-in-1 Cordless Stick Vacuum Cleaner Troubleshooting Caution Do not try to repair your vacuum cleaner yourself. Doing so invalidates the warranty. Problem Possible cause Possible solution Your vacuum cleaner The vacuum cleaner is not Make sure that the vacuum cleaner is charged. does not work charged. -
Page 14: One-Year Limited Warranty
Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. - Page 15 FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND...
- Page 16 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC ©2016 Best Buy. All rights reserved. V1 ENGLISH Made in China. 16-0042...
