Summary of Contents for HAWK-I Security 8630B

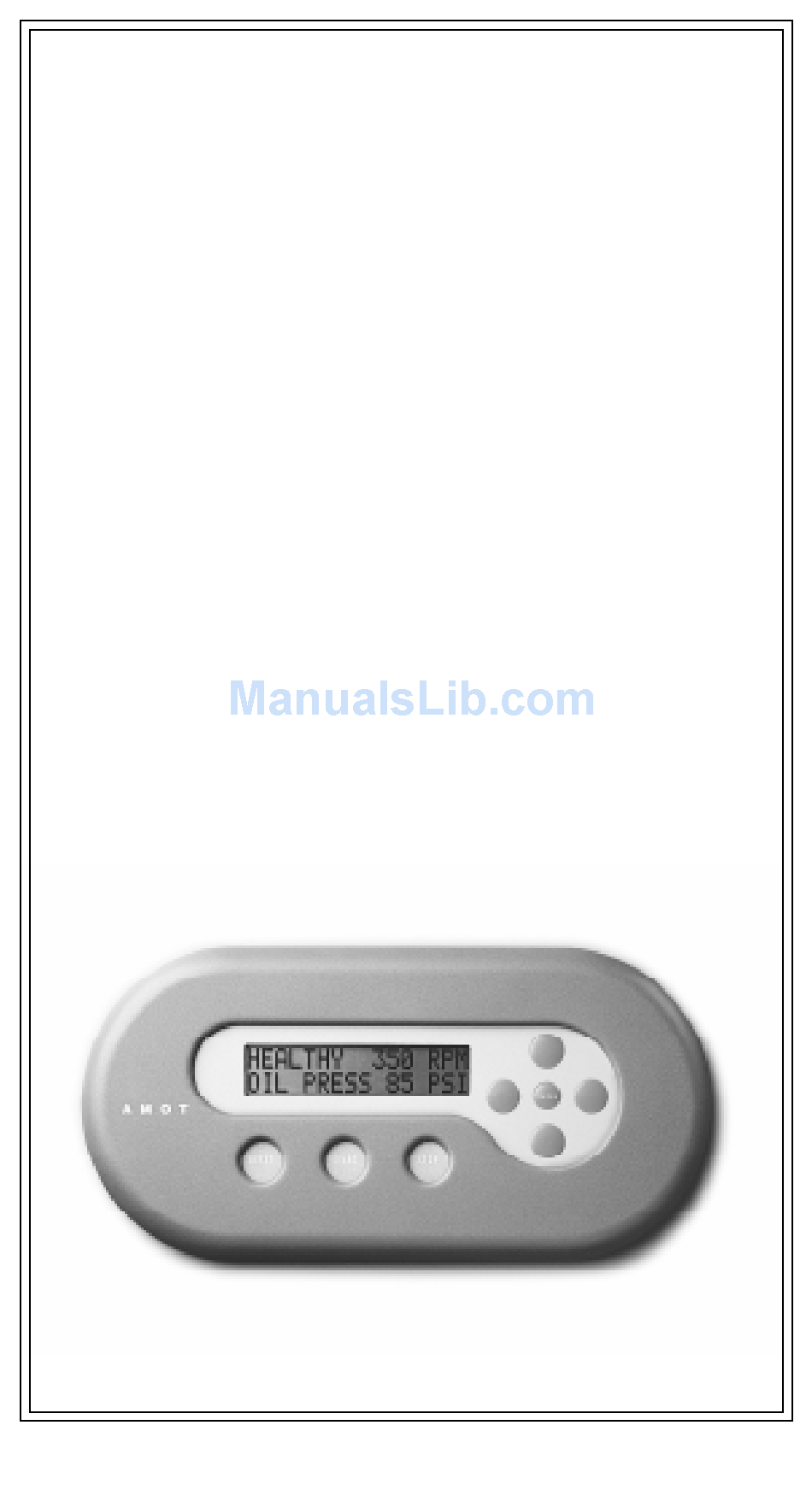

  • Page 1 ™ Model 8630B Hardware Manual ANUAL AMOT CONTROLS...
  • Page 2 © 1998 AMOT Controls Corp. All Rights Reserved Printed in USA Trademarks used in this text: Hawk-I and HawkWin are trademarks of AMOT Controls Corp. Windows and Windows 95 are registered trademarks of Microsoft Corporation. Modbus is a registered trademark of Modicon Ltd. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

  • Page 3: Table Of Contents

    Table of Contents 1. INTRODUCTION 1.1 Easy and Flexible Programming ......1-1 1.2 Other Key Features ..........1-1 1.3 Scaling and Signal Processing......... 1-2 1.4 RS–232C Communications Port ......1-2 2. SPECIFICATIONS 2.1 Inputs ..............2-1 2.2 Outputs ..............2-1 2.3 Communications ............
  • Page 4 3.9 The Tachometer Input ..........3-9 3.9.1 Connecting the Tachometer Input ....3-10 3.10 The Start and Stop Inputs ........3-10 3.10.1 Connecting the Start and Stop Inputs .... 3-10 3.11 The Power Supply ..........3-10 3.11.1 Connecting the Power Supply ......3-10 3.12 The RS232C Communications Port ....
  • Page 5 5. MAINTENANCE AND REPAIR 5.1 Maintenance ............5-1 5.1.1 Cleaning ............5-1 5.1.2 Battery Replacement .......... 5-1 5.1.3 Fuse replacement ..........5-2 5.2 Repair ..............5-3 5.2.1 Returning Equipment for Repairs ...... 5-3 6. CHANGING THE HAWK-I’S CONFIGURATION 6.1 The Hawk-I Keypad ..........6-1 6.2 Gaining Access to the Configuration Menus ..
  • Page 6 7. VIEW MODE 7.1 Descriptions of Individual Menu Boxes ....7-1 7.1.1 Controllers ............7-1 7.1.2 Analog User Input .......... 7-1 7.1.3 Unhealthy Channels ........7-1 7.1.4 Hours Run/Power Down ........ 7-1 7.1.5 Fault Logging ..........7-1 7.1.6 Digital Inputs ..........7-1 7.1.7 Analog Inputs ..........

  • Page 7: Introduction

    1. INTRODUCTION The Hawk-I system is a unique, highly advanced, programmable controller combining the power of a PLC with the easy to use functional- ity of an embedded control system. This system allows safe, localized scanning of digital inputs, temperatures, pressures, flows, electrical currents and voltages, and fluid levels in machinery and industrial processes.

  • Page 8: Scaling And Signal Processing

    1.3 Scaling and Signal Processing The Hawk-I contains scaling and linearizing circuits that provide individual channel readouts in software selectable units such as Centi- grade and Fahrenheit temperatures, psig, psia, psid, feet and inches, meters and centimeters, inches of water, etc. Individually set alarm and shutdown setpoints are available for each channel, as well as multiple user-defined setpoints.

  • Page 9: Specifications

    2. SPECIFICATIONS The Hawk-I is an expandable-platform digital controller with many available options that allow the user to select a powerful yet economical control system. 2.1 Inputs The sixteen discrete digital inputs used in the Hawk-I have volt-free contacts and are non-incendive; any kind of input switching device can be used. There is not enough energy in the circuit to ignite any gas mixture that may be present.

  • Page 10: Communications

    WARNING INCE THESE RELAY CIRCUITS TRANSMIT POWER FROM AUXILIARY EQUIPMENT THEY ARE CLASSED INCENDIVE LL ASSOCIATED WIRING MUST BE SEPARATED FROM NON INCENDIVE WIRING BY AN APPROPRIATE DISTANCE A further option allows for eight low power, solid state relays. These outputs are rated at 100 mA/36 V.

  • Page 11: Power Supply

    Electrical and RF interference immunity is designed into the Hawk-I, with RFI screening in the case. The unit has a high reliability due to conservative derating of electronic components. The internal printed circuit boards are conformally coated for extra environmental protection. The Hawk-I can operate in temperatures between -20º...
  • Page 12 ™ Hawk-I Hardware Specifications Hazardous Approvals: ETL: Class 1, Division 2 Groups A, B, C, & D ETL FM 3810 CETL FM 3611 CAN/CSA C22.2 No. 142 CAN/CSA C22.2 No. 2B B.A.S.E.E.F.A.: Ex N II C Power Requirements: Table A Voltage: 24 Vdc (18-36 Vdc) 12 Vdc (9-18 Vdc)
  • Page 13 ™ Hawk-I Hardware Specifications Speed Input (Non-Incendive): Type: Magnetic Pickup Number: Signal: Zero Crossing >2V pk-pk Analog Inputs (Optional): Table C Type: 4-20mA, 2-wire Transmitter, (Non Incendive) Number: 8 or 16 Accuracy: Better than 1% of FSD ™ Loop Power: 15 Vdc provided by the Hawk-I Thermocouple Inputs (Optional): Table C Type:...

  • Page 15: Installation

    3. INSTALLATION This chapter covers only the physical installation of the Hawk-I. The Hawk-I digital controller must be programmed with a set of user-selected functions before it can be put into service. The user first creates a customized program for the Hawk-I with AMOT’s HawkWin software, which is installed in an IBM-type host computer.
  • Page 17 SIZE DWG NO SAID DRAWING AND/OR DATA ARE NOT AMOT 68630B - SD TO BE USED OR REPRODUCED FOR SURFACE 8630B ANY PURPOSE WITHOUT THE CONSENT OF REDRAWN/ADDED SHEET 2 09/09/98 CONTROLS ROUGHNESS SHEET 1 OF 2 AMOT CONTROLS CORPORATION...
  • Page 18 SIZE D W G N O SAID DRAWING AND/OR DATA ARE NOT AMOT 68630B - SD TO BE USED OR REPRODUCED FOR 8630B SURFACE ANY PURPOSE WITHOUT THE CONSENT OF REDRAWN/ADDED SHEET 2 09/09/98 CONTROLS S H E ET 2 O F 2...

  • Page 19: Wiring Requirements

    3.4 Wiring Requirements The Hawk-I is Class I, Division 2 non-incendive equipment. The wiring to the fault and sensing switches does not require explosion proof conduit and housings. Such wiring cannot be the cause of a fire or an explosion. The wiring must be kept separate from that of other electrical systems.
  • Page 20 For example, on the back of the Hawk-I, the sixteen discrete digital switching inputs have four interconnected circuit return points labeled COM. The circuit returns for the digital inputs can be connected to any of these COM points. The COM terminals are input circuit grounds, and serve to complete the digital switching circuits.

  • Page 21: Digital Inputs

    3.6 Digital Inputs The Hawk-I is provided with 16 discrete digital inputs. The exact configuration of these inputs is determined by the individual user’s needs and the resulting HawkWin program. These digital switching inputs have volt-free contacts and the circuits are non-incendive. Any kind of volt-free, on-off sensor or sensing switch can be used with these digital inputs without the risk of igniting an explosive atmosphere under normal operating conditions.

  • Page 22: Using Relay Contacts As Sensor Switches

    Normally open sensors close to register a fault. A NO sensor can be disabled if a wire is disconnected or broken, and the operator will not know that the circuit has failed until that switch is tested for correct operation. An NO sensor should be used only in non-safety applications or when the risk of physical damage to wiring is low.

  • Page 23: The Thermocouple Inputs

    Each digital input needs to have its own ground return, so for every digital input, two wires must be provided. For example, Digital Input 1 would have one side connected to Terminal 1 of the Phoenix connector. The other side is connected to the COM terminal next to Terminal 4. Up to 16 digital inputs may be connected to the Hawk-I.

  • Page 24: The 4-20 Ma Sensor Inputs

    3.8 The 4-20 mA Sensor Inputs The Hawk-I can be provided with optional analog inputs of the 4-20 mA 2-wire type. This is a popular configuration for industrial sensors of many different kinds. The sensor input, which may be temperature, pressure, flow, etc., is converted by a sensor circuit into an output current that varies between 4 mA and 20 mA.

  • Page 25: The Tachometer Input

    3.9 The Tachometer Input The tachometer is a standard feature. It is connected to the Hawk-I through a (10)-pin Phoenix connector that also handles several other inputs. The tachometer signal is generated by a magnetic device that acts as a gear-tooth counter.

  • Page 26: Connecting The Power Supply

    3.11.1 Connecting the Power Supply The power supply wiring must meet all local regulations and should be at least 16 AWG or better. All power supply wiring must have insulation with a breakdown rating of at least 600 V, and be recognized, listed, or approved by a third party agency (UL, CSA, etc.).

  • Page 27: Connecting The Rs232C Port For Monitoring

    3.12.2 Connecting the RS232C Port for Monitoring The Hawk-I’s optional communications module uses the RS232C to transmit and receive information and commands from other monitoring and control equipment. This is a convenient way to use the Hawk-I’s powerful and economical monitoring and control capabilities as an integrated part of a larger system.

  • Page 28: Connecting The Configuration Link Input

    3.13.1 Connecting the Configuration Link Input This is done by shorting the two configuration link terminals. It may be useful to put a red tag on the jumper wire or toggle switch to remind the technician to open the link after programming is completed. The Hawk-I will not process its sequence instructions with the configuration link closed.

  • Page 29: The 4-20 Ma Analog Outputs

    3.17 The 4-20 mA Analog Outputs The Hawk-I can be equipped with 1 or 2 optional 4-20 mA analog outputs. These analog outputs can transmit calibrated sensor data from the Hawk-I to other equipment. The accuracy of these outputs is better than 0.75% of FSD.

  • Page 30: Test And Operation

    4. TEST AND OPERATION After the necessary wiring has been completed and the Hawk-I is connected to all of the required inputs and outputs, the following procedures should be followed to check out the Hawk-I’s installation. WARNING: ALL WIRING SHOULD BE INSTALLED IN ACCORDANCE WITH LOCAL ELECTRICAL CODES 4.1 Pre-Operation Test Procedure 1.

  • Page 31: Initial Check Of Hawk-I Operation

    WARNING THE FRONT PANEL KEYS OF THE HAWK-I LABELED “START” AND “STOP” WILL HAVE NO FUNCTION UNLESS THEY ARE SPECIFICALLY PROGRAMMED USING HAWKWIN 4.2 Initial Check of Hawk-I Operation The programmer who used HawkWin to setup the Hawk-I should provide a detailed operating procedure, possibly including a step-by-step checklist.

  • Page 32: Troubleshooting The Installation

    4.3 Troubleshooting the Installation The Hawk-I’s operation depends on the input sensors that are connected to the unit through wires and plug-in connectors. A wide variety of malfunctions can be caused by external wiring errors. 4.3.1 LED Status Indicator The Hawk-I is equipped with a green status LED (lamp) that is visible in the opening between the power connector and the connector for relay output #1.

  • Page 33: Common Wiring Problems

    If the channel in question still does not function properly, then the programming of the Hawk-I should be checked. But if the Hawk-I responds correctly when the SPST switch is used to control the digital input channel in question, then the problem must be either in the wiring to the digital sensor for that input channel, or in the sensor itself.

  • Page 34: Intermittent Wiring Problems

    In industrial situations, mechanical failure seems to occur more fre- quently than electronic failure. The moving parts of any sensor should be examined carefully for freedom of movement and broken or jammed linkages. Linear, back-and-forth movements such as those used in limit switches seem to develop more problems than rotary movements.

  • Page 35: Swapping Channels

    4.5.3 Swapping Channels Your Hawk-I unit was carefully checked before it was shipped. Even so, there is a possibility that one of the digital input channels may be defective. If wiring checks have not isolated the problem in a particular digital input channel, then the programmer can reprogram the function of that channel to another digital input, if an unused input is available.

  • Page 36: Ground Loops

    4.6.3 Ground Loops If a large current of any kind flows through a grounding wire, the finite resistance of the wire will cause a voltage difference between the ground point and the far end of the wire. Any equipment “grounded” by that wire will thus be raised above ground by the induced voltage, and the “ground”...

  • Page 37: Maintenance And Repair

    5. MAINTENANCE AND REPAIR 5.1 Maintenance The only maintenance required for the Hawk-I other than periodic battery replacement is keeping the faceplate clean. Use a cloth dampened with water to clean the faceplate. Do not use solvents; they could damage the plastic membrane.

  • Page 38: Fuse Replacement

    9. Note the location of the slots holding the three circuit boards. Counting down from the top of the unit, the boards are installed in slots 3, 7, and 13. To simplify reassembly, you may want to mark the housing at the front ends of these slots with a pencil or marker. 10.

  • Page 39: Repair

    RGA Number, since all RGA Numbers automatically expire after 30 calendar days. Consult your AMOT representative for further details concerning repairs. Spare Parts List - Model 8630B ITEM ..........AMOT Part Number Battery, 3V, 48mAh, BR1632 ..........60364 Fuse, 250V, 500mA, 5 X 20 mm, Fast-Acting ....... 51019L050 Fuse, 250V, 800mA, 5 X 20 mm, Fast Acting .......

  • Page 40: Changing The Hawk-I's Configuration

    6. CHANGING THE HAWK-I’s CONFIGURATION The Hawk-I is programmed with AMOT’s HawkWin software, which enables the user to set up the sequence and analog ladder logic diagrams that determine the basic functionality of the unit. However, after the program is downloaded into the Hawk-I, everyday operation of the unit is controlled by the built-in keypad.

  • Page 41: Moving Up And Down Between Menus

    sequence. This is a safety feature intended to prevent damage to equipment controlled by the Hawk-I. If the lockout coil is not used, be sure to stop any machinery controlled by the Hawk-I. The Hawk-I will not respond to alarms or shutdowns while in Configure Mode.

  • Page 42: Exiting Configuration Mode

    select only words that can be edited. It will skip past formatting and label- type words such as CLASS and NORMALLY that cannot be changed. To enter the desired changes, use the UP and DOWN buttons to step the display through all the options that are available. When the desired information is displayed, press ENTER to change the Hawk-I’s configu- ration.

  • Page 43: Descriptions Of Individual Menu Boxes

    6.8 Descriptions of Individual Menu Boxes The menu boxes in the Hawk-I’s configuration matrix allow the user to modify characteristics of the objects that are used in the Hawk-I’s ladder logic without the requirement for a computer. A brief description of the Configure Menu options follow.

  • Page 44: Analog Outputs

    6.8.8 Analog Outputs This menu allows the user to view and change the descriptive text associated with each of the analog outputs. 6.8.9 Timers This menu allows the user to view and change the value and text for each of the timers. 6.8.10 Tachometer Changes can be made to the Pulses Per Revolution (PPR) of the tachometer, the descriptive text, overspeed setpoint, underspeed setpoint, Crank Termina-...

  • Page 45: Test Mode Timer

    6.8.17 Test Mode Timer This menu selects the duration of the test mode timer. The test mode timer is used in conjunction with View Mode when testing sensors on an active machine. Alarm and shutdown conditions will not trip output for the duration of the timer.
  • Page 46 6.8.18.8 Load Active Mem Allows the user to load settings from ROM. 6.8.18.9 Save Active Mem Allows the user to save changes to ROM. 6.8.18.10 Calibrate Inputs Allows the user to calibrate analog inputs. To calibrate an analog input(s): • Select the input or group of inputs to be calibrated (T/C 1-8, T/C 9-16, individual T/C’s, or indi- vidual loops) •...

  • Page 47: Lock/Unlock

    6.8.18.14 Clr Calibration Allows the user to reset all calibration settings. 6.8.18.15 Download Code Allows the user to download new firmware via the serial port. 6.8.19 Lock/Unlock This is the security section of the Hawk-I. If the entered password does not match the stored password, the Hawk-I will not allow configuration changes from the keypad.
  • Page 48 —Enter– CONFIGURE MENU PID: 1 ACTION: DIRECT INTGRL: 9999. INTGRL: 9999. FILTER: 1.000 FILTER: 1.000 CONFIGURATION MODE PID: 1 ACTION: DIRECT CONTROLLERS PID Controller GAIN: 0.050 DERIV: 0.000 DERIV: 0.000 DEADBAND: 0.000 DEADBAND: 0.000 –Reset– PID Controller GAIN: 0.050 Full FLOWCHART fig. 6 (See Note 1) (REVERSE) (See Note 2)
  • Page 49 CONFIGURATION MODE —Enter– DIRECT INTGRL: 9999. INTGRL: 9999. FILTER: 1.000 FILTER: 1.000 CONFIGURE MENU PID: 1 PID: 1 ACTION: ACTION: DIRECT CONTROLLERS PID Controller GAIN: 0.050 DERIV: 0.000 DERIV: 0.000 DEADBAND: 0.000 DEADBAND: 0.000 –Reset– PID Controller GAIN: 0.050 FLOWCHART 1 OF 2 (See Note 2) (See Note 1) (REVERSE)
  • Page 50 CONFIGURATION MODE –Enter— ADDR: 1 CONFIGURE MENU ADDR: 1 ADDR+1: NO ADDR+1: NO COMMUNICATIONS BAUD: 19200 BAUD: 19200 RTS: TX LO –Reset– RTS: TX LO FLOWCHART 2 OF 2 (2-255) (300, 600 1200, (YES) (TX HIGH) 2400, 4800, 9600) –Enter— TEST MODE TIMER CONFIGURE MENU SECONDS:...

  • Page 51: Unhealthy Channels

    7. Accessing the Hawk-I’s View Mode After the system has been configured and is running a sequence, it may be necessary to view the status of inputs, outputs, or other settings. In addition, the user may want to change certain parameters without having to stop the sequence and put the Hawk-I in Configure mode.
  • Page 52 7.1.7 Analog Inputs This menu shows the class, type, units, alarm points, shutdown points, and descriptive text for all analog inputs. The user may only modify the low and high alarm setpoints. 7.1.8 Digital Outputs This menu shows the descriptive text for all digital outputs. No user modification is possible from this menu 7.1.9 Analog Outputs This menu shows the descriptive text and range for all analog outputs.

  • Page 53: Run Diagnostics

    7.1.17 Run Diagnostics The Run Diagnostics menu allows the user to view the status of indi- vidual channels (digital and analog inputs/outputs), adjust the system clock, view communications settings, and view system parameters (firmware, sequence, accesses, etc.) while the Hawk-I is in Run mode. The user may only modify the system clock settings while in this mode.

  • Page 54: Lock/Unlock

    7.1.18 Lock/Unlock This menu allows the user to password protect the unit to prevent unauthorized access to system parameters. If the system is locked, parameters may only be viewed. 7.1.19 Test Mode This menu allows the user to test digital, analog, and tachometer inputs while the system is in Run mode.
  • Page 55 —Enter– VIEW MODE VIEW MENU PID: 1 ACTION: DIRECT INTGRL: 9999. INTGRL: 9999. FILTER: 1.000 FILTER: 1.000 CONTROLLERS PID Controller GAIN: 0.050 DERIV: 0.000 DERIV: 0.000 DEADBAND: 0.000 DEADBAND: 0.000 –Reset– Full FLOWCHART fig.7 (See Note 2) (See Note 2) (See Note 2) (See Note 2) (See Note 2)
  • Page 56 VIEW MODE —Enter– VIEW MENU PID: 1 ACTION: DIRECT INTGRL: 9999. INTGRL: 9999. FILTER: 1.000 FILTER: 1.000 CONTROLLERS PID Controller GAIN: 0.050 DERIV: 0.000 DERIV: 0.000 DEADBAND: 0.000 DEADBAND: 0.000 –Reset– FLOWCHART 1 OF 2 (See Note 2) (See Note 2) (See Note 2) (See Note 2) (See Note 2)
  • Page 57 VIEW MODE —Enter– VIEW MENU Setpoint: 0.000 0.000 ACTION: RISING USER SETPOINTS Setpoint Constant HYS: 0.000 HYS: 0.000 –Reset– FLOWCHART 2 OF 2 (See Note 2) (See Note 2) (See Note 2) —Enter– VIEW MENU RUN DIAGNOSTICS DIGITAL IN STAT Note 3: Enter RUN DIAGNOSTICS...
