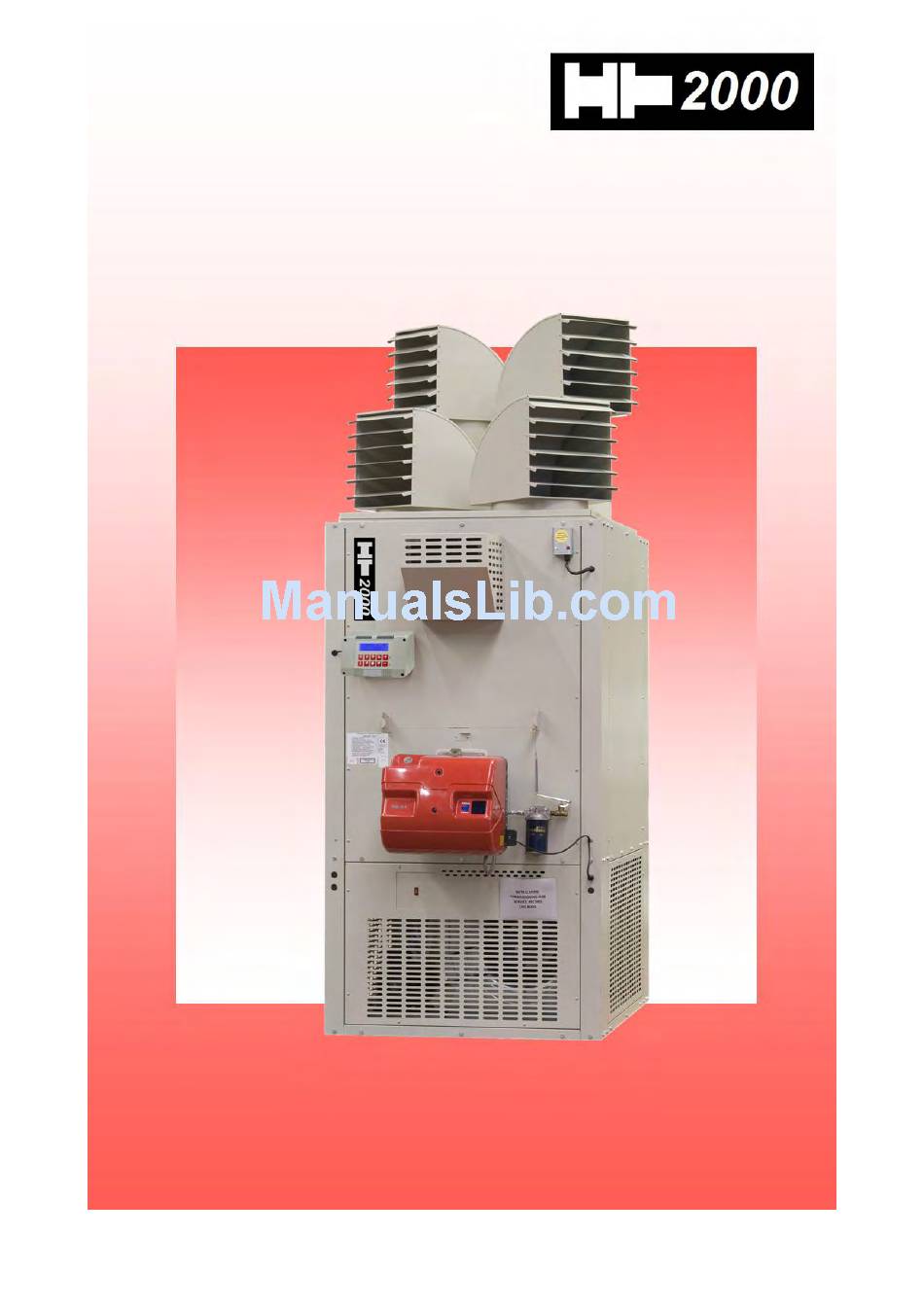

Harry Taylor HT2000 Installation & Servicing Manual

Oil fired cabinet heater
Hide thumbs Also See for HT2000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
I
& S
M
NSTALLATION
ERVICING
ANUAL FOR
H
T
O
F
C
H
ARRY
AYLOR
IL
IRED
ABINET
EATER
WARNINGS
Harry Taylor equipment must be installed and maintained in accordance with the current
OFTEC Regulations for oil fired products. Due account should also be taken of any
obligations arising from the Health and Safety at Works Act 1974 or relevant codes of
practice. In addition the installation must be carried out in accordance with the current IEE
wiring regulations (BS 7671), BS 6896: Industrial & Commercial) and any other relevant
British Standards and Codes of Practice by a qualified installer. All external wiring MUST
comply with the current IEE wiring regulations.
Part No. 701143
