Summary of Contents for Sintrol Snifter mA

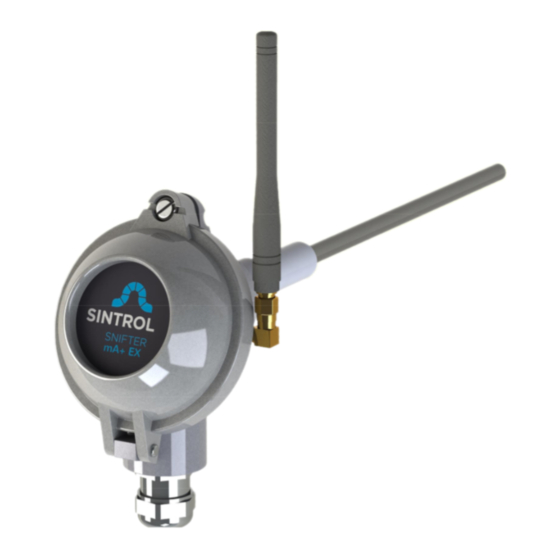

- Page 1 Sintrol Snifter mA+ EX RF Manual Version 1.2.3...
-
Page 2: Table Of Contents
10.1 No output signal ................. 15 10.2 No response after auto-setup ............. 15 10.3 Boot check ..................16 11 Appendix A: Sintrol PC software ............. 17 11.1 DustTool ..................... 17 Preview ....................17 11.2 DustLog ....................21 Snifter mA+ EX RF... -
Page 3: Introduction
INTRODUCTION This manual describes how to install and use SINTROL’s Snifter mA+ EX RF dust monitor. Sintrol shall not be liable for any loss or damage whatsoever arising from use of any information or details therein, or omission or error in this manual, or any misuse of the product. -
Page 4: Product Overview
How does it work? The Snifter mA+ EX RF uses Sintrol’s proven and reliable inductive electrification technology where the interaction of particles with the sensor rod causes a small electrical charge to pass between the particulate and sensor. - Page 5 4. Although the sensor is not affected by vibration, very high vibration levels should be avoided. 5. The units must not be installed in direct sunlight or in areas where the ambient temperature is above +40 °C. Snifter mA+ EX RF User Manual...
-
Page 6: Installing The Sensor
The only allowed interaction with sensor is dust particles. Installing the sensor Once the location of the unit has been selected, the Snifter mA+ EX RF with NPT 1/2” male thread can be installed to process with 1/2” female thread. Make sure the installation is in the right position, insert the sensor inside the adapter and rotate the unit until the connection is tight. -
Page 7: Wiring
WIRING The Snifter mA+ EX RF comes with two meter power and signal cable. There are 12 wires in the same cable, two wires for VDC power source, two for alarm signals, and one for automatic setup signal. Remaining wires are left for digital communication with Sintrol Dustlog software. -
Page 8: Technical Specification
TECHNICAL SPECIFICATION Product name Snifter mA+ EX RF Measurement Objects Solid particles in a gas flow Particle Size 0.3 µm or larger Measurement Range From 0.1 mg/m³ Measurement Principle Inductive Electrification Protection Category IP65 Sensor Length (total/measuring) 250 mm / 185 mm... - Page 9 Max 95 % RH (non-condensing) Materials and Weight Probe (wetted part) Stainless steel (AISI 316L) Process Connection (wetted part) Stainless steel (AISI 316L) Enclosure Aluminum Probe Insulation (wetted part) PEEK Weight 0.6 kg Table 2 Technical specification Snifter mA+ EX RF User Manual...
-
Page 10: Dimensions
DIMENSIONS Figure 4 Structure and dimensions This instrument conforms to the following standards Product standard Reference standard electrical equipment for IEC 61326-1:2005 (First Edition) measurement, control and laboratory use – EMC requirements Snifter mA+ EX RF User Manual... -
Page 11: Operation
OPERATION The Snifter mA+ EX RF Dust Monitor measures the dust level in a gas flow by using inductive electrification technology which is based on AC measurement of moving particles which carry a charge. There are two alarm signal outputs to indicate two different alarm conditions. In addition to this, the front cover illumination will blink to inform about the current alarm condition. - Page 12 Figure 5 Description of Snifter mA+ EX RF cover illumination sequences. Snifter mA+ EX RF User Manual...
-
Page 13: Adjust Parameters
Alarm delay time It is possible to set delay time for Snifter mA+ EX RF alarm signals to avoid false alarms caused by dust concentration peaks which appear naturally in process. On factory settings, alarm delay is set to 30 seconds but it can be adjusted freely between 0 and 60 000 seconds. -
Page 14: Auto-Setup
(wire) for a period of 1 second. The automatic setup will initiate and the front panel light will start to blink slowly (sequence D in Figure 5 Description of Snifter mA+ EX RF cover illumination sequences.). Then Release the automatic setup signal, by disconnecting the green wire from V+. -
Page 15: Maintenance
EX RF is ready for use. MAINTENANCE Snifter mA+ EX RF dust monitor needs very little or practically no maintenance. We recommend checking the status of the sensor after the first 2 months of operation. If no notable build-up of contamination can be observed, the recommended maintenance interval is 2 years. -
Page 16: Boot Check
ON, boot check is initiated. Test takes some seconds and it is indicated with a sharply blinking front cover illumination sequence E (1 Hz rate). If test fails, sequence F is initiated (10 Hz rate). Snifter mA+ EX RF User Manual... -
Page 17: Appendix A: Sintrol Pc Software
Appendix A: Sintrol PC software The instrument can be controlled with Sintrol PC software provided they have appropriate bus interface available. 11.1 DustTool DustTool is complementary software to help you to get easily control of the parameters and features of your Sintrol products. - Page 18 3. By pressing “Read”, the parameters which are currently saved in the instrument will be loaded from the device. Snifter mA+ EX RF User Manual...
- Page 19 Monitor view is intended to help user in decision when setting up parameters manually. In order to further save measurement data, create additional signals and alarms and/or generate reports and history, commercial DustLog software is required. Figure 7 DustTool monitor view Snifter mA+ EX RF User Manual...
- Page 20 Snifter mA+ EX RF User Manual...
-
Page 21: Dustlog
DustLog DustLog software starting from version 8, is a commercial product intended to meet real time data acquisition, storage and reporting needs for all Sintrol products and a variety of applications. DustLog software covers all the easy to use features available in the complementary DustTool software. - Page 22 NOTES Snifter mA+ EX RF User Manual...
- Page 23 SINTROL Oy Ruosilantie 15 00390 Helsinki Finland Tel +358 9 5617 360 Fax +358 9 5617 3680 www.sintrolproducts.com Snifter mA+ EX RF User Manual...
