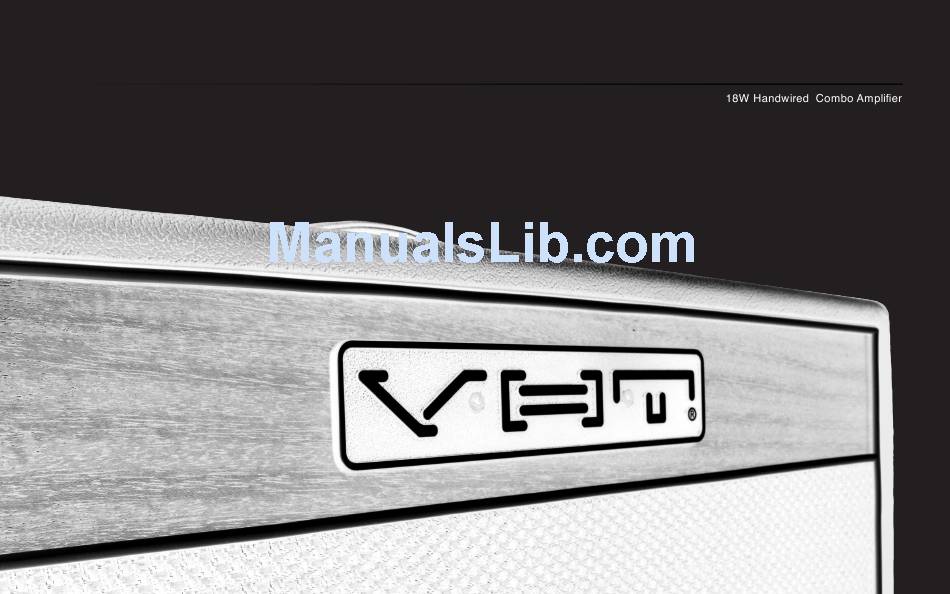

- Page 1 THE STANDARD 18 User Manual...
- Page 3 Table of Contents Table of Contents..........3 Product Safety Information......4 Panel Functions..........5 ......... 8...
-
Page 4: Product Safety Information
Product Safety Information WARNING! Please read ALL Safety & Operating Instruction BEFORE using this product. CAUTION: To avoid the risk of fire or electric shock, please do not expose this product to rain or moisture. Dangerous high voltages are present inside the enclosure. -
Page 5: Panel Functions
Panel Functions (Please refer to Fig. 1 and Fig. 2 for details.) A. THE TOP PANEL CH 2 CH 1 STANDBY MASTER BASS TREBLE GAIN TONE GAIN Fig. 1: The Top Panel 1. Indicator Light (Red): LED will be lit when the amplifier power is on. 2. - Page 6 CH 2 (Channel 2): 5. Bass: Adjusts the low frequency level. Turn this knob clockwise to boost the bass sound, counter clockwise to cut the bass sound accordingly. Center position (straight up) provides no cut or boost. 6. Mid: Adjusts the middle frequency level. Turn this knob clockwise to boost the middle sound, counter clockwise to cut the middle sound accordingly.
-
Page 7: The Rear Panel
B. THE REAR PANEL Fig. 2: The Rear Panel 14. Internal Speaker Jack 8 : Plug-in connection for the 8 internal speaker. A speaker must always be connected at this jack when the amplifier is ON. A speaker impedance load of 8 should be used to avoid distortion or damage to the amplifier. ** 15. -
Page 8: Technical Specifications
Technical Specifications Name/Model VHT 18W Handwired Combo Amplifier / THE STANDARD 18 Total Output Power 18W RMS Amp Type Tube Amp (Handwired) Pre-Amp Section (3) 12AX7 Tubes Power-Amp Section (2) EL84 Tubes Rectifier (1) 5Y3GT Tube Speaker 1 x 12” Celestion G12H30 (30W) 8 ohms... - Page 9 Notes...
- Page 10 Notes...
- Page 11 Notes...
-
Page 12: Limited Warranty Information
Limited Warranty Information This amplifier is warranted, to the original Purchaser, to be free from defects in material and workmanship for a period of one (1) year, excluding the Tubes, which are warranted for ninety (90) days, from the original date of purchase. The manufacturer shall, at its option, either repair or replace the defective product if the product is returned to the original place of purchase.
