User Guide

GPS Tracking Device

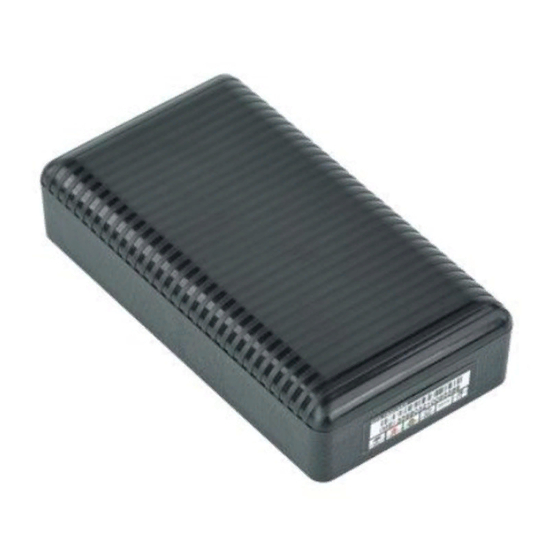

Product Overview
Thank you for purchasing portable GPS tracker.It's for monitoring and protecting people
and property with built-in U-blox GPS and GSM/GPRS technology.It also with strong
magnet in the rear and 8000mA backup battery.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT003 and is the answer not in the manual?

Questions and answers

Summary of Contents for HLXTSZ GT003

  • Page 1: User Guide

    User Guide GPS Tracking Device Product Overview Thank you for purchasing portable GPS tracker.It’s for monitoring and protecting people and property with built-in U-blox GPS and GSM/GPRS technology.It also with strong magnet in the rear and 8000mA backup battery.

  • Page 2: Hardware Specification

    Accessories: 1X Device 1X USB charge cable 1X User Guide 1X Guarantee Card Hardware Specification: Content Specs. Mainframe Dimension 104*56.5*24mm 195g Net weight GSM frequencies 850/900/1800/1900Mhz GPRS Class12,TCP/IP GPS chip UBLOX G7020 Voltage range 3.6-4.2VDC Standby Current ≤2mAh GPS locating time cold start=38s warm start=32s hot start=2s GPS Accuracy ≤...

  • Page 3: Device Charging

    Device Charging For the first time use,please fully charge the battery for around 2-3 hours with the USB charger. Turn on the device by Inserting Card Please insert the SIM card in the right direction. You will see the indicator light sparkles,then turn off.That means the SIM card inserted successfully.

  • Page 4: Location Request

    ※ please set it up when the device can not connect with the web platform or the APP. ※After sending the command,it will reply:APN OK! 3.Set up the SMS Language Command :LANG,0# (English) LANG,1# (Chinese) ※The default language is Chinese. ※This is to set up the language of SMS reply content.

  • Page 5: Reboot Device

    7.Listen-in (Voice Monitoring) Command :JT# ※after sending the command,it will reply:JT OK! ※The tracker will call the center number automatically after the SMS reply,then please answer the call to hear what is happening around the tracker. 8.Checking Settings Command :ST# ※The device will reply: IMEI：888xxxxxxxxx888 MC：1(Alarm mode )
  • Page 6 mode:The platform only upload LBS location and the location precise ※Power-saving varies according to the cities where it is located . It is purely power-saving. mode:The platform will upload GPS location with high precision in real time. ※Safe But it is very power-consuming. 12.Set up data upload time interval Command :WKMD,0#20#...
  • Page 7 The remaining battery (FYR) More functions are available after log-in Click Live to get the device’s location Click to get the device’s location Click to get the cellular phone’s location...

  • Page 8: Geo-Fence

    Note:Only when there is a certain distance between the phone and the GPS device,the location will show up respectively. Geo Fence An electronic fence can be set up after log-in APP or PC. When the device comes out or in the fence after the set-up is done, it will automatically pop-up warning window.
