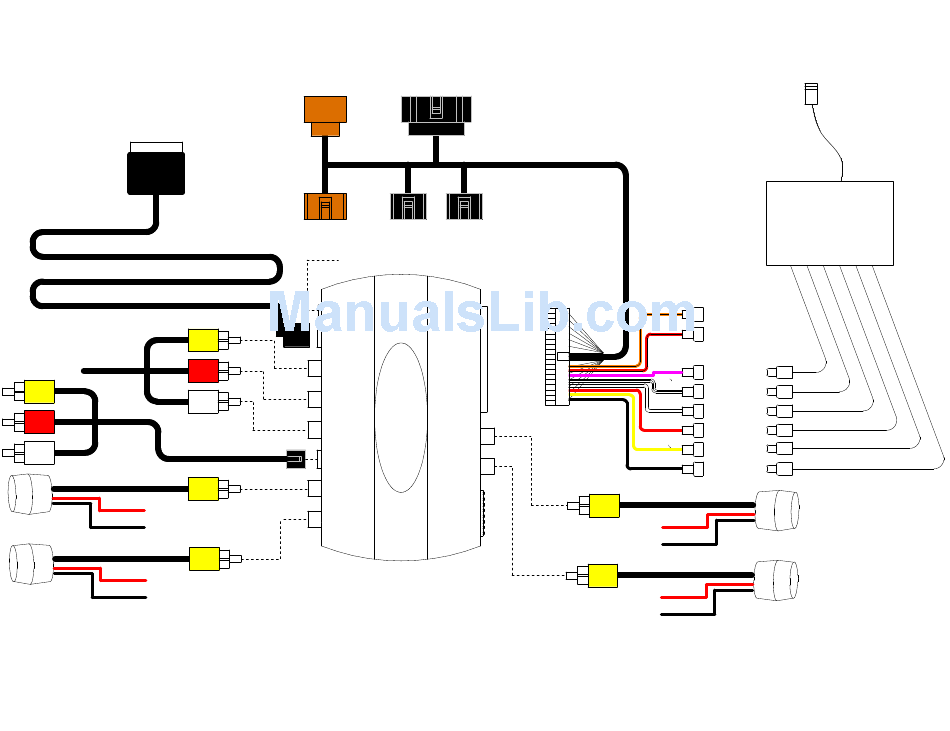

IPOD/IPHONE/ITOUCH/IPAD
CONNECTION
AUX A/V INPUT
A/V OUTPUT
LEFT CAM POWER
TO LOCKPICK ORANGE WIRE
TO LOCKPICK BLACK GROUND WIRE
RIGHT CAM POWER
TO LOCKPICK ORANGE WIRE
TO LOCKPICK BLACK GROUND WIRE
USB INPUT
PROGRAMMING
DIP SWITCHES
(OPTIONAL)
GMX550 LOCKPICK
INSTALLATION OPTIONS
COPYRIGHT 2010 COASTAL ELECTRONIC TECHNOLOGIES, INC.
UNPLUG ORIGINAL RADIO
CONNECTORS THEN PLUG IN HERE
PLUG AND PLAY
NO OTHER CONNECTIONS ARE
NECESSARY
REAR CAM POWER
TO LOCKPICK RED W/BLACK WIRE
TO LOCKPICK BLACK GROUND WIRE
FRONT CAM POWER
TO LOCKPICK ORANGE W/BLACK WIRE
TO LOCKPICK BLACK GROUND WIRE
USE HANDSFREE KIT
MICROPHONE
ADD YOUR BLUETOOTH
HANDSFREE KIT
(CONNECTIONS BUILT
INTO GMX550 HARNESS)
ADDITIONAL CAM POWER
REVERSE CAM POWER
BLUETOOTH MUTE
AUDIO - IN
AUDIO + IN
12V ACC OUTPUT
12V CONSTANT
GROUND
Advertisement
Summary of Contents for Coastal Electronic GMX550 LOCKPICK
- Page 1 TO LOCKPICK BLACK GROUND WIRE PROGRAMMING RIGHT CAM POWER DIP SWITCHES TO LOCKPICK ORANGE WIRE (OPTIONAL) FRONT CAM POWER TO LOCKPICK BLACK GROUND WIRE TO LOCKPICK ORANGE W/BLACK WIRE GMX550 LOCKPICK TO LOCKPICK BLACK GROUND WIRE INSTALLATION OPTIONS COPYRIGHT 2010 COASTAL ELECTRONIC TECHNOLOGIES, INC.
-
Page 2: Installation
Thank you for your purchase of the Coastal Electronic Technologies, Inc. GMX550 LOCKPICK. The GMX550 Lockpick is the replacement for the GMX322 and is the latest in a long history of Lockpicks designed to enable full and additional functionality to your factory GM navigation system. The GMX550 Lockpick incorporates many important standard features including: •... - Page 3 2. The GMX550 Lockpick is a simple Plug-N-Play interface however additional wiring is labeled and available on your Lockpick harness. These connections may be used for your aftermarket accessory power needs.
-
Page 4: Operation
Connect the ground(s) for your camera power to the Black ground connection on the GMX550 harness. OPERATION To activate the GMX550 LOCKPICK, press the MUTE (VOICE) button on your steering wheel (4) four times within 4 seconds as demonstrated below. Text with menus and options will appear on your instrument panel. - Page 5 You may turn it off immediately by pressing the MUTE button 4x. When activated, the Lockpick text will always return to last function allowing quick operation for frequently used options. A complete list of text and options for the GMX550 are listed below: GMX550 LOCKPICK Initial display on instrument panel. Press steering SCROLL FOR MENUS wheel ▲ and ▼to view primary menus. ...
-
Page 6: Additional Options
HROUT iPod Select to send iPod Audio/Video to an external > TO SELECT screen or headrests HROUT AUX Select to send AUX Audio/Video to an external > TO SELECT screen or headrests HROUT REAR CAM Select to send Rear Camera Video to an external > TO SELECT screen or headrests HROUT FRONT CAM Select to send Front Camera Video to an external > TO SELECT screen or headrests HROUT LEFT CAM Select to send Left Camera Video to an external > TO SELECT screen or headrests HROUT RIGHT CAM Select to send Right Camera Video to an external ... - Page 7 Exits OVERRIDE CONFIG and returns user to the top menu. The GMX550 Lockpick text is viewed on the instrument panel and is compatible with ONSTAR and warning messages. If a door is opened or a vehicle fault occurs while the Lockpick text is on the screen, the Lockpick allows the OEM messages to have priority.
- Page 8 USB UPDATING (make sure module is also connected to Lockpick harness and vehicle) Your Lockpick interface includes the ability to be updated via a USB connection to a PC. Located on your Lockpick module is a common mini USB jack which can be connected to the USB jack on a laptop computer using a standard USB mini to USB connection cable .
- Page 9 GMX550 iPod/iPad/iPhone/iTouch Operation The GMX550 includes functions to allow Audio and Video from Apple devices to play through your factory sound system as well as for it to be viewed on your factory radio screen. • The GMX550 will automatically enable the video output function if it is available on your connected device.
- Page 10 If you wish to exit the iPod OUT graphical interface and perform audio searches directly from your iPod device, or if you wish to access for viewing the video titles contained on your device, press the SEEK > button on your radio face. ...
