Daihen MWXC-2001 Instruction Manual page 32

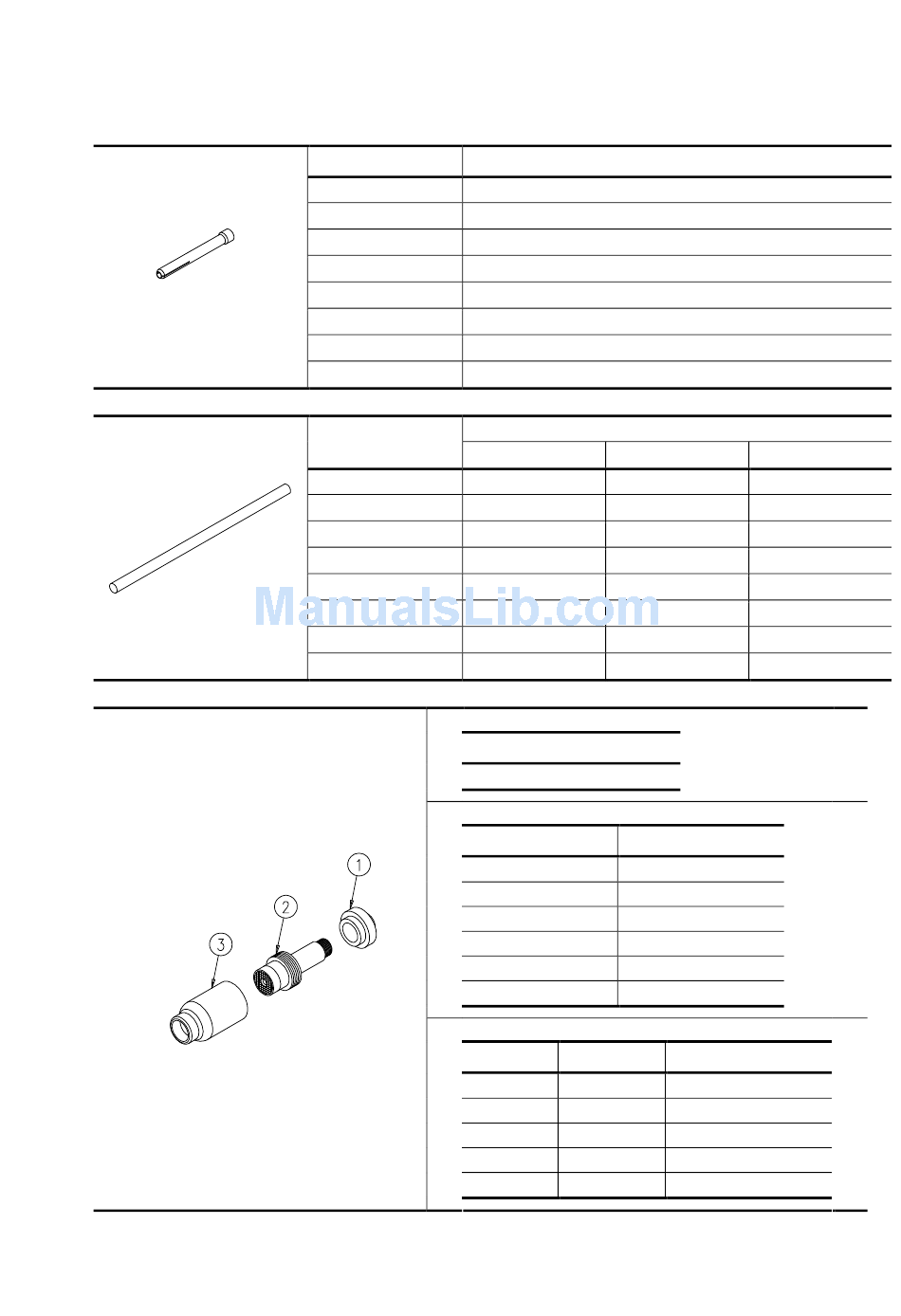

13.2 Optional Parts List
● Collet
●Tungsten electrode
●For gas lens specification
Table 13.2.1 Front collet body assembly Parts List
Electrode diameter
0.5
1.0
1.6
2.0
2.4
3.0
3.2
4.0
Electrode diameter
Ceriated tungsten
0.5
1.0
1.6
2.0
2.4
3.0
3.2
4.0
① Insulator
② Collet body
Electrode diameter
③ Nozzle
Nozzle No.
－24－
Part No.
H21B13
H21B14
H21B15
H21B64
H21B16
H21B65
H21B17
H21B63
Part No.
Thoriated tungsten
- 0831-005
- 0831-010
0870-016 0831-016
- 0831-020
0870-024 0831-024
- 0831-030
0870-032 0831-032
- 0831-040
Part No.
H21B60
Part No.
0.5 H21B50
1.0 H21B51
1.6 H21B52
2.4 H21B53
3.2 H21B54
4.0 H21B61
Part No.
4 H21B40 Inside diameter : 6.5mm
5 H21B41 Inside diameter : 8.0mm
6 H21B42 Inside diameter : 9.5mm
7 H21B43 Inside diameter : 11.0mm
8 H21B44 Inside diameter : 12.7mm
Pure tungsten
0830-005
0830-010
0830-016
0830-020
0830-024
0830-030
0830-032
0830-040
Remark
