Aluratek WMQ137AM Quick Installation Manual

Wireless router - 802.11b/g/n
Hide thumbs Also See for WMQ137AM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Quick Installation Guide

1. Get Start Installation

Connect the 3G Wireless Router to Your Network
DO NOT
connect 3G Mobile Router to power before performing the
Note:
installation steps below.
Step1.

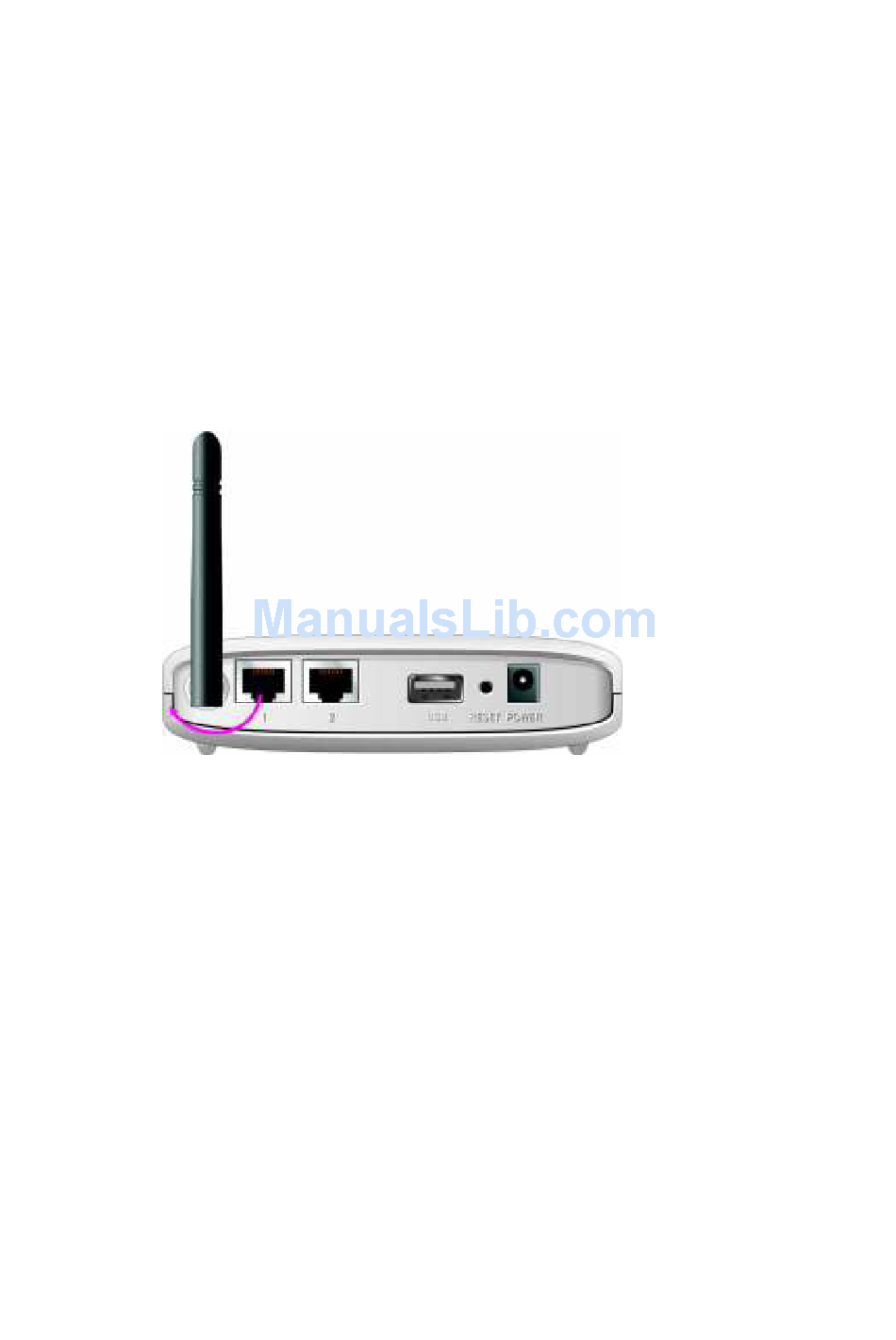

Attach the antenna.
1.1. Remove the antenna from its plastic wrapper.
1.2. Screw the antenna in a clockwise direction to the back panel of the unit.
1.3. Once secured, position the antenna upward at its connecting joint. This will
ensure optimal reception.
Step2.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMQ137AM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aluratek WMQ137AM

Summary of Contents for Aluratek WMQ137AM

  • Page 1: Quick Installation Guide

    Quick Installation Guide 1. Get Start Installation Connect the 3G Wireless Router to Your Network DO NOT connect 3G Mobile Router to power before performing the Note: installation steps below. Step1. Attach the antenna. 1.1. Remove the antenna from its plastic wrapper. 1.2.
  • Page 2 Insert your either Type II 3G card (either 16-bit or 32-bit ) or plug USB 3G Modem to router The 3G Mobile Router is designed to work with either UMTS or EV-DO Note: and even HSUPA 3G modem. Please refer to your service provider for detailed feature information.
  • Page 3 Step 4. 4.1. Connect the power adapter to the receptor on the back panel of your 3G Mobile Router. 4.2. Then plug the other end of the power adapter into a wall outlet or power strip. a. The Power LED will turn ON to indicate power has been applied. b.
  • Page 4 2. Using the Easy Setup Utility 1. Install the Easy Setup Utility from CD. After the installation is finished, you can execute it by the shortcut. 2. Configure the settings by the following steps. 2.1 Select Language then click “Next” for continues. 2.2.
  • Page 5 2.3 Prepare Setup. Check the items and click “ Next” for continue. 2.4 Wireless Setting. Click “ Next” for continue.
  • Page 6 2.5 Wireless Setting. Click “ Next” for continue. 2.6 Auto Detect WAN Service. Click “ Next” for continue.
  • Page 7 In this case, DHCP WAN Type is detected by the Router. Click “ Next” for continue. 2.7 Summary of the settings. Click “ Next” for continue.
  • Page 8 2.8 Test WAN Networking service. Click “ Next” for continue. 2.9 Setup Completed. You can open the default web browser to configure advanced settings of the router. Click “ Finish” to complete the installation.
