Decimator MD-QUAD Operating Manual

Decimator MD-QUAD Operating Manual

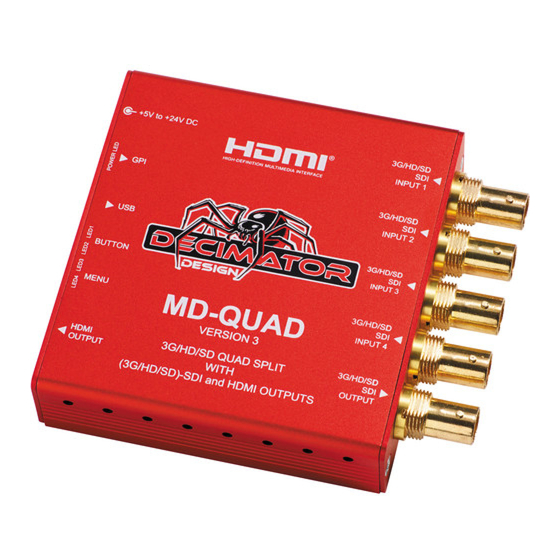

1 to 4 channel (3g/hd/sd)-sdi multi-viewer / quad-split with sdi and hdmi outputs

Advertisement

Quick Links


MD-QUAD
VERSION 3
1 to 4 Channel (3G/HD/SD)-SDI
Multi-Viewer / Quad-Split
with SDI and HDMI outputs

Operating Manual for Firmware Version 2.0



Advertisement

loading
Need help?

Need help?

Do you have a question about the MD-QUAD and is the answer not in the manual?

Questions and answers

Summary of Contents for Decimator MD-QUAD

  • Page 1   MD-QUAD VERSION 3 1 to 4 Channel (3G/HD/SD)-SDI Multi-Viewer / Quad-Split with SDI and HDMI outputs   Operating Manual for Firmware Version 2.0     ...
  • Page 2 MD‐QUAD 3   FIRMWARE VERSION 2.0 SETTINGS    Please note:   MD‐QUAD 3 hardware has serial numbers starting with MQC.    The latest USB Control Software and Specifications for this product can be downloaded at:  www.decimator.com    Use the rotary to select the menu and press the button to toggle the setting.    When the settings are changed the Power LED will change to Red and change back to Green when they are  saved.    Defaults are highlighted.    For all Menu Subsets when Rotary = 0. Input Status (Button is disabled)      LED Status  LED  Description  Off  Green  Red   Orange  1  Input 1 Format Detect  None  SD  HD  3G  2  Input 2 Format Detect  None  SD  HD  3G  3  Input 3 Format Detect ...
  • Page 3 Green Green  26. 3G 1920x1080p50    Menu Subset = 0 / Rotary = 6. Multi‐View Windows  LED 1  LED 2  LED 3  LED 4  Multi‐View Windows  Off  Green  1  Green  Off  2  Green  Green  3  Off  Green  Off  Off  4                        MD‐QUAD Hardware Manual for Firmware Version 2.0    Copyright © 2014 Decimator Design Pty Ltd, Sydney, Australia  E&OE   ...
  • Page 4 Video Source 1  Off  Green  Off  Off  Video Source 2  Off  Off  Green  Off  Video Source 3  Off  Off  Off  Green  Video Source 4    Menu Subset = 0 / Rotary = 9. UMD Enable for Selected Input/s      LED Status  LED  Description  Off  Green  1  UMD Enable  Off  On  LED 2, 3 and 4 are off.            MD‐QUAD Hardware Manual for Firmware Version 2.0    Copyright © 2014 Decimator Design Pty Ltd, Sydney, Australia  E&OE   ...
  • Page 5 Green Orange  8. Square on 4:3 Mon.  Off  9. Square on 16:9 Mon.  Green  10. 5 Step Y Staircase  Red  11. 5 Step UV Staircase  Orange  12. Y Sweep  Orange Off  13. UV Sweep  Orange Green  14. Y Multiburst  Orange Red  15. UV Multiburst  Orange Orange  16. Y Ramp  Green Off  17. UV Ramp  Green Green  18. Pluge  Green Red  19. Convergence  Green Orange  20. Tartan Bars  MD‐QUAD Hardware Manual for Firmware Version 2.0    Copyright © 2014 Decimator Design Pty Ltd, Sydney, Australia  E&OE   ...
  • Page 6 Off  Orange Green  Off  53. UV Moving In C ZP  Off  Orange Green  Green  54. UV Moving Out C ZP    Menu Subset = 0 / Rotary = F. Test Pattern Enable      LED Status  LED  Description  Off  Green  1  Test Pattern  Off  On  LED 2, 3 and 4 are off.    For all Menu Subsets when Rotary = E.  Button 1 will reset all settings to their defaults.                  MD‐QUAD Hardware Manual for Firmware Version 2.0    Copyright © 2014 Decimator Design Pty Ltd, Sydney, Australia  E&OE   ...
  • Page 7 Configuration 2  LED 2, 3 and 4 are off.    Menu Subset = 1 / MENU = 7. 3G Output Level      LED Status  LED  Description  Off  Green  1  3G Output Level  A  B  LED 2, 3 and 4 are off.    Menu Subset = 1 / MENU = 8, 9, A, B, C, D & F. Reserved for future use                                    MD‐QUAD Hardware Manual for Firmware Version 2.0    Copyright © 2014 Decimator Design Pty Ltd, Sydney, Australia  E&OE   ...
  • Page 8: Service / Warranty

    Q4_PT_EN  Ground pin to enable pass‐through of input 4 to outputs.  7  QS_EN  Ground pin to enable Quad‐Split on outputs.  8  GROUND  Use as reference ground.      SERVICE WARRANTY  Decimator  Design  warrants  that  this  product  will  be  free  from  defects  in  materials  and  workmanship  for  a  period of 36 months from the date of purchase.  If this product proves to be defective within this  warranty  period, Decimator Design, at its discretion, will either repair the defective product without charge for parts and  labour, or will provide a replacement product in exchange for the defective product.    In order to service under this warranty, you the Customer, must notify Decimator Design of the defect before  the expiration of the warranty period and make suitable arrangements for the performance of service.  The  Customer shall be responsible for packaging and shipping the defective product to a designated service centre  nominated by Decimator Design, with shipping charges prepaid.  Decimator Design shall pay for the return of  the product to the Customer if the shipment is to a location within the country in which the Decimator Design  service centre is located.  The Customer shall be responsible for paying all shipping charges, insurance, duties,  taxes, and any other charges for products returned to any other location. ...
